Ender 5 Spool holder
I designed this ender 5 spool holder for my Ender 5 with direct drive extruder.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Power S.
Archivos (3)
- Ender 5 Spool holder.step STEP · 55 KB
- Ender 5 Spool End Cap.step STEP · 7 KB
- Ender 5 Spool Mounting Bracket.step STEP · 36 KB
- Categoría
- Para tu impresora
- Formatos
- STEP
- Descargas
- 7
- Publicado
Sobre este modelo
I designed this ender 5 spool holder for my Ender 5 with direct drive extruder.

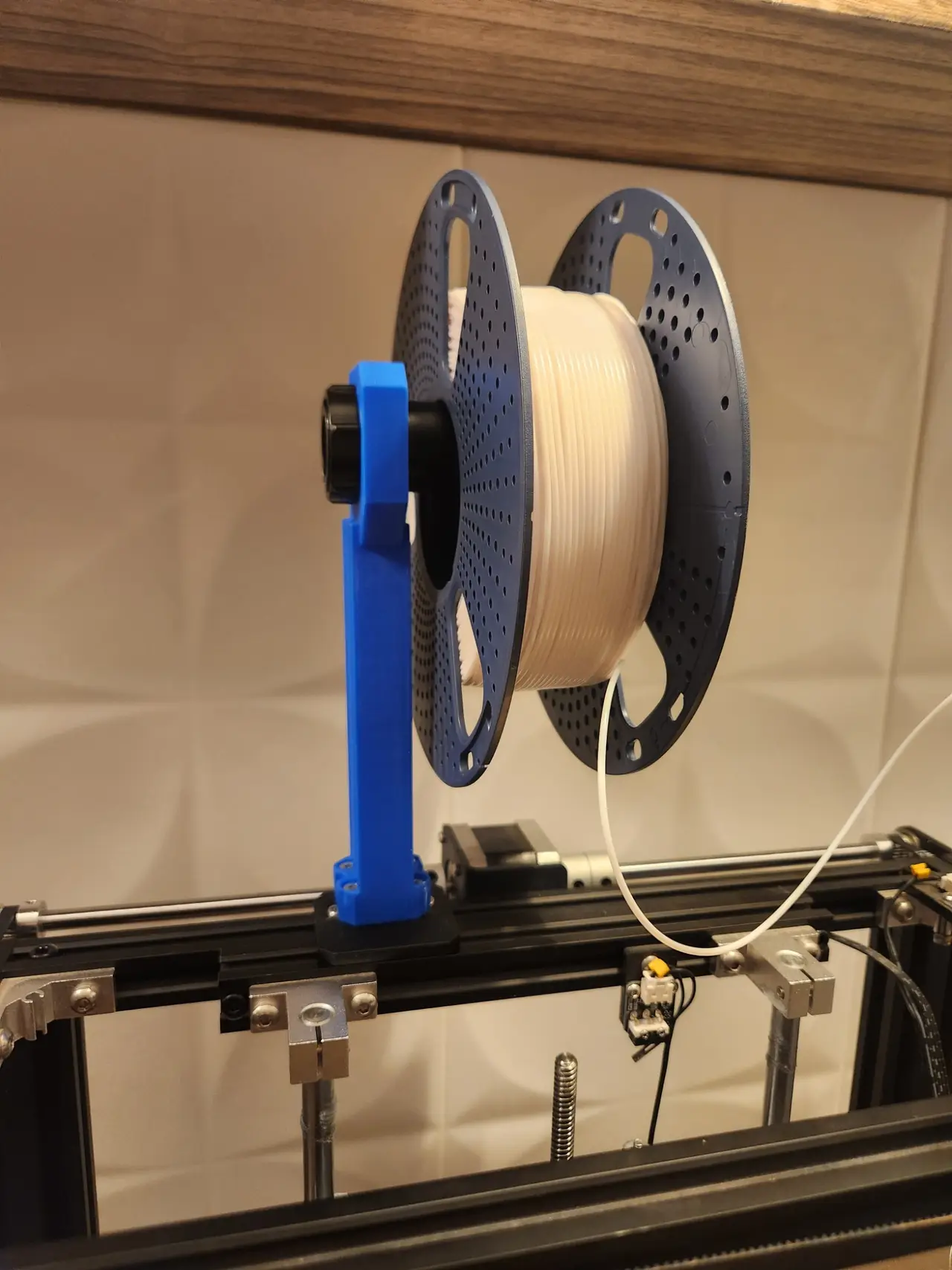

It sits in the back by the y-stepper motor and it conveniently slides into the frame so you would only need:
2 screws and 2 t nuts that already came with your original extruder. You would also need 4 size 8- ½ Robertson screws to mount the spool tower to the frame mount.
Ideally you would reuse the original roller that came with the original spool holder and the nut that tightens it.
Lastly to keep the spool from sliding off, you should print the end cap that slides nicely on to the oem roller.
This spool holder is very sturdy and it works great. Below I included files for all 3 parts separately so you can pick if you need all of it or just one of them.
Descripción original del autor, publicada en Thangs.
