Sobre este modelo
Cable Manage With Cable Chain!

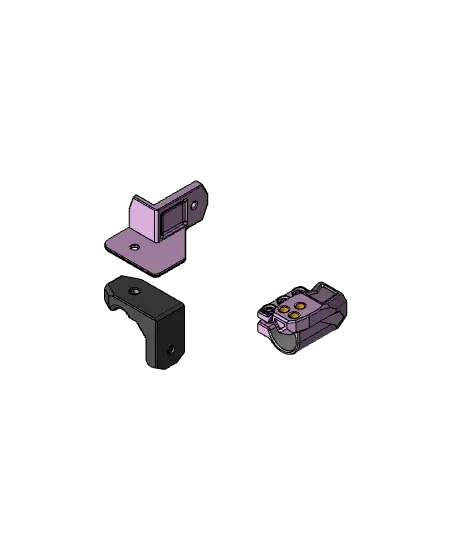

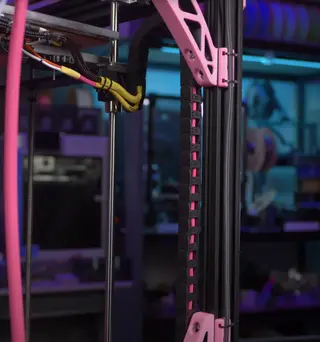

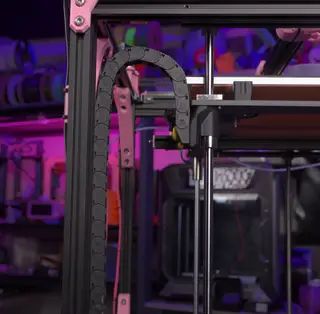

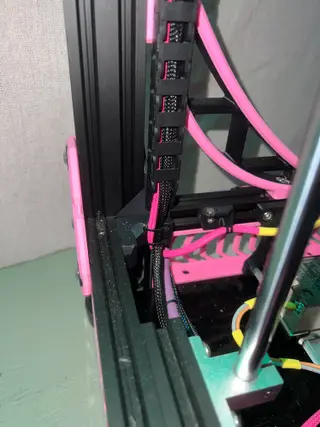

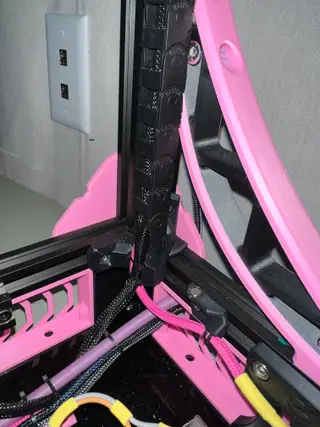

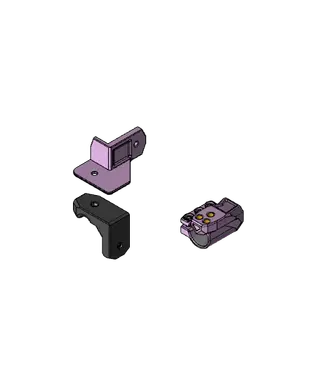

A Z-Axis Cable Chain mod for the Creality Ender 5 Plus 3D Printer! This mounts to the left rear of the bed & frame. It replaces the bottom left rear corner extrusion brace, adds a cable chain mount to the bottom, and a top cable chain mount to the left rear Z-rod bearing. See my use in this video: https://youtu.be/kmMW6_7lrlQ?si=NkQHFQcFIsNI15lt
Designed for use my Zero-G Mercury One.1 Core-XY conversion with fully custom electronics. I CANNOT guarantee this will work at all with a stock configuration. You will absolutely have to extend your bed wiring if you attempt to use this on a stock machine. MAY fit an Ender 5 Pro, again I only tested on my Ender 5 Plus.
Design uses M3 Heat Press Inserts to mount the cable chains with countersunk screws. --------------------------------------------------------------- Parts Needed (Affiliate Links): - M3 Countersunk Screws (https://amzn.to/4aulWuD) - M3 Heat Press Inserts (https://amzn.to/4ctzf0o) - Cable Chain (https://amzn.to/4993kiL) - Fabreeko Mercury One.1 Kit (https://www.fabreeko.com/products/mercury-one-kit?variant=42031744614655) - Polymaker Filament (https://tinyurl.com/Polymakerr) --------------------------------------------------------------- Files Included: - Ender 5 Plus Z Cable Chain Mod STEP - Z Chain Mount Top STL - Z Chain Mount Bottom STL - Corner Brace Replacement STL (Necessary for Mod) --------------------------------------------------------------- Recommended Print Settings: - .2 Layer Height On All Layers - 4+ Perimeters - 40% Infill - No Supports Required - ASA/ABS Filament recommeneded. --------------------------------------------------------------- Want to Support what I do? Check out my social medias please!
