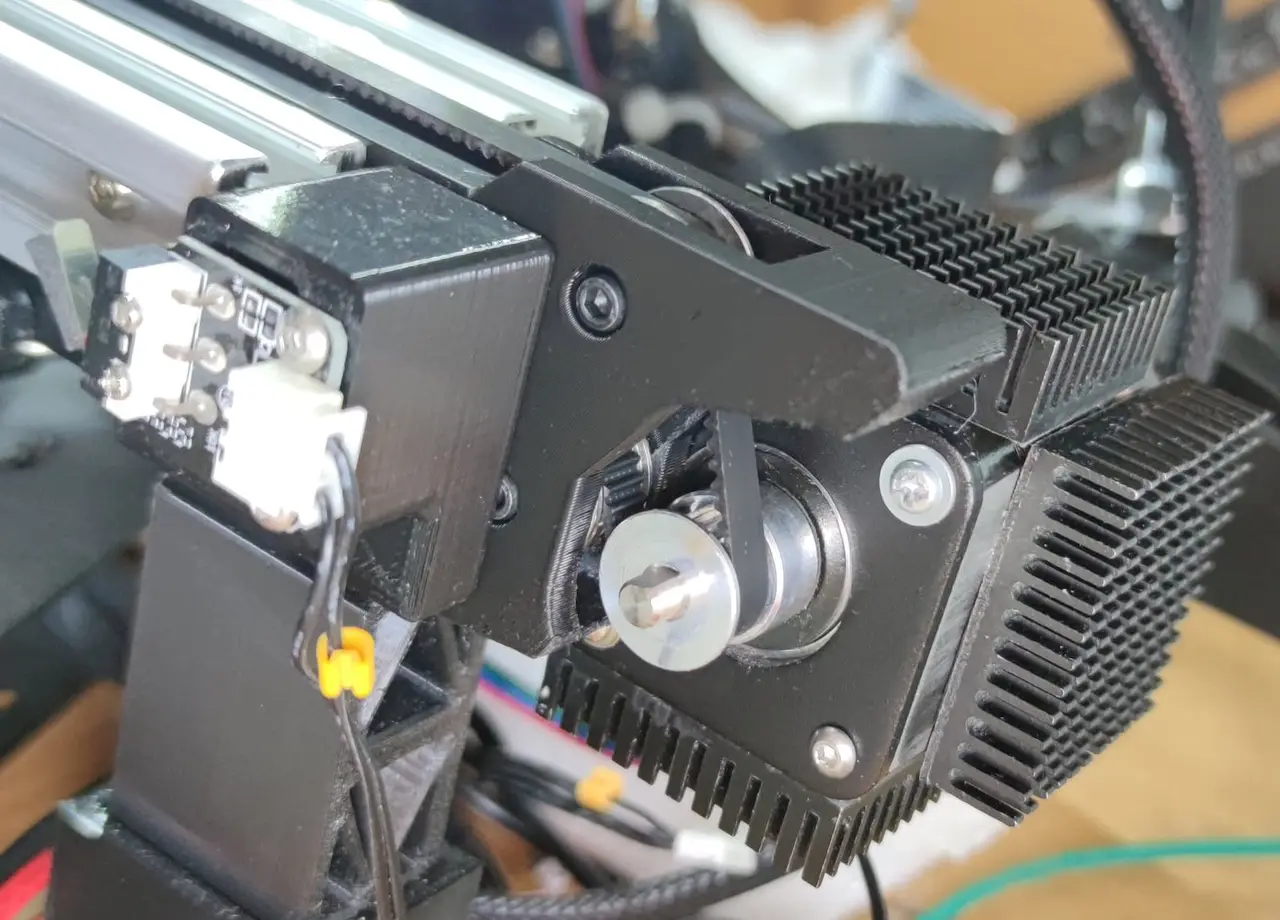

Ender 3 Y-Axis Motor Relocation – Reinforced Idler Mount (16T/20T) [back]
por Henryk Rombel en Thingiverse
Reinforced modification of the original Ender 3 Y-Axis Idler Assembly for Motor Relocation. Both sides of the mount are merged into a single structure for improved rigidity and overall stability. Two versions available: back_side_2_pulley_16T.stl – for a smooth 16T idler pulley (3 mm bore)...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Henryk Rombel.
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 5
- Publicado
Sobre este modelo

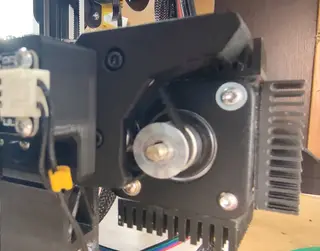

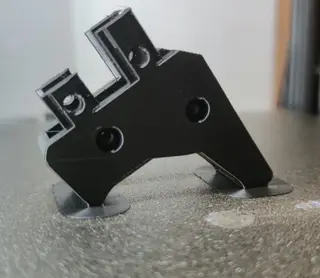

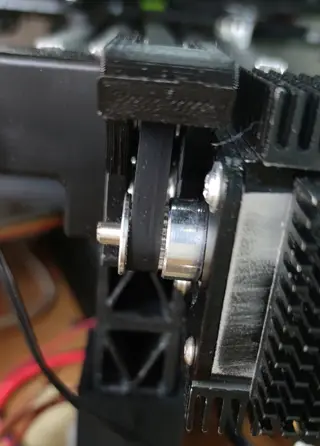

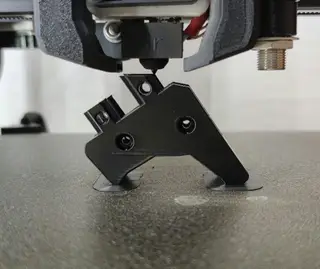

Reinforced modification of the original Ender 3 Y-Axis Idler Assembly for Motor Relocation. Both sides of the mount are merged into a single structure for improved rigidity and overall stability. Two versions available: back_side_2_pulley_16T.stl – for a smooth 16T idler pulley (3 mm bore). back_side_2_pulley_20T.stl – for a 20T idler pulley (3 mm bore). Important: A new, longer GT2 Y-axis belt is required. The model is designed to print without supports (zero waste). However, you can add supports if preferred. Recommended print orientation is shown in the attached images. X-axis left-side mod: Original: https://www.thingiverse.com/thing:3668847 My modification: https://www.thingiverse.com/thing:7416986 X-axis right-side mod: Original: https://www.printables.com/model/548048-minimalist-ender-3-x-axis-tensioner-belt-alignment My modification: https://www.printables.com/model/1862050-minimalist-ender-3-x-axis-tensioner-belt-alignment Y-Axis front-side mod: https://www.printables.com/model/1862123-minimalist-ender-3-y-axis-belt-tensioner-front
Descripción original del autor, publicada en Thingiverse.
