Ender 3 V3 SE 25-40mm fan bracket - Low profile — modelo 3D

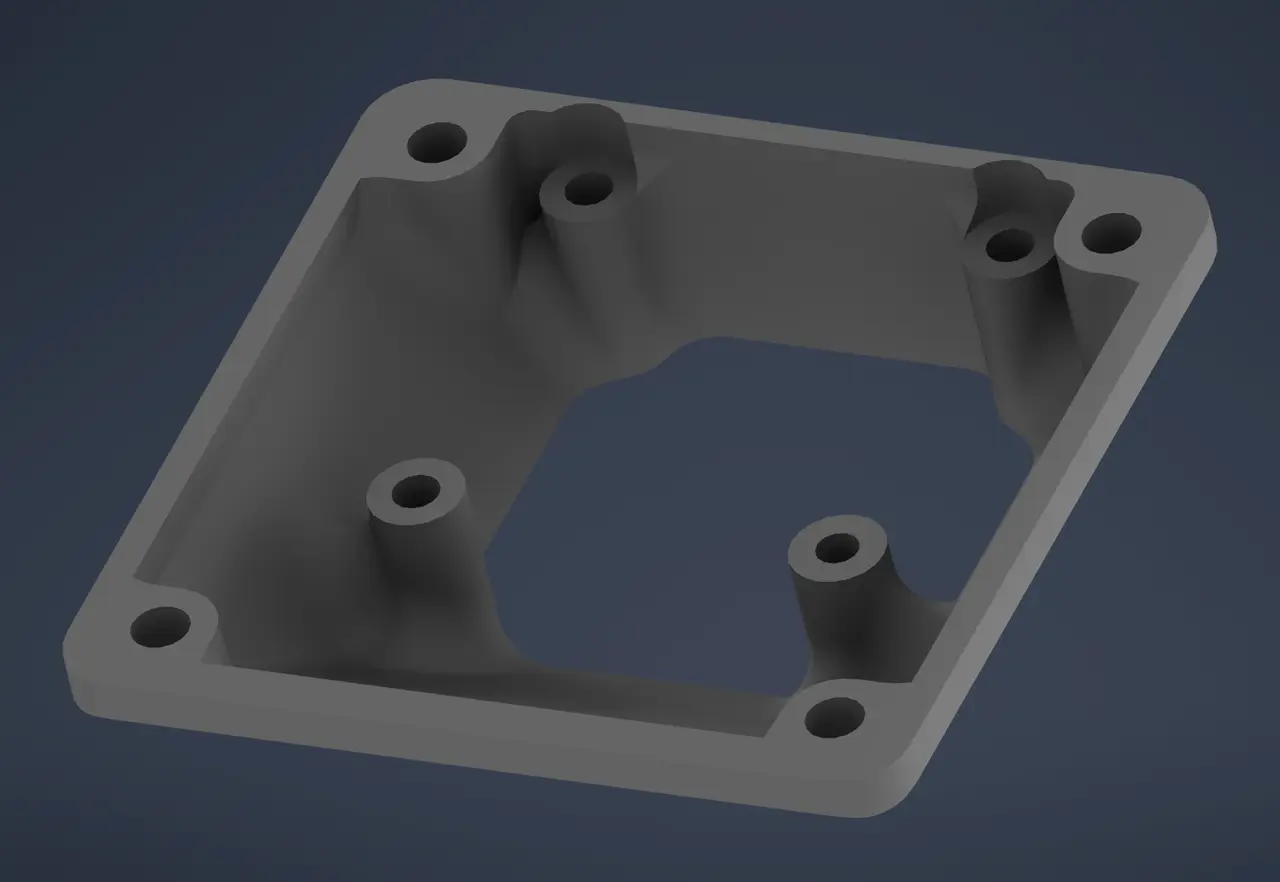

Ender 3 V3 SE 25-40mm fan bracket - Low profile

por KILLbabylon en Printables

It allows mounting 40mm fan in place of 25mm fan

Descargar gratis Ver en Printables

Todos los archivos (4) en un ZIP

Licencia

Uso comercial permitido

CC BY 4.0 — Atribución

Puedes imprimirlo, modificarlo y venderlo dando crédito al autor.

Al descargar aceptas respetar la licencia y dar crédito a KILLbabylon.

Archivos (4)
Categoría
Para tu impresora
Formatos
STL
Descargas
6,199
Publicado

Sobre este modelo

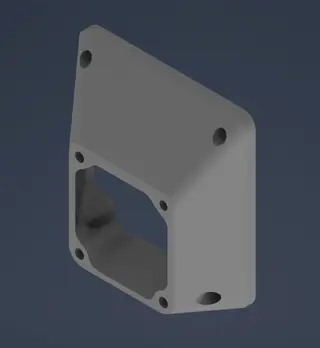

Hello, I've created a low-profile bracket for this annoying 25mm fan. This is the second version of the bracket. I'm sharing the model now because I finally received new fans and was able to properly test its performance and it works as intended. The bracket attaches to the radiator using the original screws, while the fan is secured with bolts. The hole for 40mm fan is 2.7mm in diameter and is designed for various bolt lengths. Printed without supports Layer width .3mm Material: PETG It's recommended to use a skirt for better adhesion. The orientation is correctly included in the model (print flat on the side with radiator mounting)

Descripción original del autor, publicada en Printables.
