Ender 3 V2 Body Kit | Lowk Body Kit | Ender 3 V2 Upgrades | Ender 3 V2 Shroud |Ender 3 V2 Hot End | Ender 3 V2 Accessories
por Lowk en MyMiniFactory
Here Is the Lowk Body Kit designed for your Ender 3 V2
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Lowk.
Archivos (18)
- Lowk Body Kit Lower Half Lowk Back Left.stl STL
- Lowk Body Kit Lower Half Lowk Back Right Dual Z.stl STL
- Lowk Body Kit Lower Half Lowk Back Right.stl STL
- Lowk Body Kit Lower Half Lowk Center Sides.stl STL
- Lowk Body Kit Lower Half Lowk Front Center V2.Stl STL
- Lowk Body Kit Lower Half Lowk Front Left.stl STL
- Lowk Body Kit Lower Half Lowk Front Legs X2.Stl STL
- Lowk Body Kit Lower Half Lowk Front Right.stl STL
- Lowk Body Kit Lower Half Lowk Half Pin Copy.stl STL
- Lowk Body Kit Lower Half Lowk Pin.stl STL
- Lowk Body Kit Lower Half Lowk Rear Legs X2.Stl STL
- Lowk Body Kit Lower Half Lowk Y Belt Tensioner.stl STL
- Lowk Body Kit Lower Half Lowkhandle.stl STL
- Lowk Body Kit Upper Half Lowk Half Pin.stl STL
- Lowk Body Kit Upper Half Lowk Header Connector.stl STL
- Lowk Body Kit Upper Half Lowk Header.stl STL
- Lowk Body Kit Upper Half Lowk X Axis Plate.stl STL
- Lowk Body Kit Upper Half Lowk X Belt Tensioner.stl STL
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 248
- Publicado
Sobre este modelo

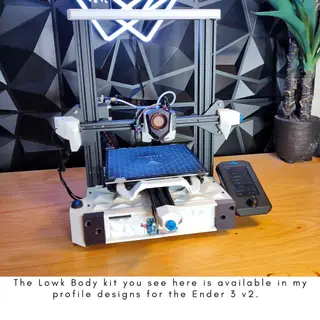

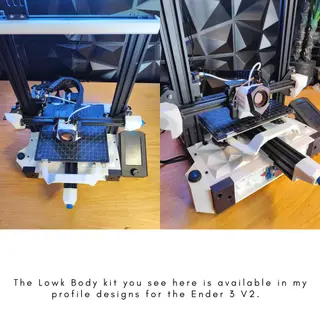

Here Is the Lowk Body Kit designed for your Ender 3 V2
I am very cosmetically inclined for the environment that I am in. I am surrounded by Ender 3 V2s in my office and I wanted to see if I can find a way to make them look cooler, rather than be surrounded by a bunch of black machines. After searching for something already made and not finding anything I took it upon my self to design a body kit that mirrored both my style and my environment.
If you are like me and want your machine to look cool than this is definitely for you.
This Pack Includes: Top Bar Cover with Connecting Piece and 2 Half Pins X-Axis Plate X-Belt Tensioner Bed Handle Y-Belt Tensioner 4 Plates to cover the base 1 Compatible Plate for Dual Z 2 Center Plates to cover the front 2 Sides Holding the Center Plates with 2 Half Pins and 2 Full Pins 2 Front extended Legs 2 Rear Extended Legs
You will need 8 m3 screws that are a minimum of 10mm long and 8 t-nuts to go along with them to fasten the plates to the printer frame. The X axis Plate cover that holds the sensor will need new m3 screws since the stock screws that were there, are way too long. The M3 kit I used is listed at the bottom is good for the body kit as well as replacement screws for the printer because the stock screws suck and strip easily.
Check Urls at the bottom for both T Nuts and M3 Screw Kit

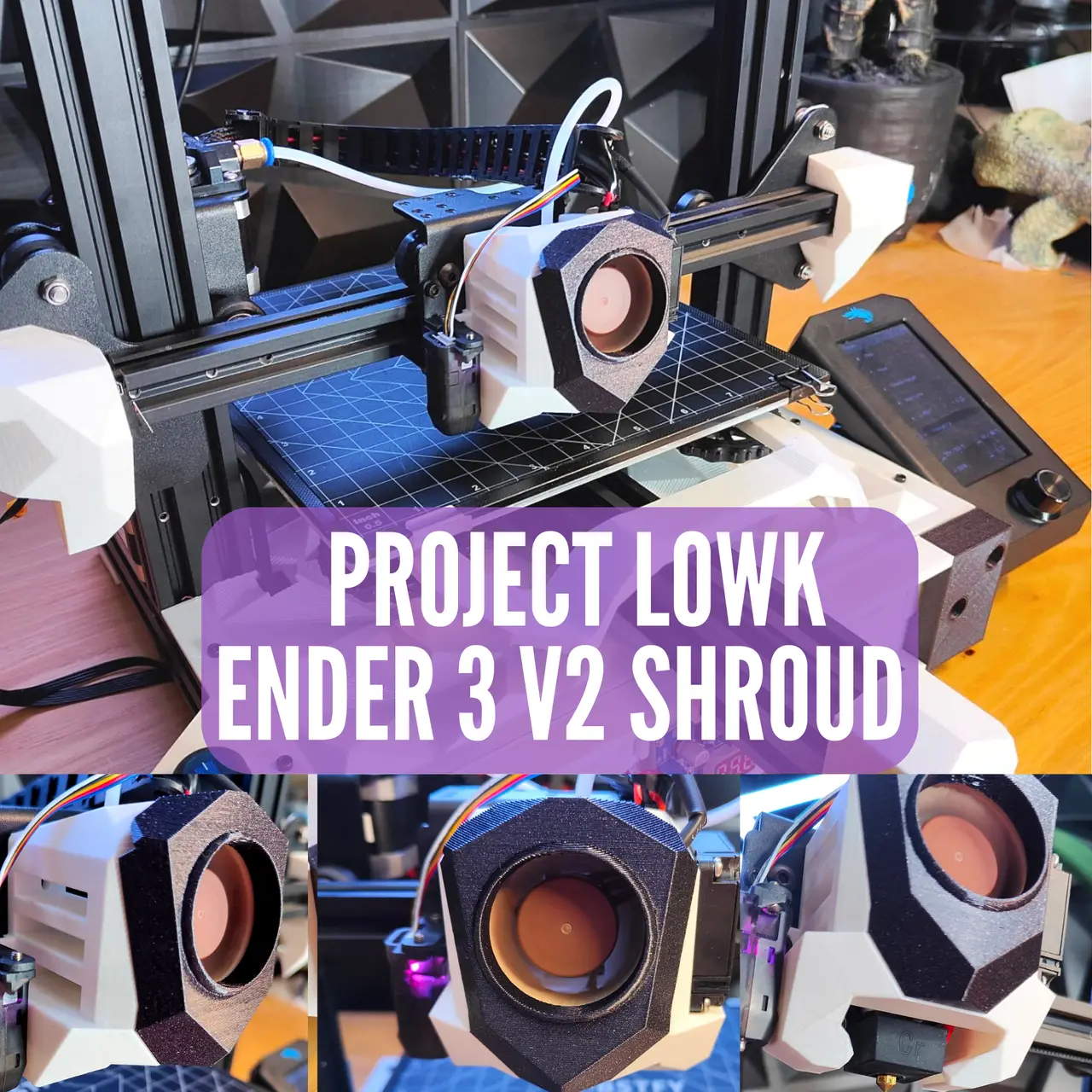

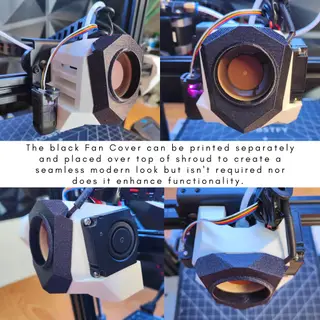

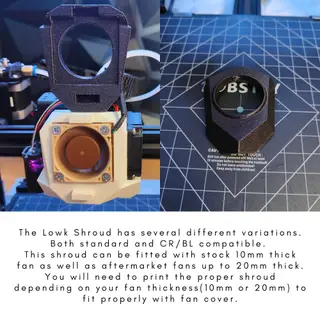

The Shroud is not in this pack and is up for free on my page. I have listed the settings I use for speed since there is quite a bit of pieces to print. Everything in the pictures listed are at settings listed
** If you bring down the nozzle to touch the build plate and it cant reach because the X Belt Tensioner is hitting the back of the screen simply loosen screen mount screws and pull screen forward and then tighten. **
M3 Screw Kit : https://www.amazon.com/Metric-Screws-Suitable-Printer-Assortment/dp/B0B51BFSWZ/ref=sr_1_2_sspa?crid=1WUCO5GY1CF8R&keywords=m3+screw&qid=1686800848&sprefix=m3+%2Caps%2C484&sr=8-2-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUEyQkdRMDdOUDdWRzVSJmVuY3J5cHRlZElkPUEwOTYxOTQ5V1RDR1FSUVZGM1ZHJmVuY3J5cHRlZEFkSWQ9QTA3MTY5MjQzMUNUUThUMVkzNE0md2lkZ2V0TmFtZT1zcF9hdGYmYWN0aW9uPWNsaWNrUmVkaXJlY3QmZG9Ob3RMb2dDbGljaz10cnVl
T Nuts: https://www.amazon.com/Powlankou-Pieces-Fastener-Aluminum-Profile/dp/B07SDFCTD4/ref=sr_1_13?crid=2EIEXT5CI15VT&keywords=m3+screw+t+nut&qid=1686807063&sprefix=m3+screw+t+nu%2Caps%2C703&sr=8-13
