Ender 3 Cable Chain
por piriyapong chulasuwan en Thingiverse
Update [10:53 PM 2018-06-16] - Added parts assembly guide image - cableChain_link_v3.stl Not constraint hinge to 1 direction anymore (But v2 still work fine) 15 links for heatbed, 10-15 links for gantry. - cableChain_bedCorner_v2.stl (and Cover) Easier Snap assembly and disassembly...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a piriyapong chulasuwan.
Archivos (13)
- cableChain_link_v2.stl STL · 106 KB
- cableChain_link_v3.stl STL · 102 KB
- cableChain_linkCover_v2.stl STL · 6 KB
- cableChain_40MountTop.stl STL · 74 KB
- cableChain_40MountTop_v2.stl STL · 73 KB
- cableChain_40MountSide.stl STL · 42 KB
- cableChain_40MountSide_v2.stl STL · 43 KB
- cableChain_plateMount_v2.stl STL · 76 KB
- cableChain_bedCorner.stl STL · 291 KB
- cableChain_bedCorner_v2.stl STL · 229 KB
- cableChain_bedCornerCover_v2.stl STL · 70 KB
- cableChain_Xend.stl STL · 54 KB
- cableChain_XendCover.stl STL · 31 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 814,414
- Publicado
Sobre este modelo

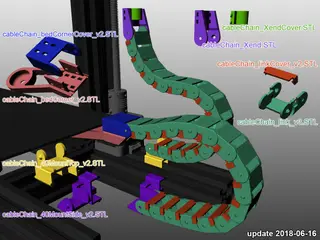

Update [10:53 PM 2018-06-16] - Added parts assembly guide image
- cableChain_link_v3.stl Not constraint hinge to 1 direction anymore (But v2 still work fine) 15 links for heatbed, 10-15 links for gantry.
- cableChain_bedCorner_v2.stl (and Cover) Easier Snap assembly and disassembly
- cableChain_40MountTop_v2.stl Better hinge rotation range for tall print
- cableChain_40MountSide_v2.stl Offset more to better align with heatbed mount
================================================================ Update [1:54 AM 2018-06-11] Added Improved version - cableChain_link_v2.stl << Main chain body - cableChain_linkCover_v2.stl << Chain part
- cableChain_plateMount_v2.stl << Snap fit to that black 'Bed Wiring Mount' stock part
New Parts - cableChain_bedCorner.stl << Replace that black 'Bed Wiring Mount' stock part

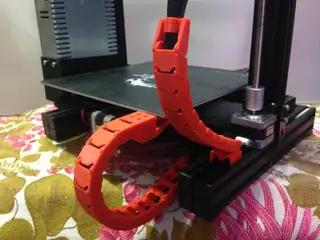

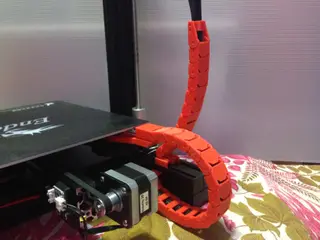

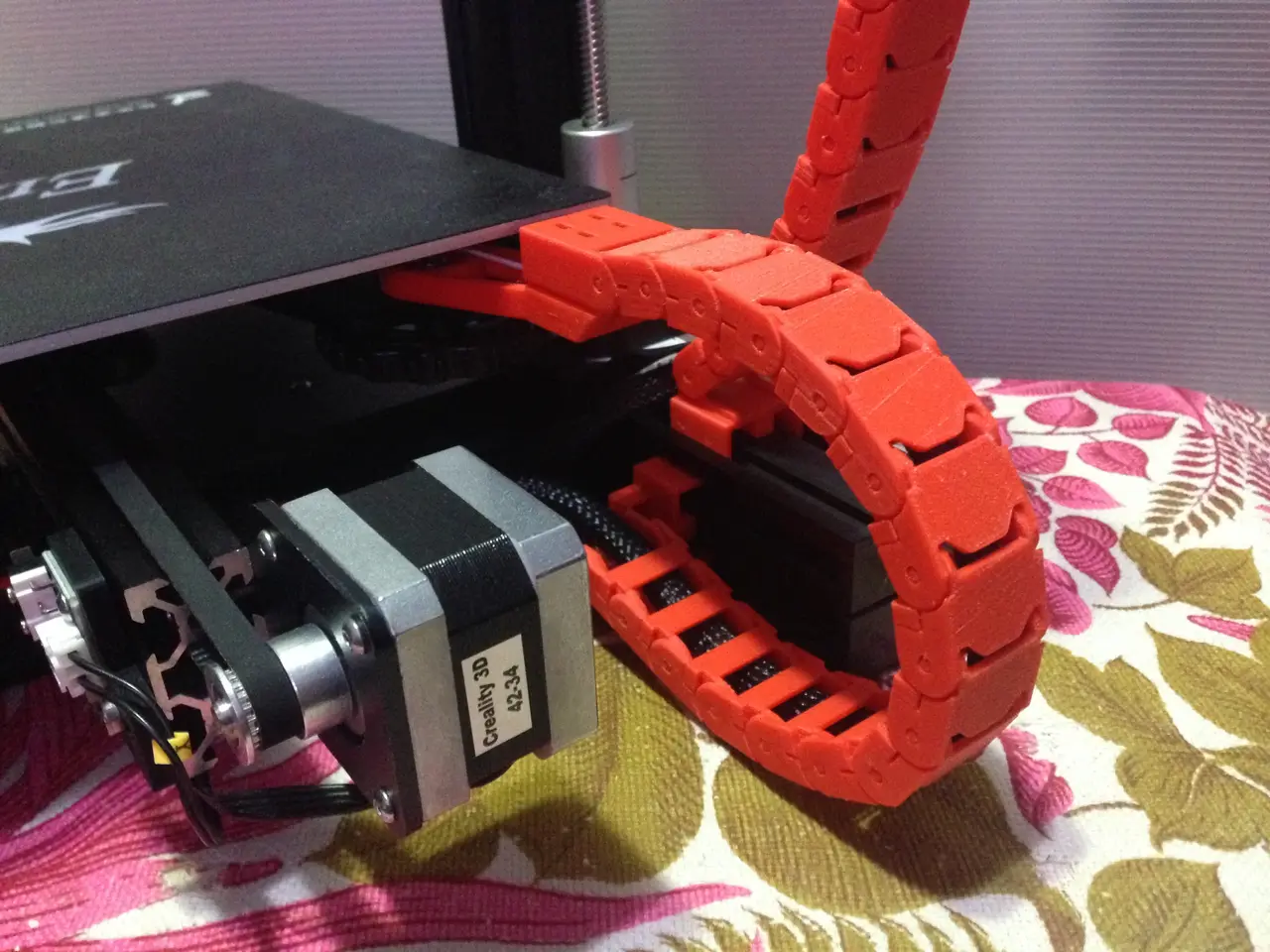

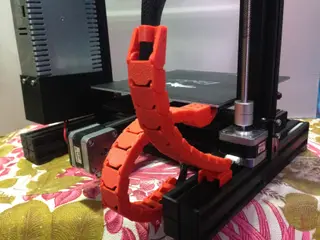

================================================================ Ender 3 Cable Chain - For Creality Ender 3 rear cable. - Keep it Neat and Cool. - Snap design. No need screw or nut. - Print without support.
15 Links for Heatbed. 10 Links (or more) for X gantry. Please Share Your MAKE, Thank you. [10:07 PM 2018-05-19]
Descripción original del autor, publicada en Thingiverse.
