Enclosure for A1 Mini

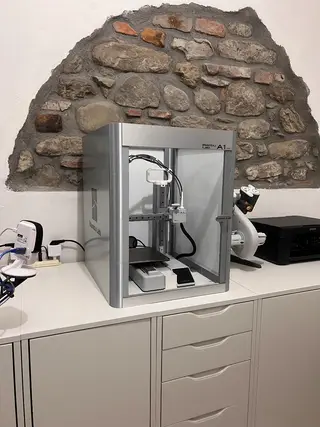

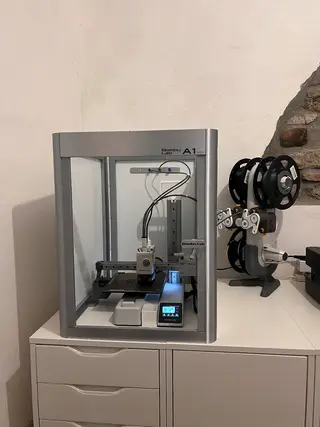

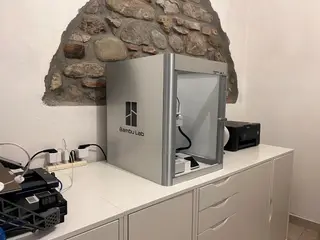

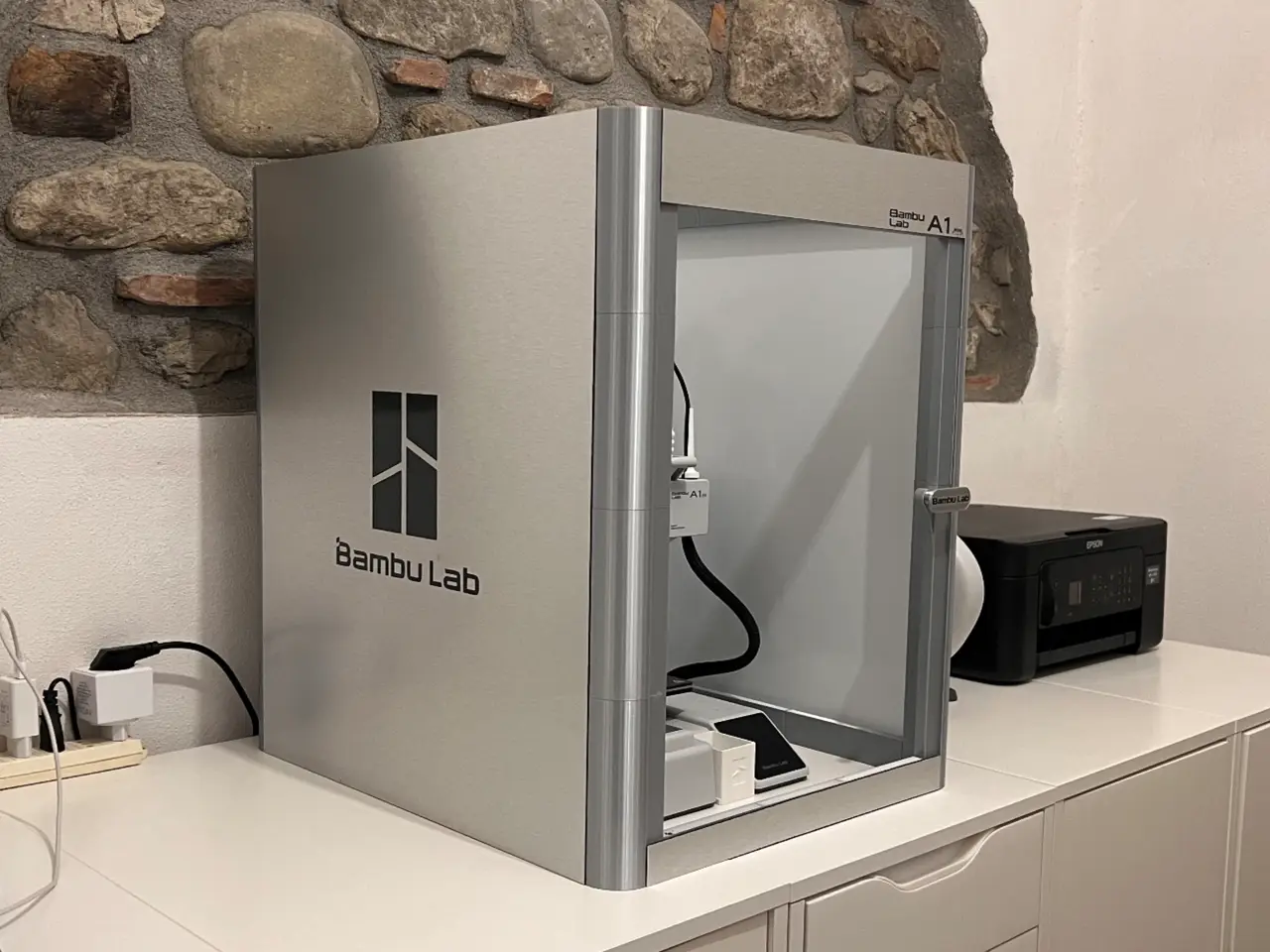

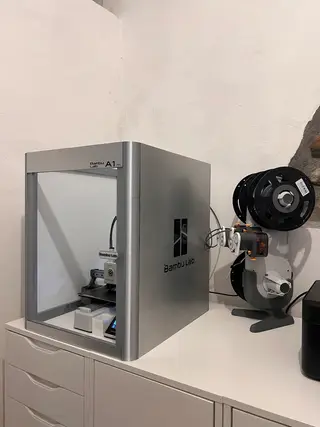

I love the X1C design, so I wanted to create a similar enclosure for my A1 Mini.

Premise, I know that the A1 Mini is not created to work in an enclosure etc, but I closed it only whene the print is out of service to protect from dust etc and for only my estetical pleasure, when it works I keep the door and the roof open.

The project currently is about just the enclosure and not of AMS and its management, an update will follow that will only touch the rear panel to incorporate the PTFE from AMS.(I must verify some parameters befer to release that).

The mounting of chassis is easy, all are interlocking peaces and their fixing is renforced by glue, below what I used:

For the panneling, I used the 3mm Dibond material below an example photo,

I cut it of the mausere needed, I prefer don't say the measure, when you glued all peaces of chassis, is better that you take the meause alone to cover better the dettail, below a picture of all cover needed.

while for the roof and the door I use a policarbonato always of 3 mm also it cutted after the chaissis is glued, to have more dettailed measure.

in the end for the door hinges I used a Pin like in the photo belw (usually used for shelves) diameter 5 mm and for the handle a magnet of 10 mm diameter.

following many request I add the measure of the pannels:

- two lateral panels are 530x440 mm

- back panel is 530x360 mm

- top plexi panel is482x400 mm

- plexi door is 440x320 mm

Anyway I suggest that when you glued all pieces of chassis, you take the measure alone to cover better the detail.
