Emergency Whistle, Dual Frequency
por Jorgen Nyqvist en Thingiverse
CCR10SPRO_emergency_whistle_dual_tone-ver3_fixed ¤ Length 47,9 mm, Height 11,2 mm, Width 16,9 mm. weight 5 grams Material: PETG (highly recommended for outdoor durability and impact resistance) Emergency Whistle, Dual Frequency emergency_whistle_dual_tone-ver3_fixed. After inspecting the design, I..
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Jorgen Nyqvist.
- Categoría
- Jardín
- Formatos
- STL
- Descargas
- 6
- Publicado
Sobre este modelo

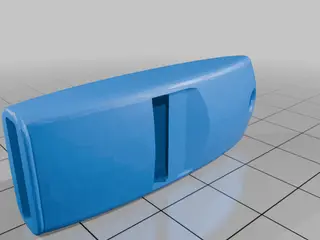

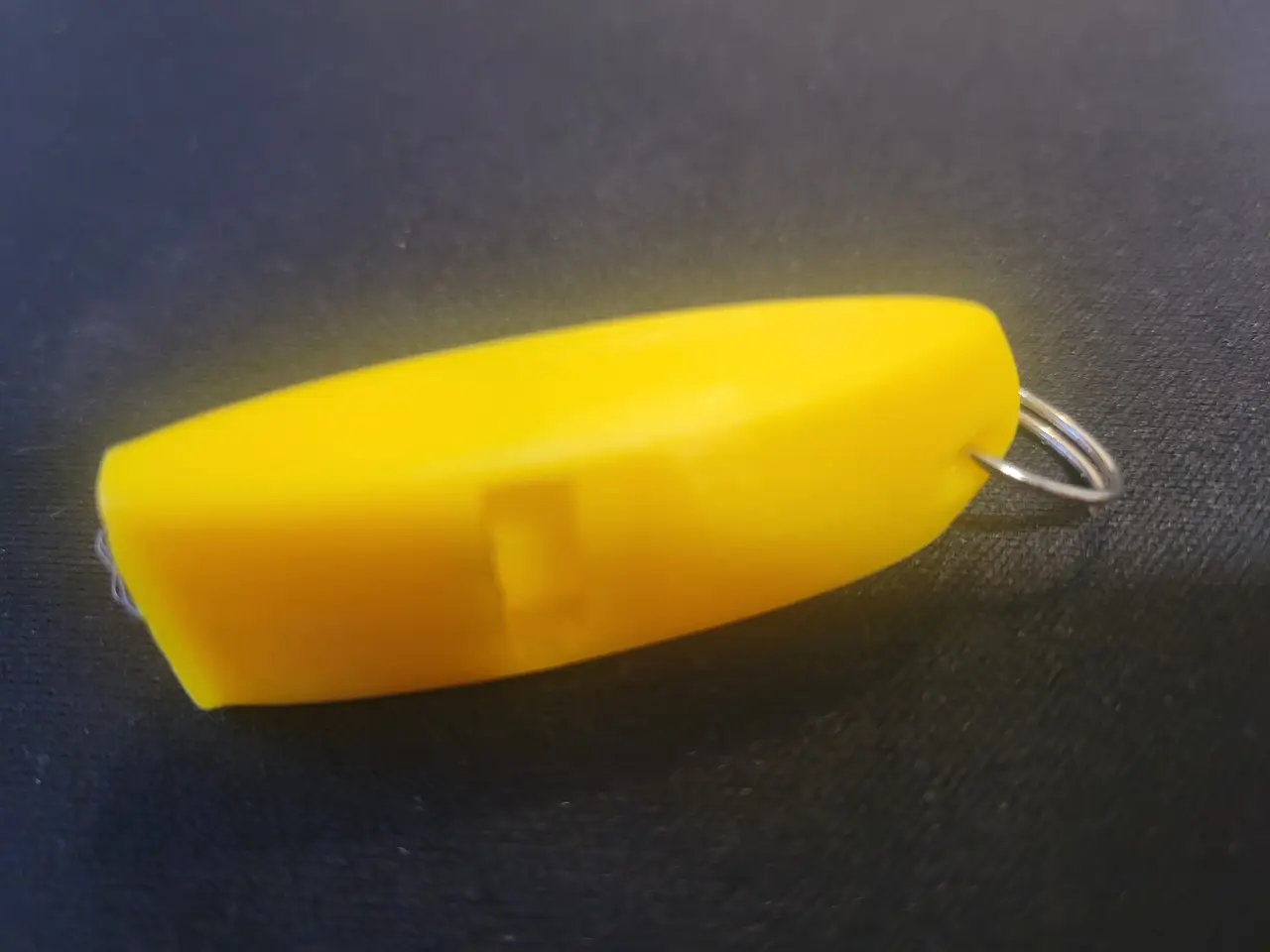

CCR10SPRO_emergency_whistle_dual_tone-ver3_fixed ¤ Length 47,9 mm, Height 11,2 mm, Width 16,9 mm. weight 5 grams Material: PETG (highly recommended for outdoor durability and impact resistance) Emergency Whistle, Dual Frequency emergency_whistle_dual_tone-ver3_fixed. After inspecting the design, I noticed that the original labium (the splitting edge/triangle) was too blunt, which prevented the airflow from splitting correctly to create a whistle tone. To fix this, I remodeled the geometry and designed a brand new, sharp labium triangle from scratch.With this new modification, the air splits perfectly, and the dual whistle is now functional , Extremely loud and compact. Recommended Print Settings: ¤ Material: PETG (highly recommended for outdoor durability and impact resistance) ¤ Layer Height: 0.12mm - 0.20mm (smoother internal walls improve airflow and sound quality) ¤ Wall Line Count / Perimeters: 3 or 4 (Crucial! The whistle must be 100% airtight to reach full volume) ¤ Infill: 40% - 100% This is a Remix:
Descripción original del autor, publicada en Thingiverse.
