Elegoo Centauri Carbon - Side panel protector - Spool "dragging" along side panel
por Bas en Printables

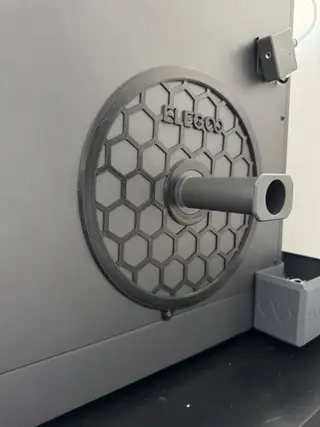

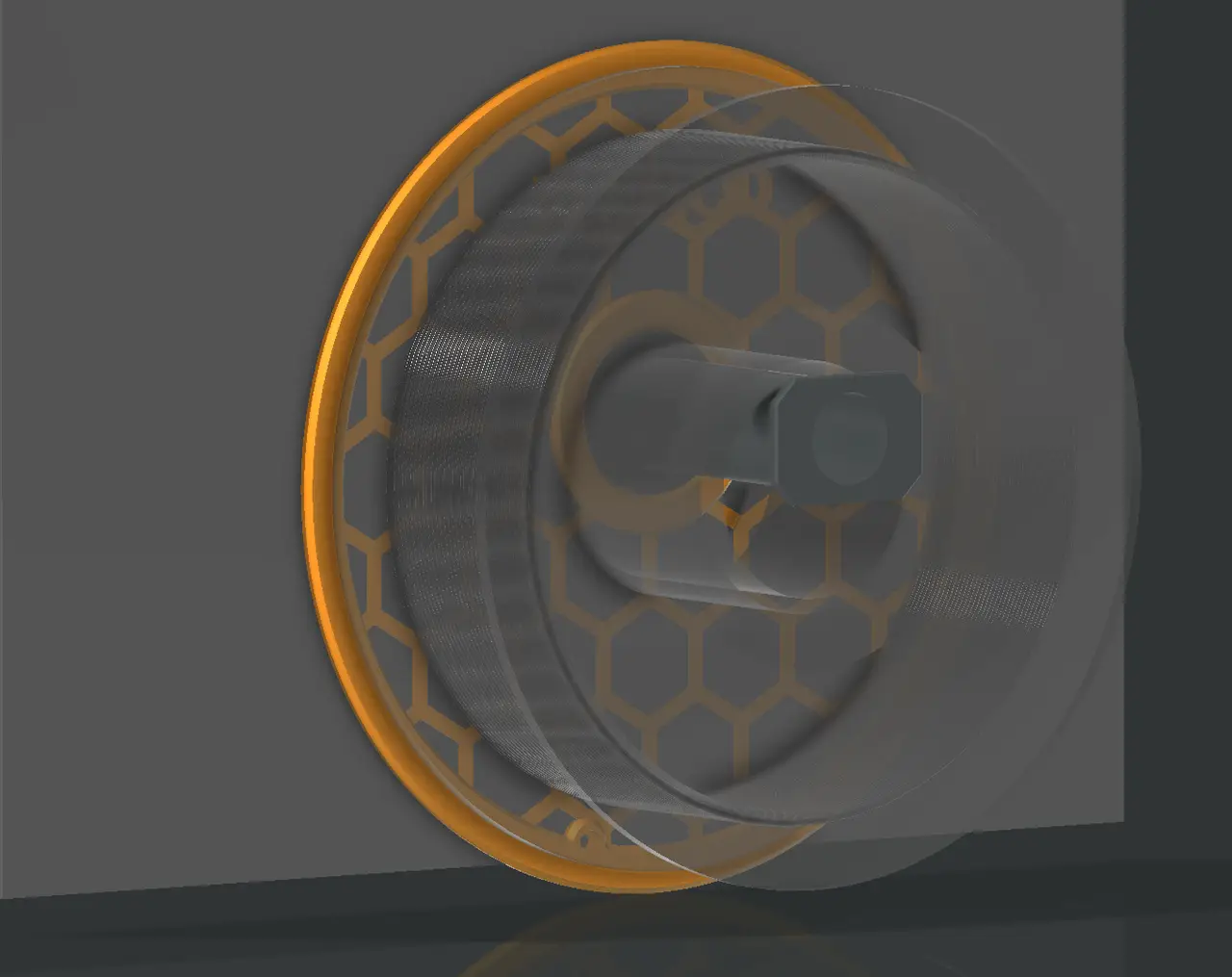

Panel protector for the side panel / spool holder of the Elegoo Centauri Carbon.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Bas.
Archivos (8)
- ecc_protector_spool_v2_offset_holder.stl STL · 1,2 MB
- ecc_protector_spool_v2_offset_holder_NO_LOGO.stl STL · 13,1 MB
- ecc_protector_spool_v1_magnetic.stl STL · 1,2 MB
- ecc_protector_spool_v0_centered_holder.stl STL · 1,1 MB
- ecc_protector_spool_v2_offset_holder_no_logo_3-6mm_magnets.stl STL · 13,1 MB
- PROTO_ecc_protector_spool_v1_internal_magnetic.stl STL · 1,1 MB
- PROTO_ecc_protector_spool_v1_internal_magnetic_no_logo.stl STL · 744 KB
- ecc_protector_spool.3mf 3MF · 924 KB
- Categoría
- Para tu impresora
- Formatos
- STL, 3MF
- Descargas
- 10,620
- Publicado
Sobre este modelo

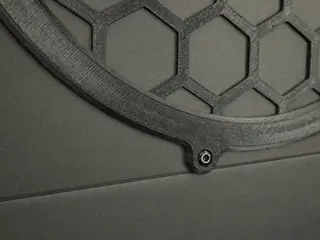

All variant have holes for magnets 1,5x⌀10mm or you can use 2.0x⌀10mm, except for the 3x⌀6mm model.
Update 12-09-2025 - Added internal model !! Prototype !! Magnetic version to be used inside, if you want to use the internal spool holder + side panel spacers With & Without logo.
Update 21-07-2025 - Added model Offset to holder version also available without the logo and for 3x6mm magnets. Overal thickness of thickest parts is increased from 3.0 > 3.6mm in order to cover the 3mm thick magnets.
Update 23-06-2025 - Added models Offset to holder version also available without the logo.

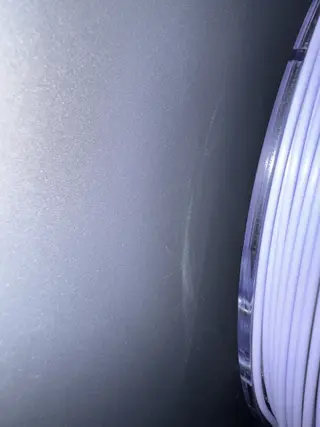

Original After about 100 hours of printing, I started to notice some marks on the side panel due to the spool dragging along it. Some plastic particles could be washed away, but the first scratches on the side panel are there. Hereby some side panel protector variants, depending on the alignment you like.
