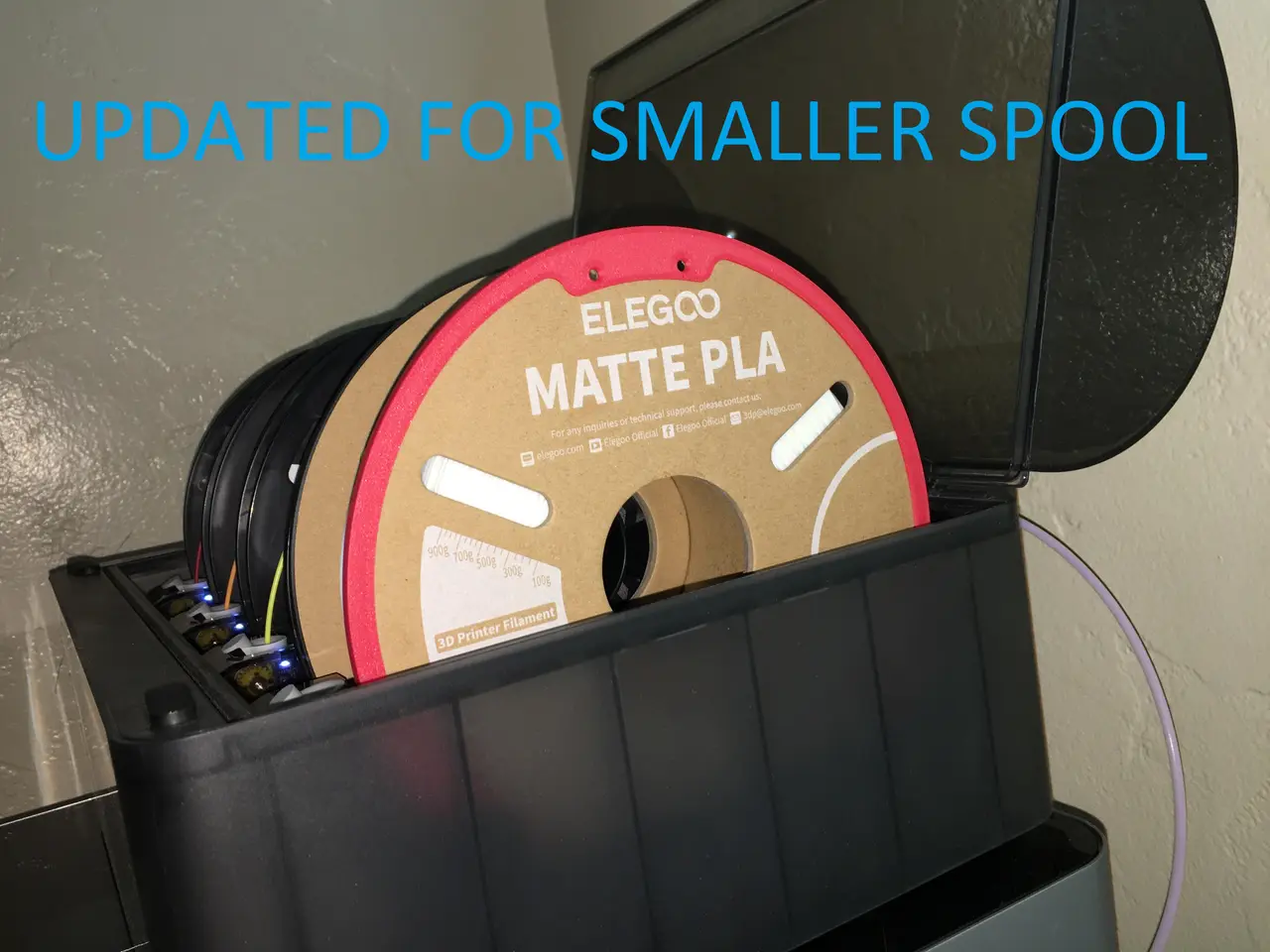

Elegoo Cardboard Spool Adapter Ring For Bambu Lab AMS System
por PEZ3D en Printables
Snap on ring for cardboard spool to allow AMS system to operate correctly.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a PEZ3D.
Archivos (13)
- elegoo bambu spool adapter Latest For Smaller Roll.stl STL · 25,8 MB
- elegoo bambu spool adapter Latest For Smaller Roll.3mf 3MF · 7,8 MB
- elegoo bambu spool adapter Latest For Smaller Roll.step STEP · 583 KB
- elegoo bambu spool adapter modified v50 SLIM SHORT STUDS.step STEP · 411 KB
- elegoo bambu spool adapter modified v50 SLIM SHORT STUDS.3mf 3MF · 7,6 MB
- elegoo bambu spool adapter modified v50 SLIM SHORT STUDS.stl STL · 25,4 MB
- elegoo bambu spool adapter modified v48 SLIM.step STEP · 194 KB
- elegoo bambu spool adapter modified v48 SLIM.3mf 3MF · 12,5 MB
- elegoo bambu spool adapter modified v48 SLIM.stl STL · 41,6 MB
- elegoo bambu spool adapter modified v41.step STEP · 232 KB
- elegoo bambu spool adapter modified v41.3mf 3MF · 12,5 MB
- elegoo bambu spool adapter modified v41.stl STL · 41,6 MB
- Hole and Contour Compensation Test 5mm ID 10mm OD.3mf 3MF · 188 KB
- Categoría
- Para tu impresora
- Formatos
- STL, 3MF, STEP
- Descargas
- 4,764
- Publicado
Sobre este modelo
Use Arachne wall generator or your walls till be too thin and split.
If you have issues with the ring being too tight on the spool, you should print the test print I included to measure the hole and contour accuracy of your printer/slicer. You may need to print the test print I included, and then you can adjust your Hole and Contour X-Y compensation. I set both the Hole and Contour compensation to 0.1mm which is true to size for my machine.

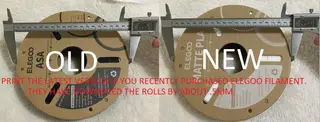

The original ring was too large and would not allow the AMS lid to close, so I reduced the diameter so it would fit. The AMS system only accepts 190mm - 202mm in diameter, so it was 1mm big. I also noticed the studs were slightly off and was pressing against the cardboard spool holes. Additionally, I added a small lip on the outer ring so it will snap into place as you run your thumbs around the outer edge.
Descripción original del autor, publicada en Printables.
