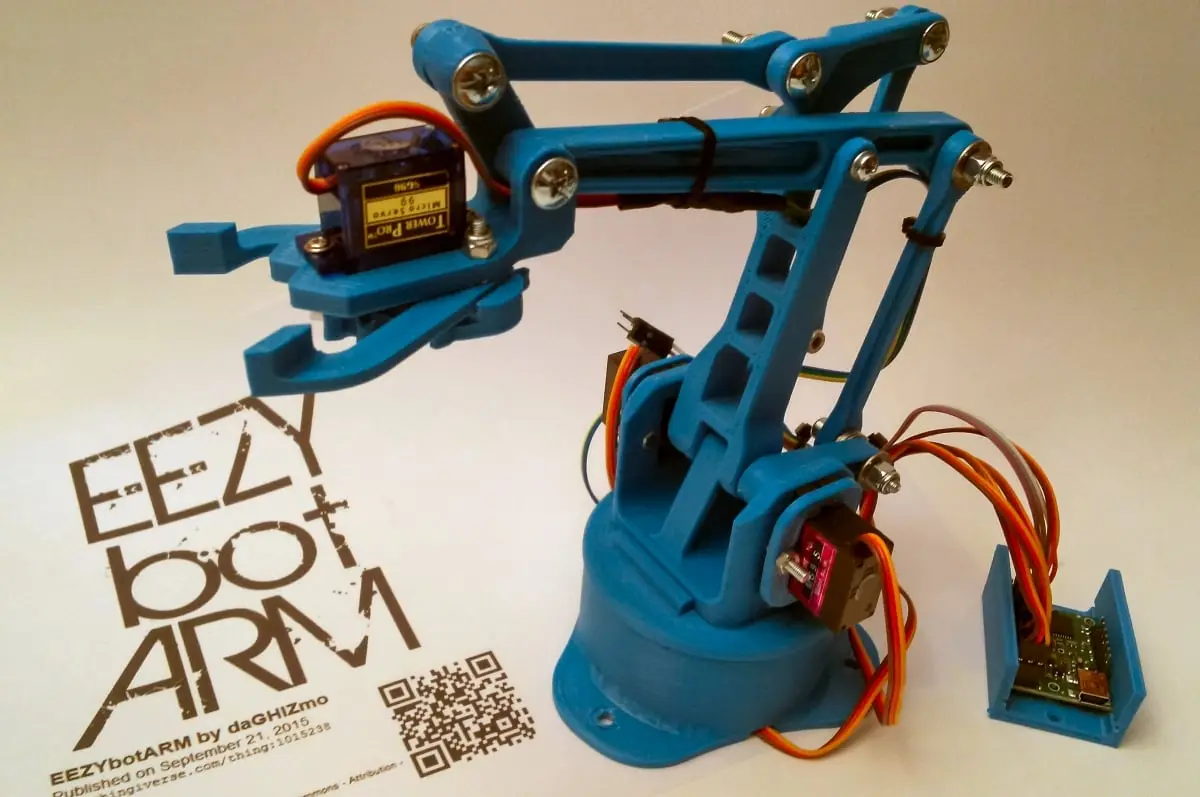

EEZYbotARM
por Carlo Franciscone en Thingiverse
This is a 3D printed robotic arm The intent was to design something "easy" and cheap to built with a good visual impact also. Test video: https://youtu.be/qovZKW0DxWk https://youtu.be/N55W8TdMfCo I spent time to look around the web at some examples available that could be a good starting from, and..
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Carlo Franciscone.
Archivos (17)
- EBA_01.00.001.STL STL · 2,3 MB
- EBA_01.00.002_vertical_drive_arm.STL STL · 915 KB
- EBA_01.00.009_servo_plate.STL STL · 207 KB
- EBA_01.00.011_round_plate.STL STL · 258 KB
- EBA_01.00.003_link.STL STL · 648 KB
- EBA_01.00.016_R01_driven_gear.STL STL · 124 KB
- EBA_01.00.012_R01_claw_support.STL STL · 577 KB
- EBA_01.00.013_R01_right_finger.STL STL · 96 KB
- EBA_01.00.014_R01_left_finger.STL STL · 96 KB
- EBA_01.00.010_basement.STL STL · 986 KB
- EBA_01.00.006_triangular_link.STL STL · 940 KB
- EBA_01.00.015_drive_gear.STL STL · 119 KB
- EBA_01.00.018_maestro_holder.STL STL · 53 KB
- EBA_01.00.005_horizontal_arm.STL STL · 1,7 MB
- EBA_01.00.004_forward_drive_arm.STL STL · 2,0 MB
- EBA_01.00.017_R01_ramp.STL STL · 2,1 MB
- EBA_01.00.019_ball.STL STL · 320 KB
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 212,358
- Publicado
Sobre este modelo

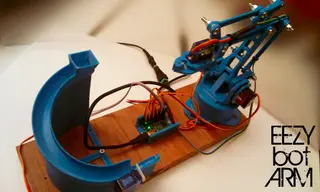

This is a 3D printed robotic arm The intent was to design something "easy" and cheap to built with a good visual impact also. Test video: https://youtu.be/qovZKW0DxWk https://youtu.be/N55W8TdMfCo I spent time to look around the web at some examples available that could be a good starting from, and between all I found interesting the phenoptix MeArm V4 project (http://www.thingiverse.com/thing:360108) especially for the simplicity and low cost of parts involved. So I kept only the kinematics geometry and redesign all parts including the gripper 23/09/15 updated instruction and round ramp stl (R01), added ball stl preliminary tests video https://www.youtube.com/watch?v=x9C_3WHr1G0 https://www.youtube.com/watch?v=0OFL6MxbPIM 25/09/15 updated gripper r01 files 04/10/15 added instructables link in instruction
Descripción original del autor, publicada en Thingiverse.
