Educational Brake Caliper
por Chris Halliday en Thingiverse

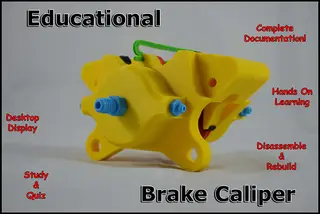

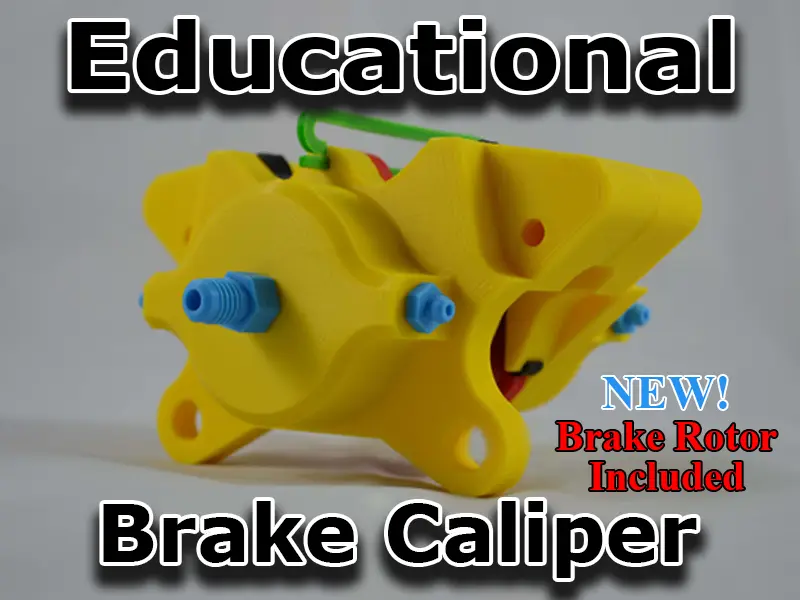

Since the start of my obsession with 3D printing and computer aided design, Motorsports has been on my mind. The Educational Brake Caliper is my first Motorsports related design to be released to the public. This caliper is based on a race car style brake caliper featuring quick release brake pads..
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Chris Halliday.
Archivos (17)
- Brake_Pad.stl STL · 72 KB
- Pad_Retainer.stl STL · 32 KB
- Wrench.stl STL · 68 KB
- Bleed_Screw.stl STL · 124 KB
- Wear_Plate.stl STL · 37 KB
- Piston_Seal.stl STL · 72 KB
- Caliper_-_Non-Mount_Side.stl STL · 586 KB
- Brake_Fluid_Inlet_Feed.stl STL · 367 KB
- Caliper_-_Mount_Side.stl STL · 654 KB
- Piston.stl STL · 531 KB
- Nut.stl STL · 1010 KB
- Bolt.stl STL · 1,7 MB
- EducationalBrakeCaliper-Final.pdf PDF · 1,7 MB
- Display_Stand_-_Rotor_Mounts.stl STL · 279 KB
- Brake_Rotor.stl STL · 245 KB
- Nut_-_Brake_Rotor_Mount.stl STL · 1,6 MB
- Bolt_-_Brake_Rotor_Mount.stl STL · 2,1 MB
- Categoría
- Educación
- Formatos
- STL, PDF
- Descargas
- 17,633
- Publicado
Sobre este modelo

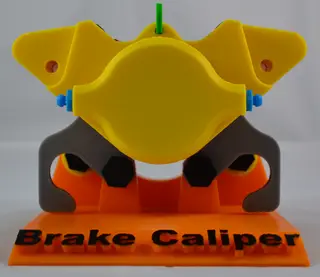

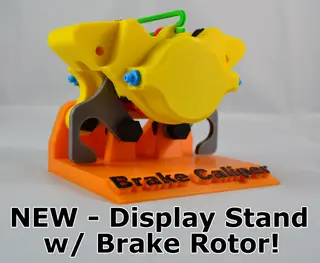

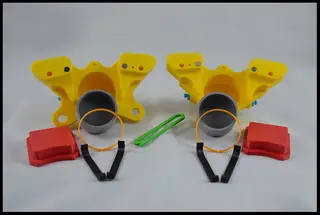

Since the start of my obsession with 3D printing and computer aided design, Motorsports has been on my mind. The Educational Brake Caliper is my first Motorsports related design to be released to the public. This caliper is based on a race car style brake caliper featuring quick release brake pads and dual pistons. This caliper is FULL SIZED and was modeled off of a Dwarf Car style Race Car. Instead of uploading a somewhat complicated design to Pinshape and letting you try to figure out what you have, I've opted to include some significant documentation so that this caliper can be shown and used as a hands-on educational piece. The document can be found with the STL files and is labelled, 'EducationalBrakeCaliper-Final.pdf'. Along with it being based on an educational design, this caliper fits perfectly on a shelf or a desk as a display showing all of its intricacies with the included display stand. My intent with the documentation provided will be to help you with printing, assembling, understanding, teaching and testing with this caliper. My suggestion would be to have you thumb through the document before starting this print so you have an idea on how it should go. Thank you ☺ ☼ Check out the video I have done of the caliper being taken apart and re-assembled below! ☼ Educational Brake Caliper NEW! - April 26, 2016 As per some requests that have come in. I have re-designed the Display stand to now include a reduced sized scalloped brake rotor. It has been reduced in size so that the display stand can withhold its previous foot print. For this new Display Stand, you will need to print the following items. [Note] - The previous Display Stand has been removed. - (1) - Brake Rotor.stl - (1) - Display Stand - Rotor Mounts.stl - (2) - Bolt - Brake Rotor Mount.stl - (2) - Nut - Brake Rotor Mount.stl
* Cults 3D listed as of November 27th, 2025 * Featured on Thingiverse, April 8th, 2016! * The Educational Brake Caliper took 1st place in the IC3D Print Contest! IC3D Print Contest Winners Announced * Featured in February 26th Staff Picks - Pinshape Best 3D Printing Designs on Pinshape week of Feb 26th
