Ecobee Enhanced / Premium Thermostat Thermal Trim Plate Spacer (6mm)
por Jimmy Ruzewski en Thingiverse
When installing my Ecobee Enhanced thermostat, I didn't need the full-sized decorative trim plate to cover large holes, but I wanted to try and thermally isolate the thermostat unit from the wall. I designed this 6mm thick thermal trim plate spacer that precisely matches the footprint of the Ecobee.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Jimmy Ruzewski.
- Categoría
- Para tu impresora
- Formatos
- STL, LYL
- Descargas
- 0
- Publicado
Sobre este modelo

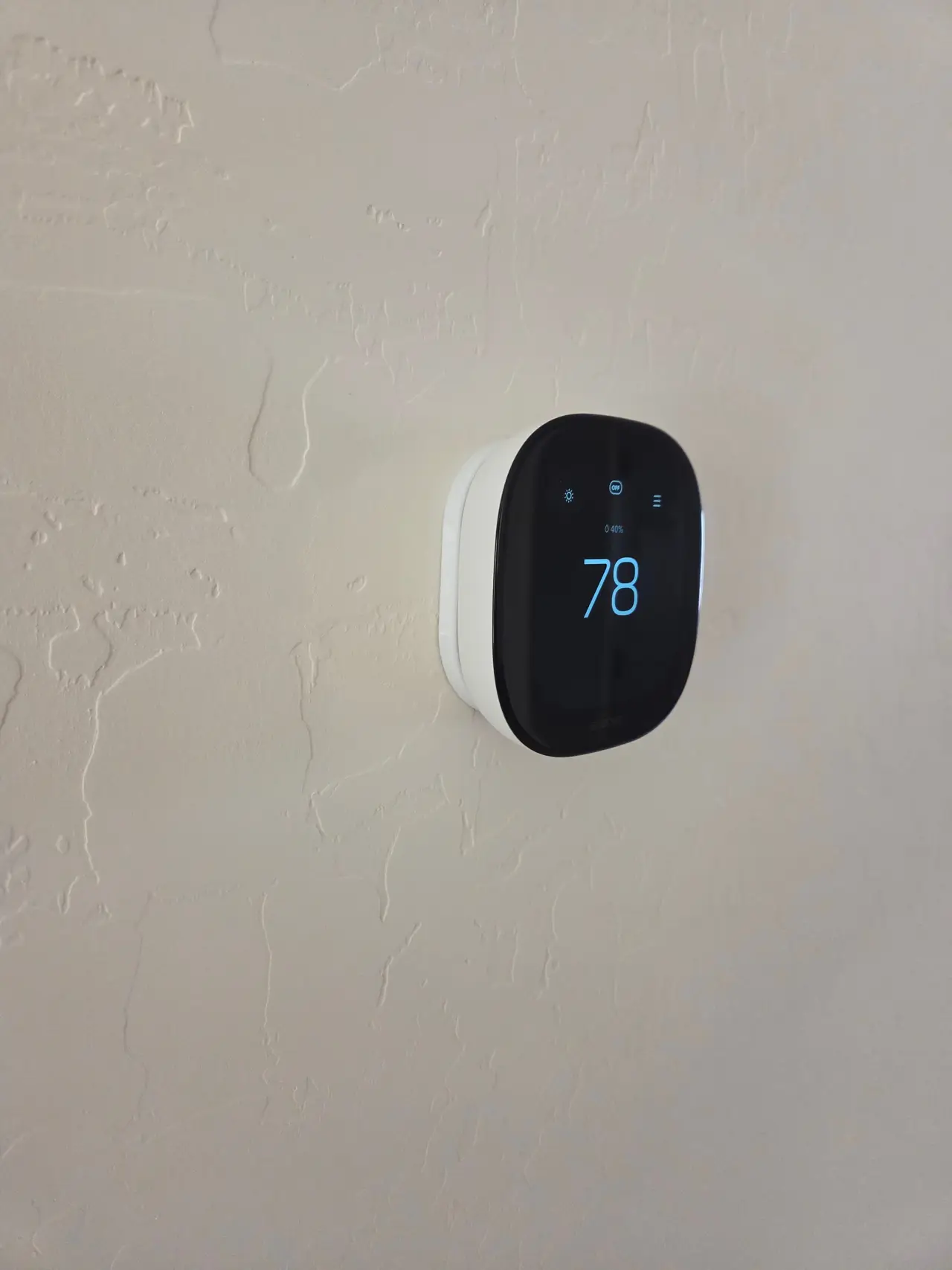

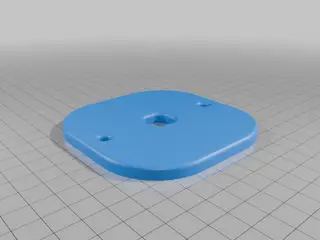

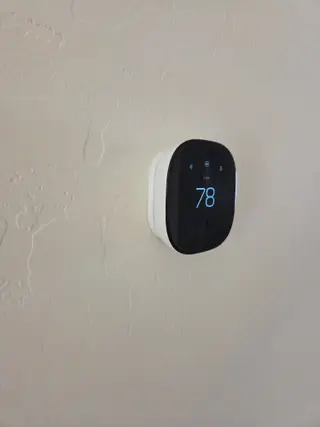

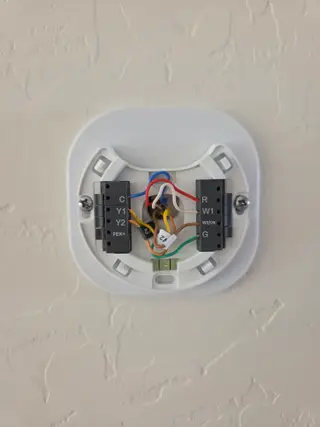

When installing my Ecobee Enhanced thermostat, I didn't need the full-sized decorative trim plate to cover large holes, but I wanted to try and thermally isolate the thermostat unit from the wall. I designed this 6mm thick thermal trim plate spacer that precisely matches the footprint of the Ecobee Enhanced backplate. - Compatibility: Designed for the Ecobee Enhanced, but it should also fit the Ecobee Premium. Note that this will not fit the Ecobee Essential (which has a smaller footprint). - Performance: Adding this thermal isolate plate resolved draft interference—I no longer need to adjust the Settings->Installation Settings->Thresholds->Temperature Correction setting on the Ecobee to match the actual ambient room air temperature. - Tip: I also recommend using HVAC duct sealing putty around the wire opening behind the plate to completely stop wall cavity drafts.
Descripción original del autor, publicada en Thingiverse.
