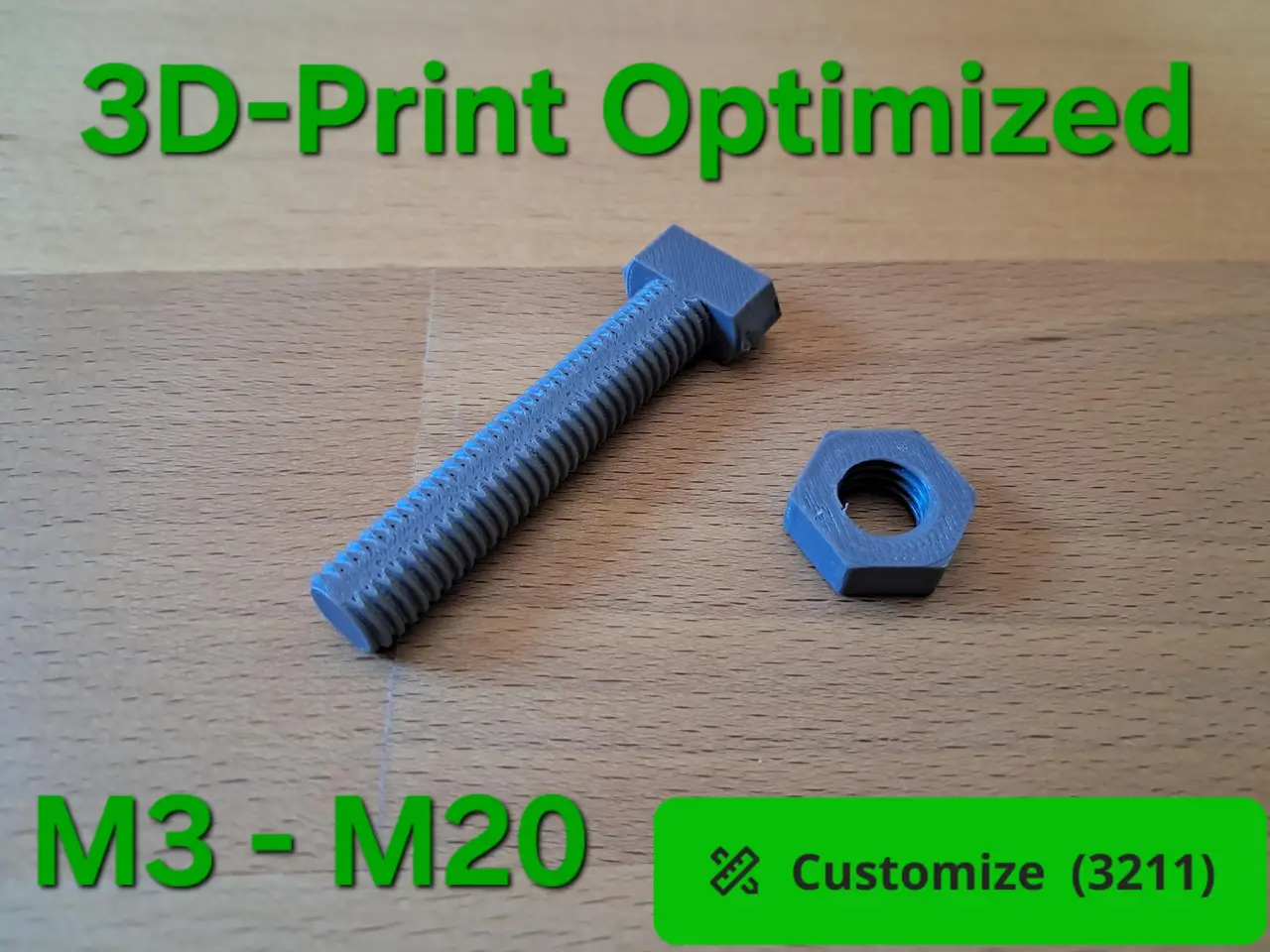

Durable Print-Opimized Screws
por Ritzmo en Printables
Durable Screws, modified threads for optimized print orientation
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Ritzmo.
Archivos (78)
- Durable Screw M3 Customizable.f3d F3D · 423 KB
- Durable Nut M3.stl STL · 253 KB
- Durable Screw M3x5.stl STL · 303 KB
- Durable Screw M3x10.stl STL · 578 KB
- Durable Screw M3x15.stl STL · 672 KB
- Durable Screw M3x20.stl STL · 871 KB
- Durable Screw M4 Customizable.f3d F3D · 362 KB
- Durable Nut M4.stl STL · 255 KB
- Durable Screw M4x10.stl STL · 428 KB
- Durable Screw M4x15.stl STL · 491 KB
- Durable Screw M4x20.stl STL · 642 KB
- Durable Screw M4x25.stl STL · 795 KB
- Durable Screw M5 Customizable.f3d F3D · 411 KB
- Durable Nut M5.stl STL · 255 KB
- Durable Screw M5x10.stl STL · 378 KB
- Durable Screw M5x15.stl STL · 552 KB
- Durable Screw M5x20.stl STL · 722 KB
- Durable Screw M5x25.stl STL · 703 KB
- Durable Screw M5x30.stl STL · 820 KB
- Durable Screw M6 Customizable.f3d F3D · 399 KB
- Durable Nut M6.stl STL · 255 KB
- Durable Screw M6x15.stl STL · 450 KB
- Durable Screw M6x20.stl STL · 583 KB
- Durable Screw M6x25.stl STL · 569 KB
- Durable Screw M6x30.stl STL · 677 KB
- Durable Screw M8 Customizable.f3d F3D · 355 KB
- Durable Nut M8.stl STL · 255 KB
- Durable Screw M8x15.stl STL · 376 KB
- Durable Screw M8x20.stl STL · 479 KB
- Durable Screw M8x25.stl STL · 583 KB
- Durable Screw M8x30.stl STL · 693 KB
- Durable Screw M8x35.stl STL · 634 KB
- Durable Screw M8x40.stl STL · 718 KB
- Durable Screw M10 Customizable.f3d F3D · 480 KB
- Durable Nut M10.stl STL · 255 KB
- Durable Screw M10x20.stl STL · 402 KB
- Durable Screw M10x25.stl STL · 493 KB
- Durable Screw M10x30.stl STL · 585 KB
- Durable Screw M10x35.stl STL · 677 KB
- Durable Screw M10x40.stl STL · 769 KB
- Durable Screw M10x45.stl STL · 678 KB
- Durable Screw M10x50.stl STL · 750 KB
- Durable Screw M10x60.stl STL · 876 KB
- Durable Screw M10x70.stl STL · 1017 KB
- Durable Screw M12 Customizable.f3d F3D · 444 KB
- Durable Nut M12.stl STL · 255 KB
- Durable Screw M12x20.stl STL · 381 KB
- Durable Screw M12x25.stl STL · 453 KB
- Durable Screw M12x30.stl STL · 527 KB
- Durable Screw M12x40.stl STL · 672 KB
- Durable Screw M12x50.stl STL · 830 KB
- Durable Screw M12x60.stl STL · 777 KB
- Durable Screw M12x70.stl STL · 900 KB
- Durable Nut M14.stl STL · 255 KB
- Durable Screw M14 Customizable.f3d F3D · 495 KB
- Durable Screw M14x25.stl STL · 385 KB
- Durable Screw M14x30.stl STL · 449 KB
- Durable Screw M14x40.stl STL · 588 KB
- Durable Screw M14x50.stl STL · 726 KB
- Durable Screw M14x70.stl STL · 790 KB
- Categoría
- Tecnología
- Formatos
- F3D, STL
- Descargas
- 796
- Publicado
Sobre este modelo

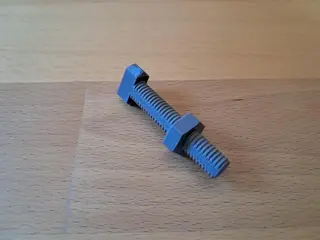

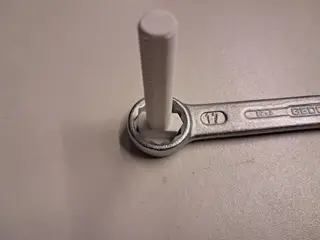

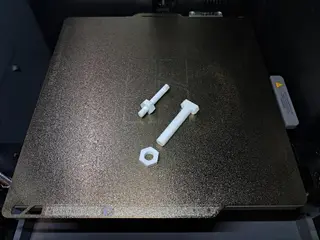

When printing screws upright the threads are printed with the best quality but the screws are not durable because they snap between the layer lines. So I designed screw models that are optimized for printing flat on the side. The optimized screws are way more durable than upright standing screws The Screws use metric ISO standart thread and the lengths can be customized in Fusion 360 using parameters. The threads on the bottom and top are removed and the head gets a bit thinner. Because of that the wrench-size is different and an open-ended wrench might not work as good anymore. But using a ring-spanner (as shown in the picture) works perfectly.
Descripción original del autor, publicada en Printables.
