Dual Spool Cord Wrap
por Garage_Tinkerer en Printables
Make a cord wrap using 2 empty filament spools.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Garage_Tinkerer.
Archivos (41)
- PRUSA SPOOL CARDBOARD.ipt IPT · 209 KB
- HANDLE WASHER.ipt IPT · 328 KB
- GENERIC SIDE PL.ipt IPT · 216 KB
- PRUSA BARREL NUT.ipt IPT · 991 KB
- PRUSA BARREL SCREW.ipt IPT · 1,2 MB
- GENERIC BARREL SCREW.ipt IPT · 1,1 MB
- HANDLE INSERT.ipt IPT · 332 KB
- GENERIC BARREL NUT.ipt IPT · 975 KB
- WRENCH.ipt IPT · 329 KB
- HANDLE PLATE.ipt IPT · 98 KB
- PRUSA CORD SPOOL CONNECTOR SIDE 1.ipt IPT · 697 KB
- PRUSA SPOOL SIDE.ipt IPT · 216 KB
- GENERIC SPOOL.ipt IPT · 175 KB
- PRUSA CORD SPOOL CONNECTOR SIDE 2.ipt IPT · 653 KB
- CORD SNAP.ipt IPT · 836 KB
- GENERIC HANDLE.ipt IPT · 555 KB
- PRUSA HANDLE.ipt IPT · 510 KB
- _2 SPOOL CORD WRAP MP.ipt IPT · 5,2 MB
- _2 SPOOL CORD WRAP_GENERIC.stp STP · 1,2 MB
- _2 SPOOL CORD WRAP_Prusa.stp STP · 2,2 MB
- 50mm GENERIC HANDLE.stl STL · 1,7 MB
- 50mm GENERIC BARREL SCREW.stl STL · 3,8 MB
- 50mm GENERIC BARREL NUT.stl STL · 4,7 MB
- 50mm GENERIC SIDE PL.stl STL · 81 KB
- PRUSA CORD SPOOL CONNECTOR SIDE 1.stl STL · 408 KB
- PRUSA CORD SPOOL CONNECTOR SIDE 2.stl STL · 395 KB
- PRUSA BARREL NUT.stl STL · 5,9 MB
- PRUSA BARREL SCREW.stl STL · 4,5 MB
- PRUSA HANDLE.stl STL · 1,6 MB
- CORD SNAP 9.3mm.stl STL · 108 KB
- CORD SNAP DOUBLE 9.3mm.stl STL · 141 KB
- CORD SNAP 10.7mm.stl STL · 111 KB
- WRENCH.stl STL · 1,0 MB
- GENERIC SIDE PL.stl STL · 82 KB
- GENERIC HANDLE.stl STL · 1,7 MB
- GENERIC BARREL NUT.stl STL · 4,7 MB
- GENERIC BARREL SCREW.stl STL · 3,8 MB
- 2KG SPOOL GENERIC SCREW.stl STL · 3,7 MB
- 2KG PRUSA SPOOL NUT.stl STL · 4,8 MB
- 2KG SPOOL GENERIC NUT.stl STL · 3,8 MB
- 2KG PRUSA SPOOL SCREW.stl STL · 4,2 MB
- Categoría
- Herramientas
- Formatos
- IPT, STP, STL
- Descargas
- 5,954
- Publicado
Sobre este modelo

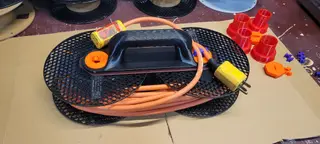

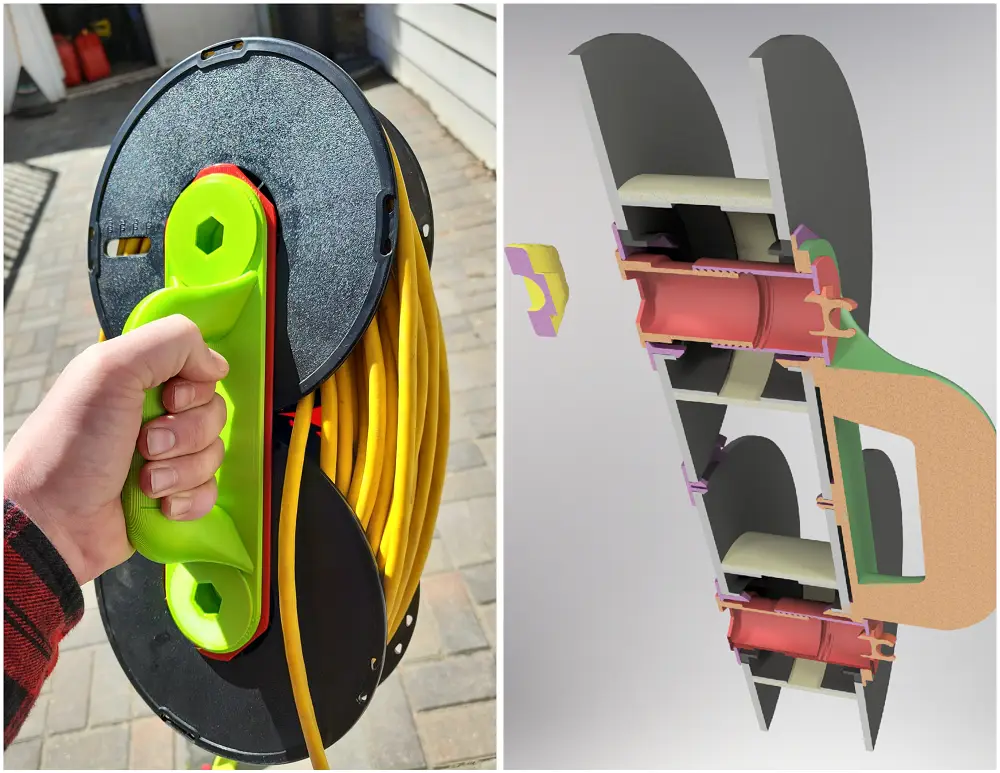

Turn old filament spools into a functional cord wrap easily!
Originally design with Prusament spools in mind, but updated to include an option for generic spools as well.

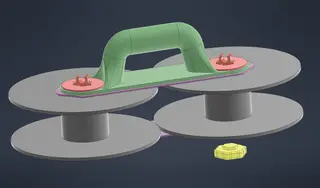

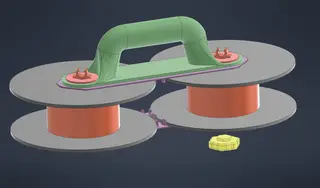

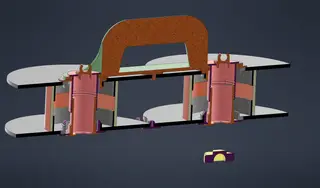

There are three different ways you can build the cord wraps. - Just use the snap on side plates with Prusament spools for light-duty application like storing Christmas lights or gathering twine. - Add the barrel screws for medium duty applications like extension cords and rope. - Add the handle for heavy-duty or often used applications.
I've included the source files as well, so feel free to modify and improve the concept. Please let me know what you think and if they work for you. EDIT #1 I've added STEP files of the assemblies to make it easier for others to remix. I've also added longer versions of the screws for 2KG spools.
EDIT #2 I understand that some generic spools have smaller IDs than the original design accounted for. I've added a 50mm version to accommodate.
