Dual Servo Mount for DM996 Servos

Dual Servo Mount for DM996 Servos

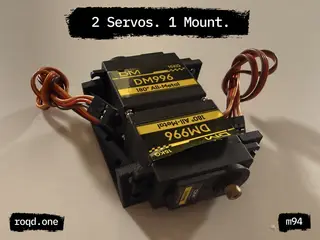

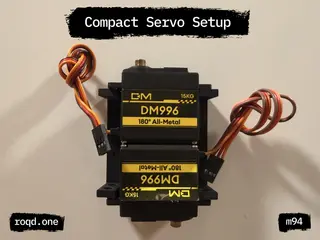

Mount two DM996 servos side by side on one compact base, with their output shafts facing opposite ends and the wiring easy to reach.

Need a custom part for your setup? I design print-ready models from photos, sketches and measurements. Request a custom design (https://roqd.one/ith)

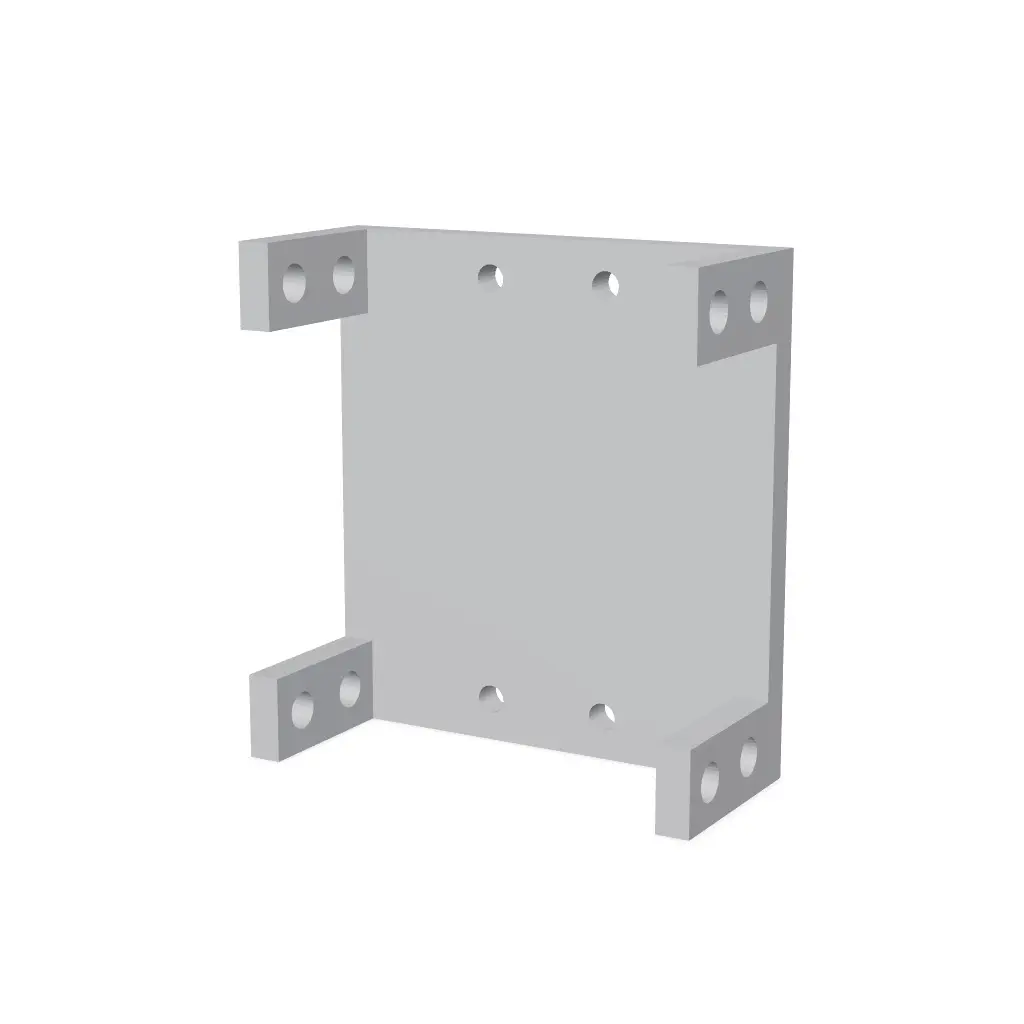

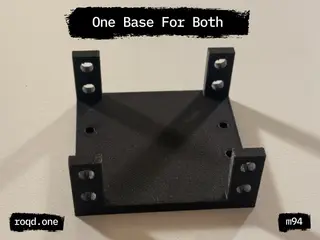

I made this bracket to mount two servos together instead of arranging separate holders around the build. Four upright tabs hold the pair in position, while a flat base provides four fixing points for attaching the assembly to a frame or panel.

Key details - Capacity: two servos; shown fitted with DM996 servos - Overall size (L x W x H): 57 x 60.5 x 24 mm - Shared servo mounting space: 60.5 x 49 mm, 20 mm high - Four upright tabs, each with two 4.5 mm holes (eight holes total) - Four base mounting holes: 3.4 mm diameter - Open layout leaves the output shafts and leads accessible

Files included - m94_servo_double_mount.stl - one-piece holder for two servos

Important

The mounting space is shared by both servos, not the size of an individual slot. Compare your servo bodies, mounting tabs and hole positions with the holder before printing. Other servo models are not confirmed to fit. Servos and mounting hardware are not included.
