Dual ESC Mount with Cable Support

Dual ESC Mount with Cable Support

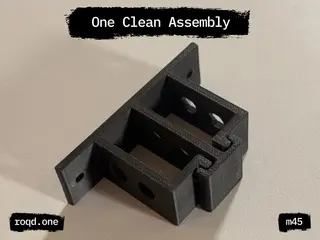

Secure two compact ESC modules side by side while keeping their wiring contained in one clean, screw-mounted assembly.

Need a custom part for your setup? I design print-ready models from photos, sketches and measurements. Request a custom design (https://roqd.one/ith)

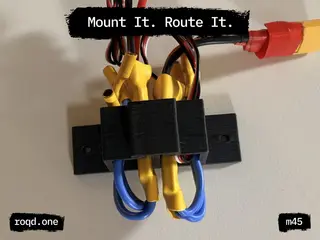

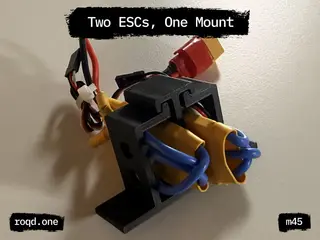

Loose ESCs and stiff motor leads can quickly turn a small electronics build into a tangled assembly. I designed this holder to keep two matching controllers together, support the connected wiring and give the pair a simple two-screw mounting base.

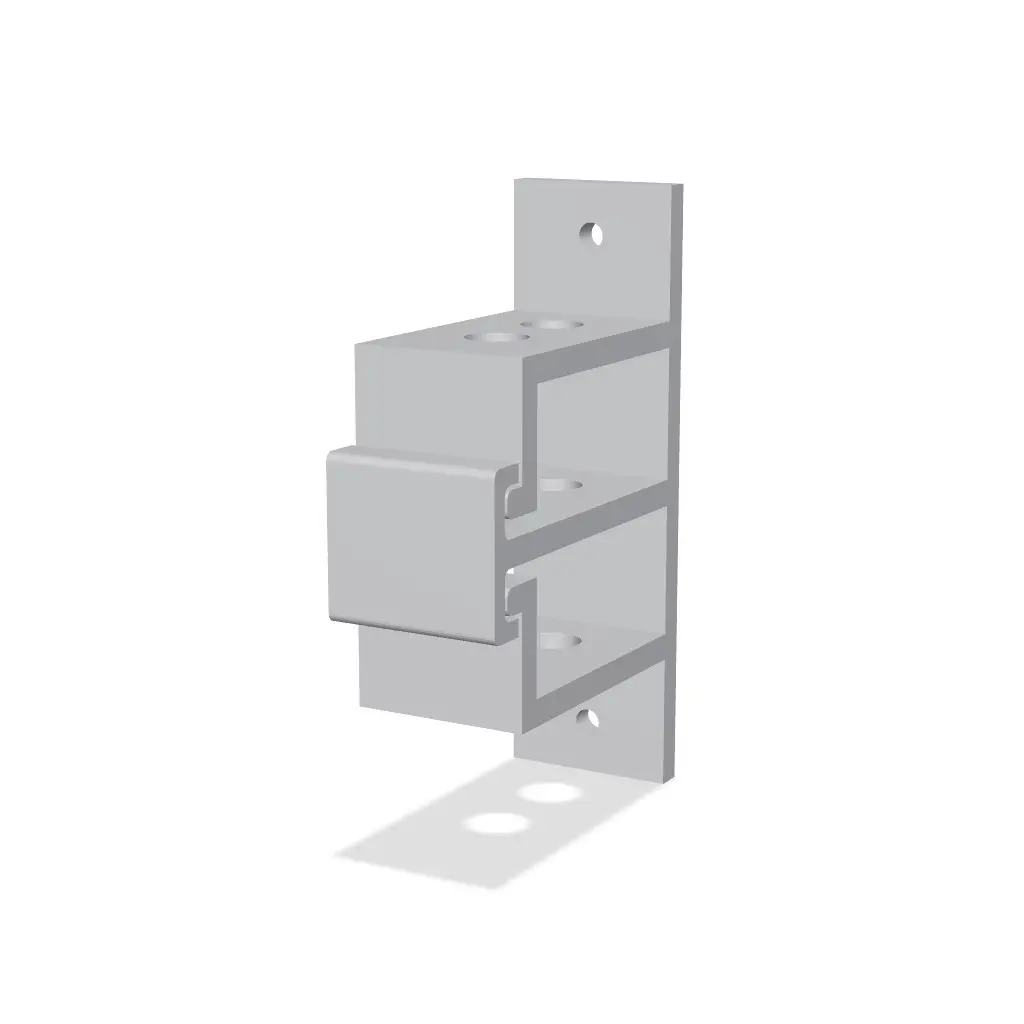

Key details - Capacity: two compact ESC modules - Overall size: 69 x 20 x 41.5 mm - Two mounting holes: 3 mm diameter - Separate channels keep both controllers aligned - Open sides leave the wiring accessible

Files included - m45_esc_double_holder.stl - standalone dual ESC holder

Important

This is the dual version for two ESCs. The single ESC holder is the separate M93 model. ESC dimensions and cooling requirements vary. Measure both modules before printing, keep heat-sensitive components ventilated and choose suitable mounting hardware.
