Dual Axis Solar Tracker
por Rob Martin en Thingiverse
If you have made this thing, PLEASE take pictures and post! Thanks. This is a simplified dual axis tracker for small solar projects. Notice that the weight of the tracker is NOT putting pressure on the servo motors. The pitch gear is nestled inside the bracket which reduces wobbliness and makes the.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Rob Martin.
Archivos (9)

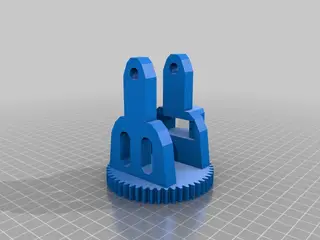

- Base_Gear_and_Panel_Mount.stl STL · 169 KB
- Base_Gear_Shaft.stl STL · 27 KB
- Horz_Servo_Gear.stl STL · 195 KB
- LDR_Divider.stl STL · 2 KB
- Panel_Bracket.stl STL · 128 KB
- Tracker_Base.stl STL · 53 KB
- Vertical_Servo_Gear.stl STL · 62 KB
- Dual_Axis_Tracker_Schematic.pdf PDF · 421 KB
- Dual_Axis_Tracker_Arduino_Code.ino INO · 2 KB
- Categoría
- Tecnología
- Formatos
- STL, PDF, INO
- Descargas
- 61,816
- Publicado
Sobre este modelo

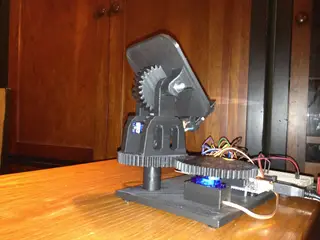

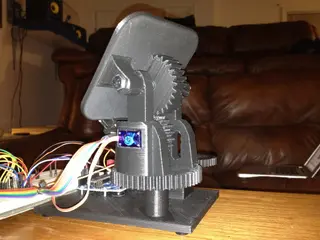

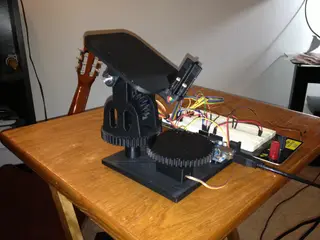

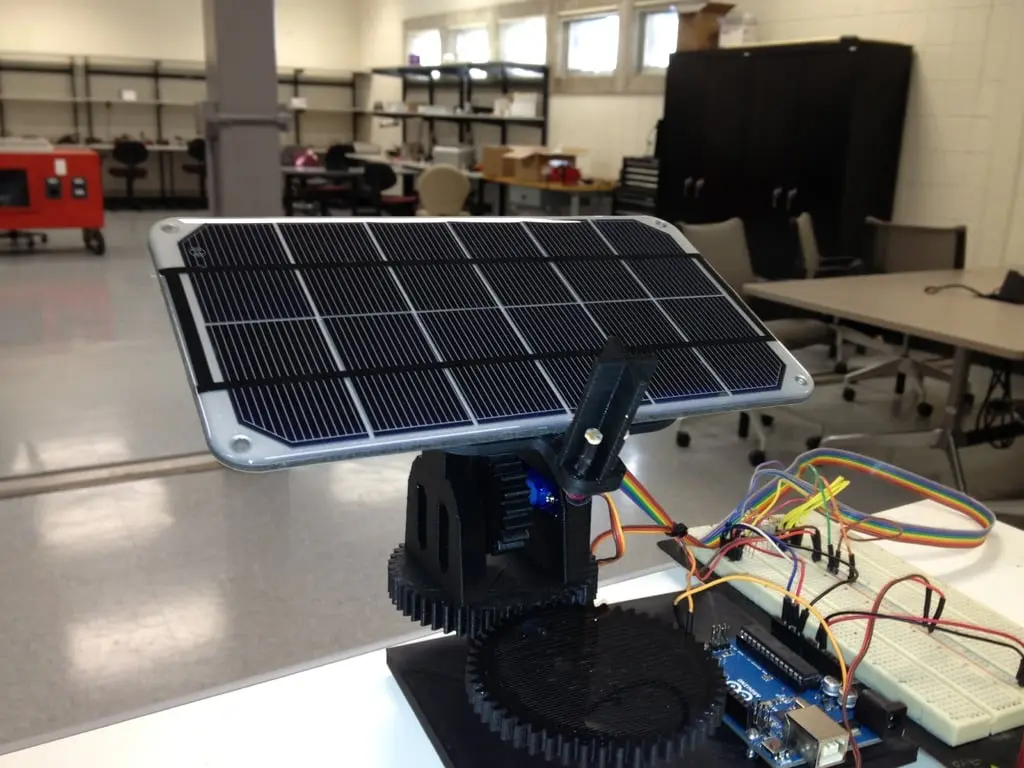

If you have made this thing, PLEASE take pictures and post! Thanks. This is a simplified dual axis tracker for small solar projects. Notice that the weight of the tracker is NOT putting pressure on the servo motors. The pitch gear is nestled inside the bracket which reduces wobbliness and makes the installation look professional. For the horizontal gear system it just made sense to attach the entire panel mount directly on the gear. It makes for a really solid structure. This was my first attempt at a project like this. Let me know how it works out if you build one... Enjoy! Here are video links: http://www.youtube.com/watch?v=sbksReSEpJc http://www.youtube.com/watch?v=HqACH3WS-w8 Here is a simiar project with no printed parts: http://www.instructables.com/id/Arduino-Solar-Tracker/
