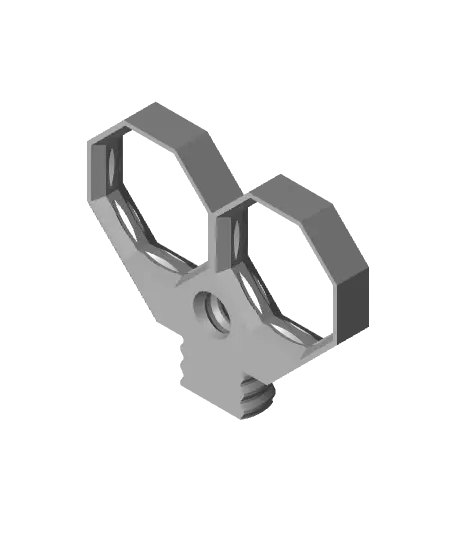

DS Snaps - Grip Removal Tool
por Jonathan K en Thangs
Use the “Grip Removal Tool” to separate any Double Sided Snaps (Part A’s and B’s). The tool is made to be extra tight going into threads.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- DS Snaps - Grip Removal Tool.stl STL · 431 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 15,605
- Publicado
Sobre este modelo
Use the “Grip Removal Tool” to separate any Double Sided Snaps (Part A’s and B’s). The tool is made to be extra tight going into threads.
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
Descripción original del autor, publicada en Thangs.
