Drybox PC4-M10 Fitting
Two-part knurled fitting to attach a PC4-M10 PTFE coupler to your drybox. Includes a built-in tube cap.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a slinkstr.
Archivos (6)
- Drybox PC4-M10 Fitting.3mf 3MF · 533 KB
- Drybox PC4-M10 Fitting.step STEP · 7,2 MB
- Drybox PC4-M10 Fitting-Exterior No Holder-1.stl STL · 317 KB
- Drybox PC4-M10 Fitting-Exterior-1.stl STL · 357 KB
- Drybox PC4-M10 Fitting-Interior-1.stl STL · 799 KB
- Drybox PC4-M10 Fitting.f3d F3D
- Categoría
- Para tu impresora
- Formatos
- 3MF, STEP, STL, F3D
- Descargas
- 1
- Publicado
Sobre este modelo

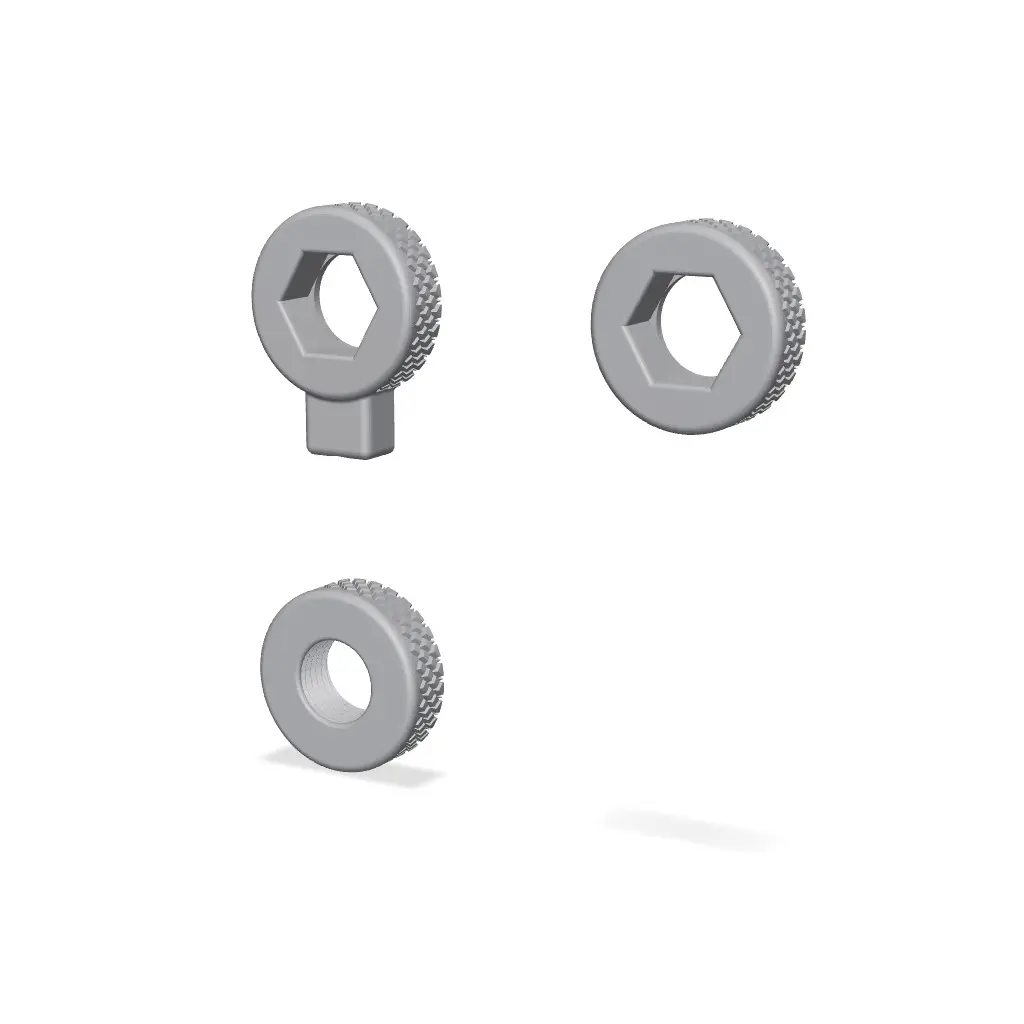

Two-part knurled fitting to attach a PC4-M10 PTFE coupler to your drybox. Includes a built-in tube cap.

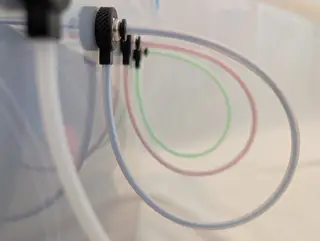

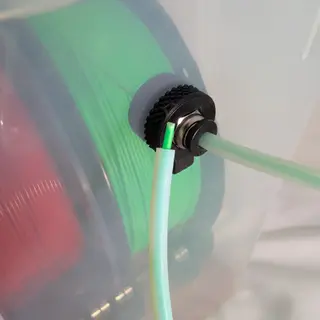

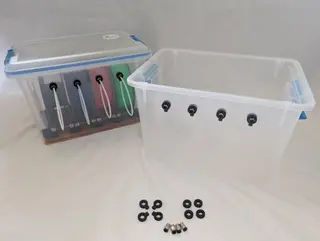

Designed specifically for the Sterilite 20qt containers, but compatible with anything with thin walls. Includes a PTFE tube cap built into the exterior fitting to seal up spools that aren't in use. The tube cap has two inner diameters to allow the filament to protrude from the tube while stowed, letting you easily grab and pull when switching filaments.
Fittings are 20mm in diameter, recommended to drill holes no larger than 1/2" - I used 29/64" and would go smaller in hindsight.

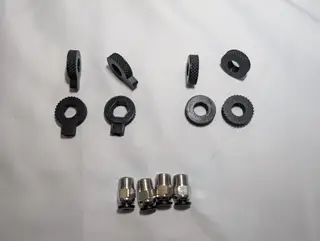

Must have one PC4-M10 PTFE coupler and ~1' of PTFE tube per spool.
Included is an alternate exterior fitting with no tube cap.
Also shown in preview image is Design8Studio's "FINALLY — Dry Box actually working great" (https://www.thingiverse.com/thing:5200203) model, not mandatory.
