drunK131

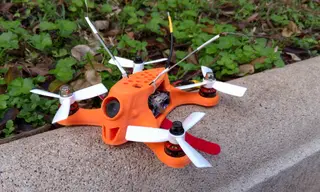

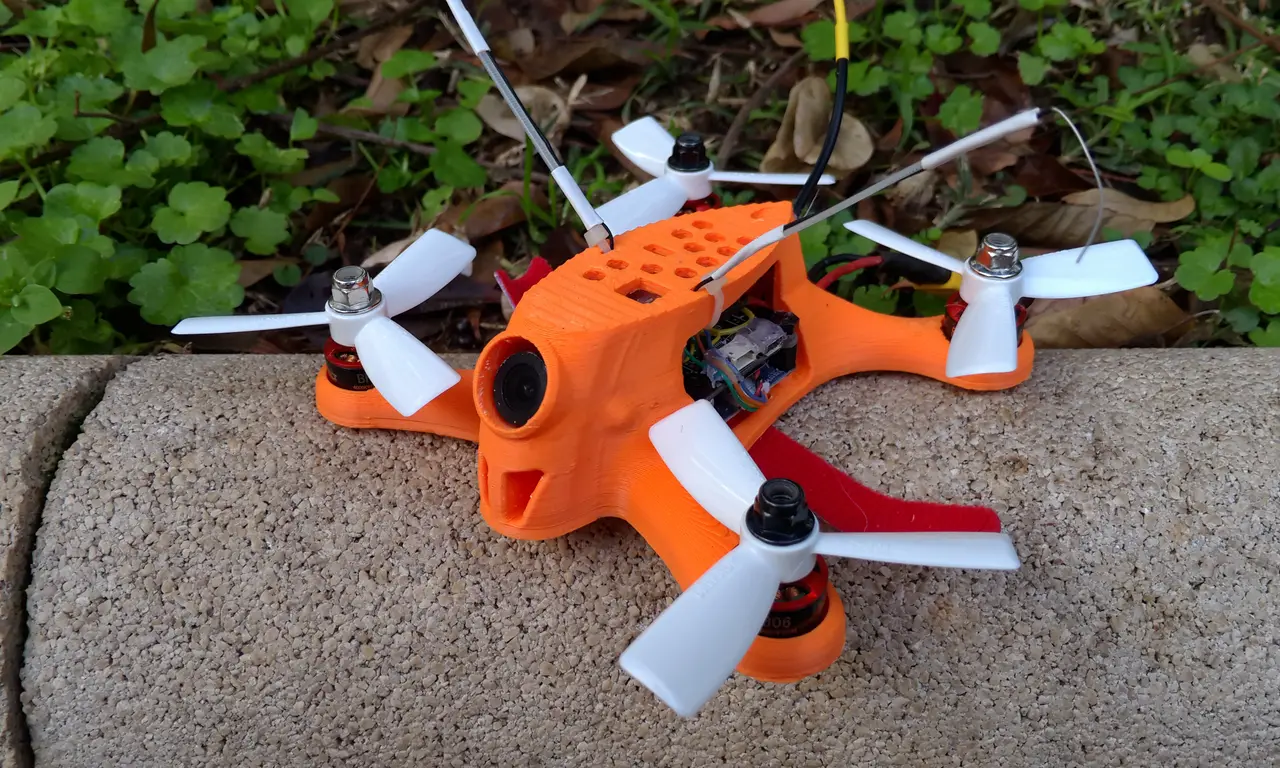

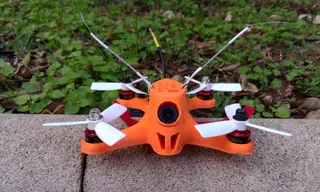

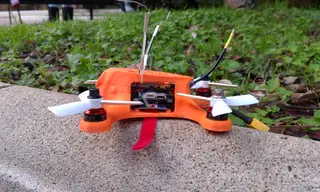

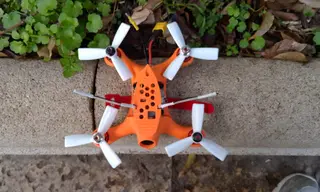

Racing Micro quadcopter frame drunK131 Racing quadcopters is something that I really like. I love to design my own frames. Usually, I cut'em with my CNC but this time I wanted to try a printed one! So I designed the drunK131 a micro category racing FPV quadcopter which turned out to be nice looking (In my opinion anyway (: ) and flies really great. What surprised me most is the durability of it. If you would like to print a one-piece frame that looks different I think you will make a great choice here. Frame weights 40gr. I printed it from ABS but you can choose any other material like Petg\Nylon\PCTPEYou have to use support. Don't worry they get off easily! The frame designed to fit Foxeer micro arrow \ Runcam micro swiftYou can mount 30.5*30.5mm and 20*20mm FC's UPGRADE: Download Micro swift cam version V2 with option to mount 1106's motors I used some laying around electronics so the setup is really cheap! To support my work I have included some links from where I buy my gear and setup My Setup for 30.5mm*30.5mm FC's, Use drunK131 V1 STL!!! FC: Omnibus F3. 4in1 Esc's 20A 4in1 Esc's 20A Dshot600. 1306 Brushless motors Racerstars 1306 4000Kv. Vtx Eachine Vtx TX801. FPV cam Eachine CCD cam 1000TVL. Antenna extension (Piggy Tail) Piggy Tail. Antenna Pagoda. 3" Propellers 3045 3 Blades HGLRC. Receiver FrSky XM+. Radio control Taranis Special edition. Or Cheaper Taranis X7. In case there are sold out items you can try to get these in replace Flight Controller + ESC's MAMBASYS F405 MK2 Betaflight Flight Controller F40 40A 3-6S DSHOT600 FPV Racing Brushless ESC 30.5x30.5mm. Radio+Receiver JumperRC T-Pro 2.4GHz + ELRS Receiver . 3" Propeller HQProp DP3X4X3 . For Bad ass setup and 20*20 electronics, Please use drunK131 Micro swift cam STL HGLRC XJB F428-TX20 V2 Omnibus F4 Flight Controller 28A 2-4S tx. Brother Hobby 1407 4100Kv. Runcam micro Swift V2. Printed with CR-10 3D Printer .
