Driver Tool
por Jonathan K en Thangs

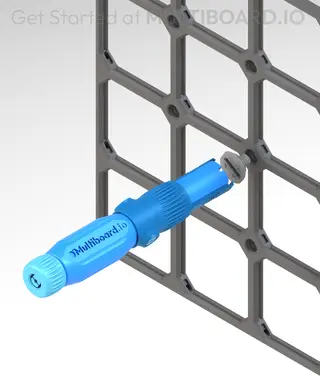

The Driver Tool to hold and screw in Fix Points that are just a little out of reach for a coin or your fingers.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)

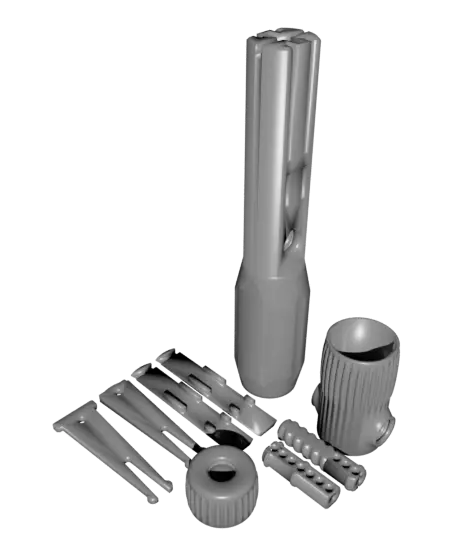

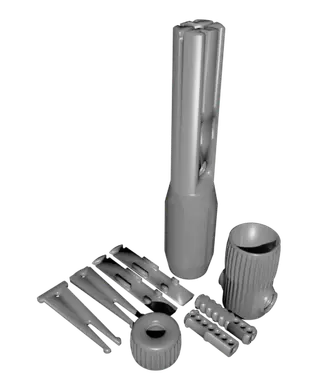

- Multipoint Driver.stl STL · 16,4 MB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 5,140
- Publicado
Sobre este modelo
The Driver Tool to hold and screw in Fix Points that are just a little out of reach for a coin or your fingers.
Here’s a video showing how this tool works: (Coming Soon)

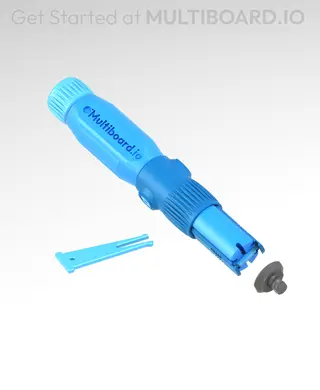

This Tool comes with two driver types: One for Small Thread Fix Points (https://thangs.com/designer/Multiboard/3d-model/Small%20Thread%20-%20Multipoint-1123334) and one for Large Thread Fix Points (https://thangs.com/designer/Multiboard/3d-model/Flush%20Big%20Thread%20-%20Point-1123331).

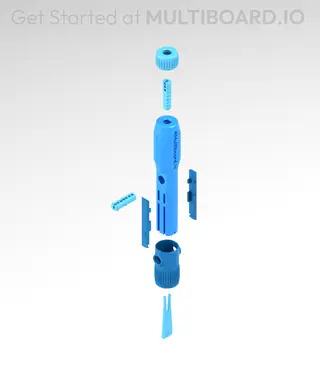

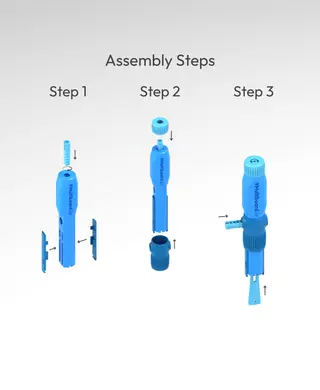

To assemble this tool, follow the assembly steps shown in the images.
To store the Driver Tool, you can use the Fix Point Driver Holder - Multibin Insert (https://than.gs/m/1462483)
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
Descripción original del autor, publicada en Thangs.
