Drilling Bounding Ring
por MIK BAR en Thingiverse
When I needed a depth limiter for the drill, I downloaded models from other authors. These are interesting models with a collet lock. But in fact, they were useless, because the fixation on the drill was insufficient and the limiters simply slipped, especially when working with the hammer drill. So.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a MIK BAR.
Archivos (4)
- Categoría
- Herramientas
- Formatos
- STL, F3D
- Descargas
- 21,844
- Publicado
Sobre este modelo

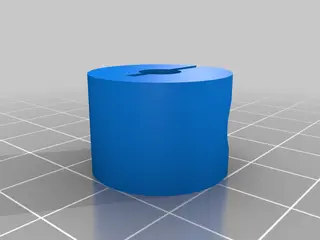

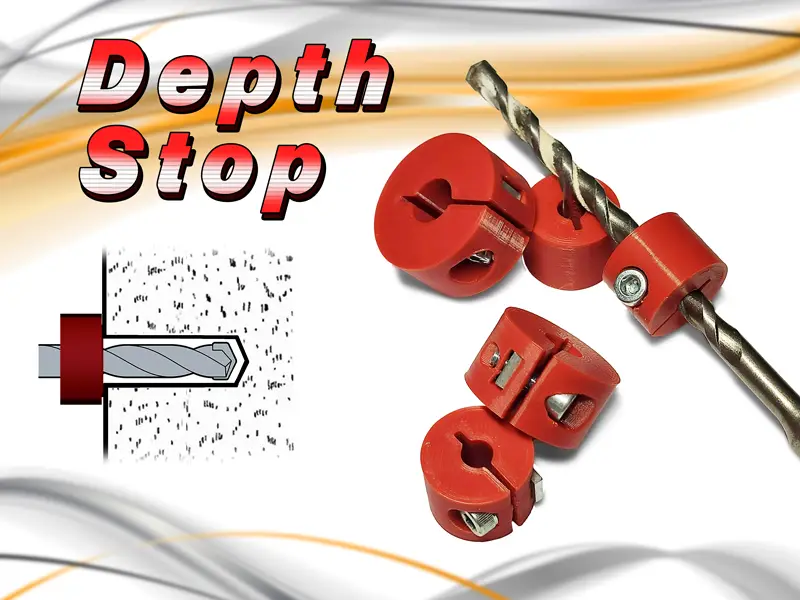

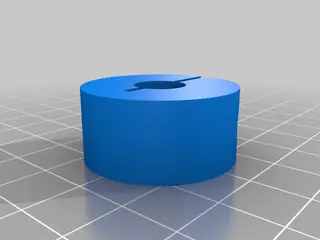

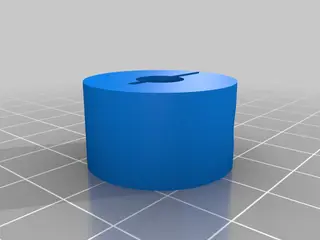

When I needed a depth limiter for the drill, I downloaded models from other authors. These are interesting models with a collet lock. But in fact, they were useless, because the fixation on the drill was insufficient and the limiters simply slipped, especially when working with the hammer drill. So I created my own drilling depth limiter design. I made three of the most popular diameters for drilling with a hammer drill 6-8-10mm. However, you can use the source file to modify it for yourself. The model is printed without support, print in place. To complete it, you will need: M4x12mm Hexagon Socket Screw and M4x7x2 Square Nut. Parts links below: M4x12mm Hexagon Socket Screw M4x7x2 Square Nut
Descripción original del autor, publicada en Thingiverse.
