Drill Guide - 45 & 90 Degree

This is a drill guide to aid in 90 deg and 45 deg drilling.

Todos los archivos (2) en un ZIP

Licencia

Solo uso personal

Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a idgmo.

Archivos (2)

This is a drill guide to aid in 90 deg and 45 deg drilling.

Diamond cutouts are on either end to aid in finding measurement lines.

The 45 deg guide will intersect at the the center line.

All holes accommodate imperial bits.

Please be safe and enjoy!

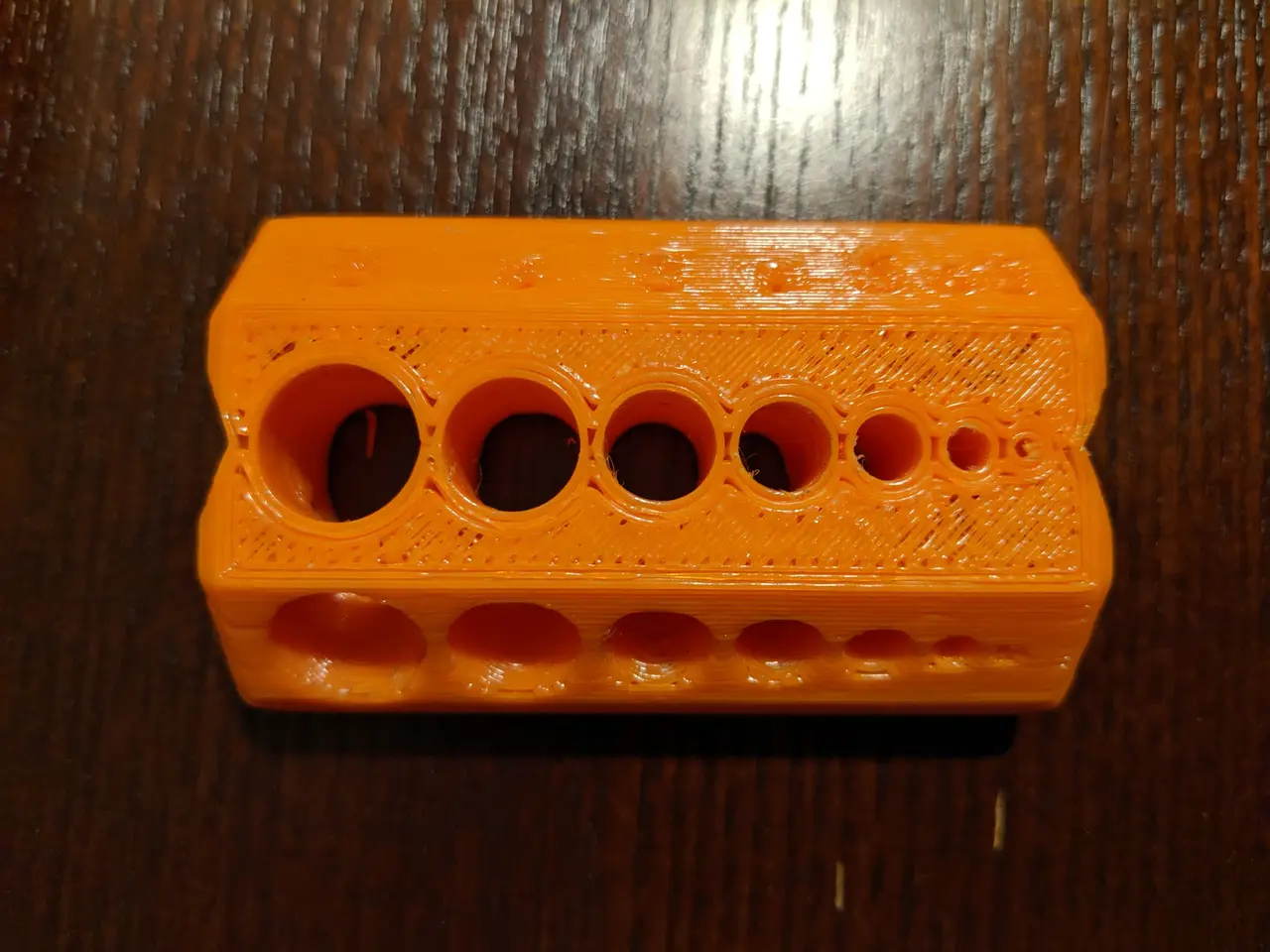

Note: Print in picture above was printed with a .6 nozzle, a .4 will work well and look even better!

Print instructions Category: Hand Tools Print Settings

Printer Brand: Prusa

Printer: i3 MK3

Rafts: No

Supports: No

Resolution: .3

Infill: 20

Filament: Hatchbox PLA Orange

Notes:

Add more layers and/or infill to strengthen part.
