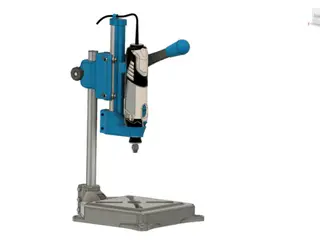

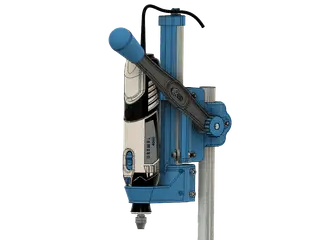

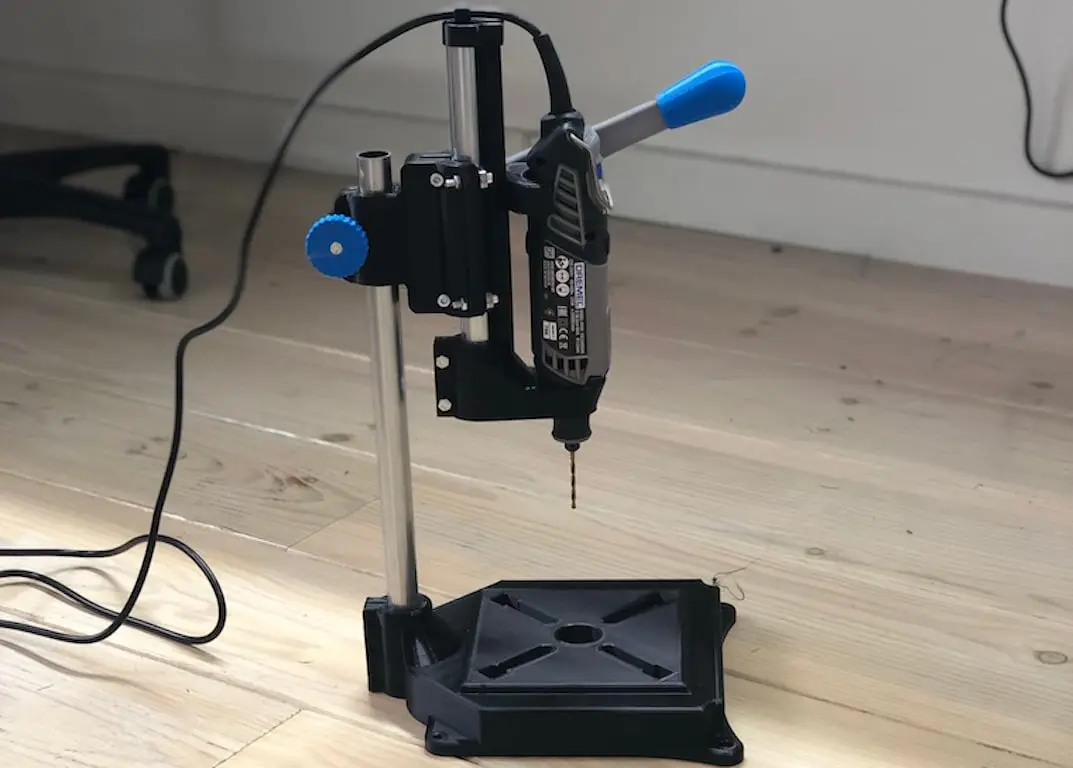

DREMEL Drill Press (Very strong and precise)

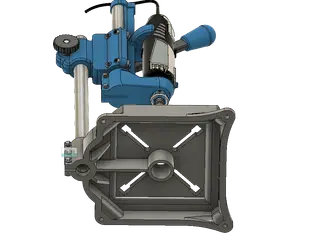

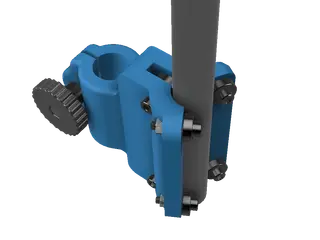

For only 5€ and a spool of filament, you can build yourself a serious DREMEL Drill Press and be VERY proud at the result! Using cheap bearings this is a very easy and FUN build of a very robust and precise lineair guidance system. Design features: - Easy and fast DREMEL placement. - Almost 10cm Drill clearance. - Ajustable Hight - Lockknob to fixate lever. - Big stable and sturdy ground plate. (Need a 25cm X 25cm printbed. Working on a smaler version witch will fit on a 22cm x 22cm Ender3) - Easy to assemble, no special tools required. - Simple but very accurate vertical guidance with bearings. 100% without play.

UPDATE 1-5-2020: On VERY populair demand I finally find some time to design a base witch should be printable on a 220 x 220. UPDATE: Added holder for Dremel 3000 !! Included universal base with STEP file so you can design your own Drill Holder! BOQ: Tube or Pipe For the steel pipe I used 22mm steel pipe 1.4mm thick. It's very cheap and common so easy to find in your local DIY shop. Here they use it for central heating. Pipe Nominal Bore 1/2 inch (DN 15 mm), Outside Diameter 21.34 mm should also work! Cut 2 pieces: 35cm and 25cm. Socket Hex Head M5 X 20 (4X) M5 X 15 (1X) M5 X 30 (2) Hex head M5 X 45 (1X) M5 X 25 (1X) M5 X 30 (5X) Other M5 Nuts (13X) M5 Washers (13) 6 Bearings 16 X 5 X 5 (Outsite / Insite / Thickness) Ali-Express 3D Printed Parts I use regular PLA. It's very stiff and strong. Make sure you print with minimum of 5 top, bottom, outer and inner layers. Assembly instructions follow beneath. Have fun with this build and please give me likes as appreciation for my work. One last tip. Revisit this page and download the latest versions just before you start printing. Maybe there are chances in the design. https://youtu.be/A6iSEkNZZyc
