Drawer knobs with captive M5 nut - Bat, Dog & Campervan
Decorative drawer/cupboard knobs with a captive M5 nut, designed for campers, vans, caravans or anywhere else that needs a bit more character.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesVanDog General License
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a VanDog.
Archivos (3)
- Bat_drawer_knob.stl STL · 4,4 MB
- Dog_drawer_knob.stl STL · 4,6 MB
- Van_drawer_knob.stl STL · 2,7 MB
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 1
- Publicado
Sobre este modelo

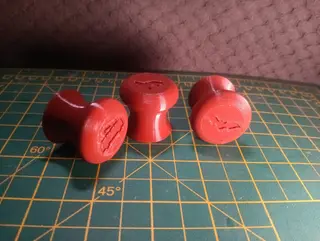

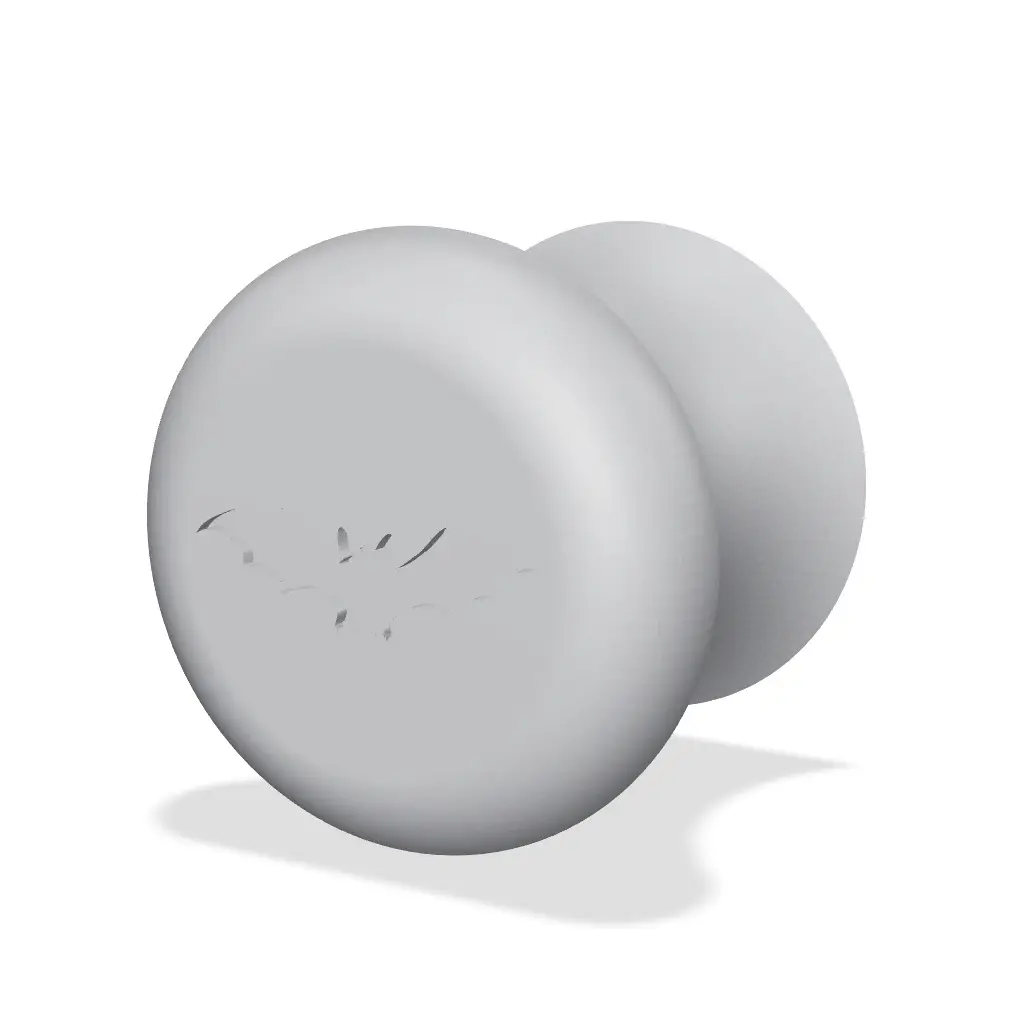

Decorative drawer/cupboard knobs with a captive M5 nut, designed for campers, vans, caravans or anywhere else that needs a bit more character. This download includes three designs:

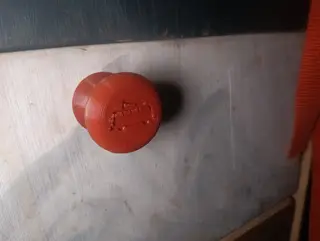

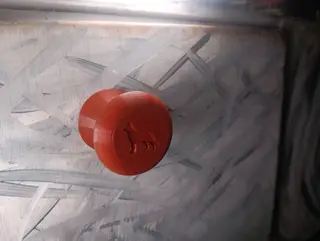

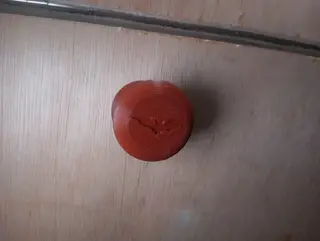

🦇 Bat 🐕 Dog 🚐 Campervan
The M5 nut is captured inside the print, giving the knob a strong metal thread rather than relying on a printed thread.
Printing instructions (Tested using PETG. Other materials may result in slight dimensional differences) Designed for FDM printing. Recommended settings: 0.4 mm nozzle 0.2 mm layer height 15% infill 1 × M5 nut required per knob No support needed
Important: Add a pause in your slicer immediately before the nut cavity is covered. Insert the M5 nut into the recess, make sure it is fully seated, then resume the print. The nut will then be permanently captured inside the finished knob.
Check that the nut is sitting completely below the current print surface before resuming to avoid the nozzle hitting it.
Descripción original del autor, publicada en Thangs.
