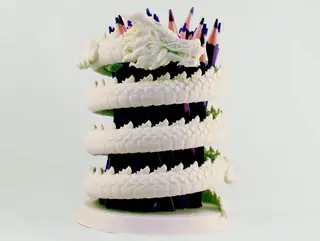

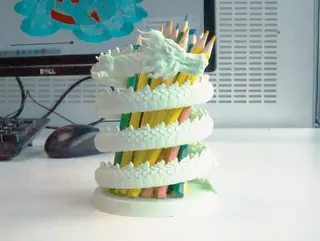

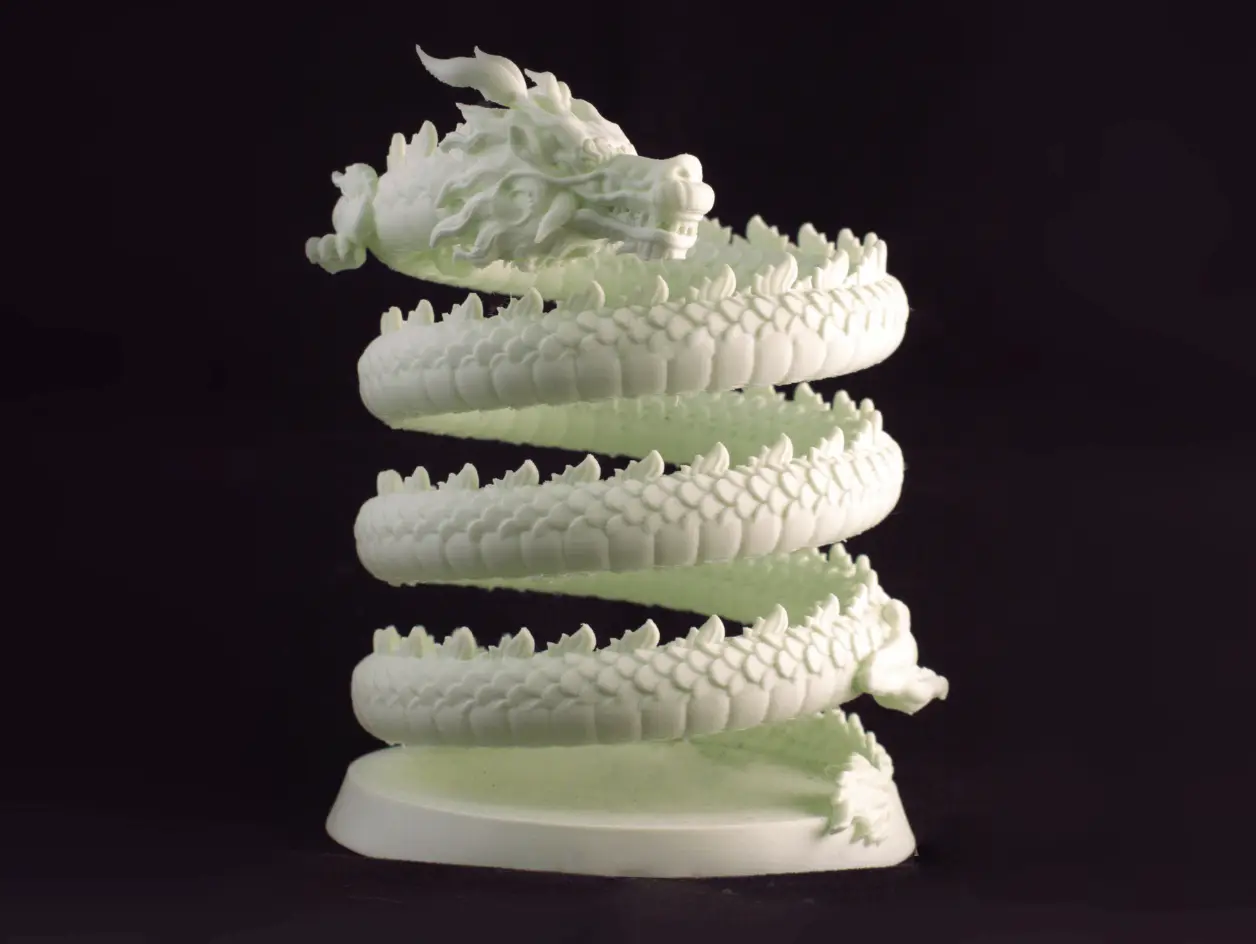

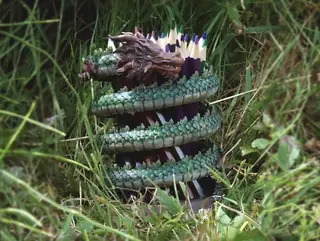

Dragon Pencil Cup [Cura 5.4 Tree Support]

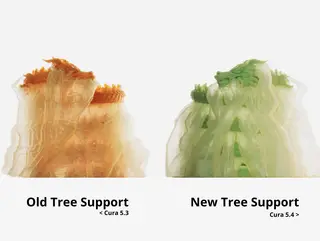

The Improved tree supports now use less material and print faster, making them easier to remove and resulting in a cleaner final print. Also a big shout out to community member @ThomasRahm who originally proposed and created these new improvements. You can use this model to test the newly introduced settings: Maximum Branch Angle Trunk Diameter Branch Diameter Branch Diameter Angle Preferred Branch Angle Diameter Increase to Model Minimum Height to Model Initial Layer Diameter Branch Density Tip Diameter Limit Branch Reach Optimal Branch Range Rest Preference

Are you curious to try it for yourself? Download UltiMaker Cura 5.4 here. Do you have some feedback for Cura? Leave a request on our GitHub. The model has been designed by Puru Maz or (@purumaz), to demonstrate the new Tree Support. Cura SettingValue Generate Support✅ Support StructureTree Maximum Branch Angle> 40 ° Branch Diameter5 mm Trunk Diameter25 mm Branch Diameter Angle7 ° Support PlacementTouching Buildplate Preferred Branch Angle27 ° Branch Density10 % Tip Diameter0.5 mm Limit Branch Reach✅ Optimal Branch Range30 ° Support Overhang Angle60 ° Support Density0 % Enable Support Brim✅ Support Brim Width0.75 mm Support Brim Line Count3 Support Z Distance0.2 mm Support X/Y Distance0.7 mm Support Distance PriorityZ overrides X/Y Minimum Support X/Y Distance0.2 mm Minimum Support Area0 Enable Support Interface❌ Fan Speed Override❌
