Dragon Burner CR-Touch mount bracket
por Matu_B en Printables
A bracket to mout a cr-touch/bl-touch to a dragon burner toolhead
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Matu_B.
Archivos (4)
- Dragon burner Cr-Touch mount bracket_V1.stl STL · 147 KB
- Dragon burner Cr-Touch mount bracket_0.4n_0.2mm_ABS_MINIIS_46m.bgcode BGCODE · 347 KB
- Dragon burner Cr-Touch mount bracket_0.4n_0.2mm_PETG_MINIIS_35m.bgcode BGCODE · 355 KB
- Dragon burner Cr-Touch mount bracket_0.4n_0.2mm_PLA_MINIIS_37m.bgcode BGCODE · 355 KB
- Categoría
- Para tu impresora
- Formatos
- STL, BGCODE
- Descargas
- 0
- Publicado
Sobre este modelo

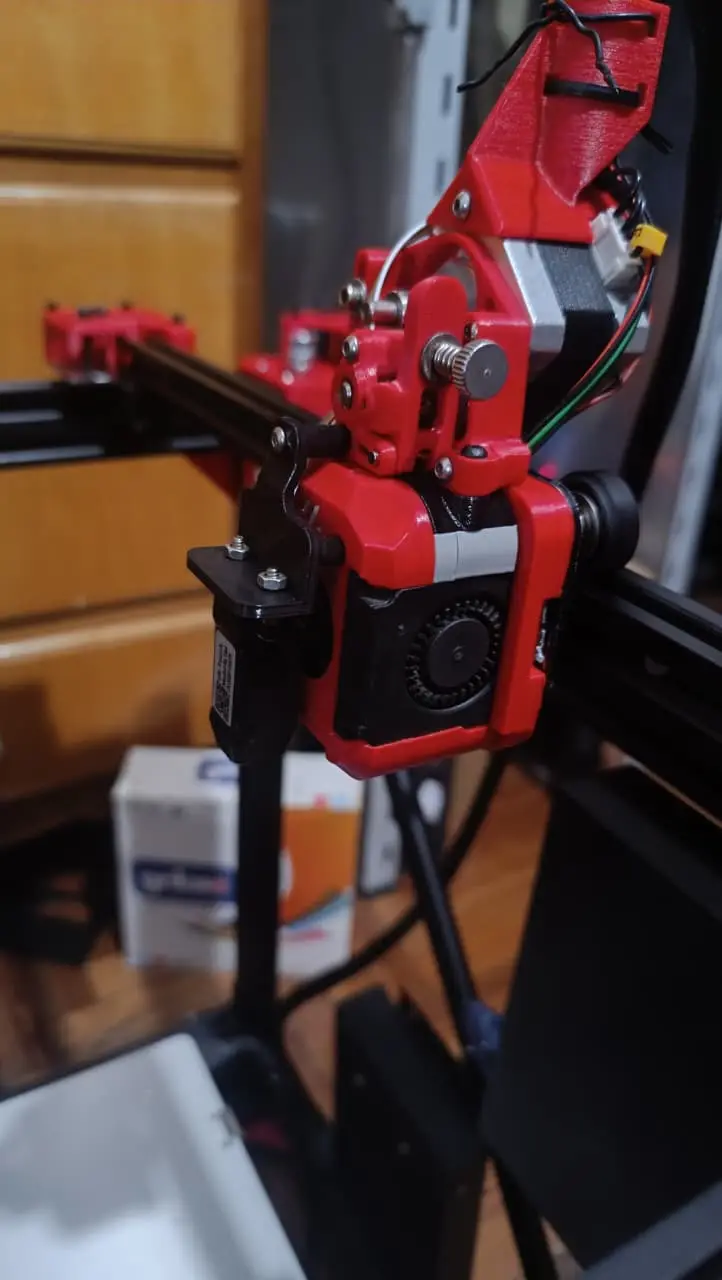

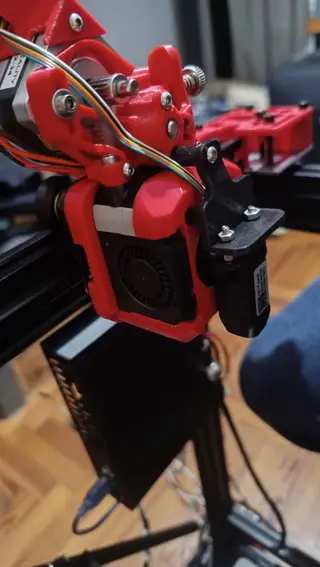

i'm currently building a large format corexy printer with a dragon burner toolhead with a shearpa super heavy extruder and i want to add a crtouch but none of the existing mounting solutions convince me, some limit the build area and others require to reprint de cowl, so i made this mounting bracket, it uses the screw holes of the cowl to align it and a bolt in the top that screws in the sherpa insert. At the moment is basic and rough, only a shape that fits the need and works, it also requires to put spacers in between the crtouch and the bracket. The problems i have enconuntered are, you cannot unsrew the cowl assembly without unscrewing the bracket, it can be solved by making the "pins" hollow, the cable runs in a akward position. is no so 100% stiff for my linking and it needs supports. Im currently working on the issues but it works for me now so it's gonna take a while.
