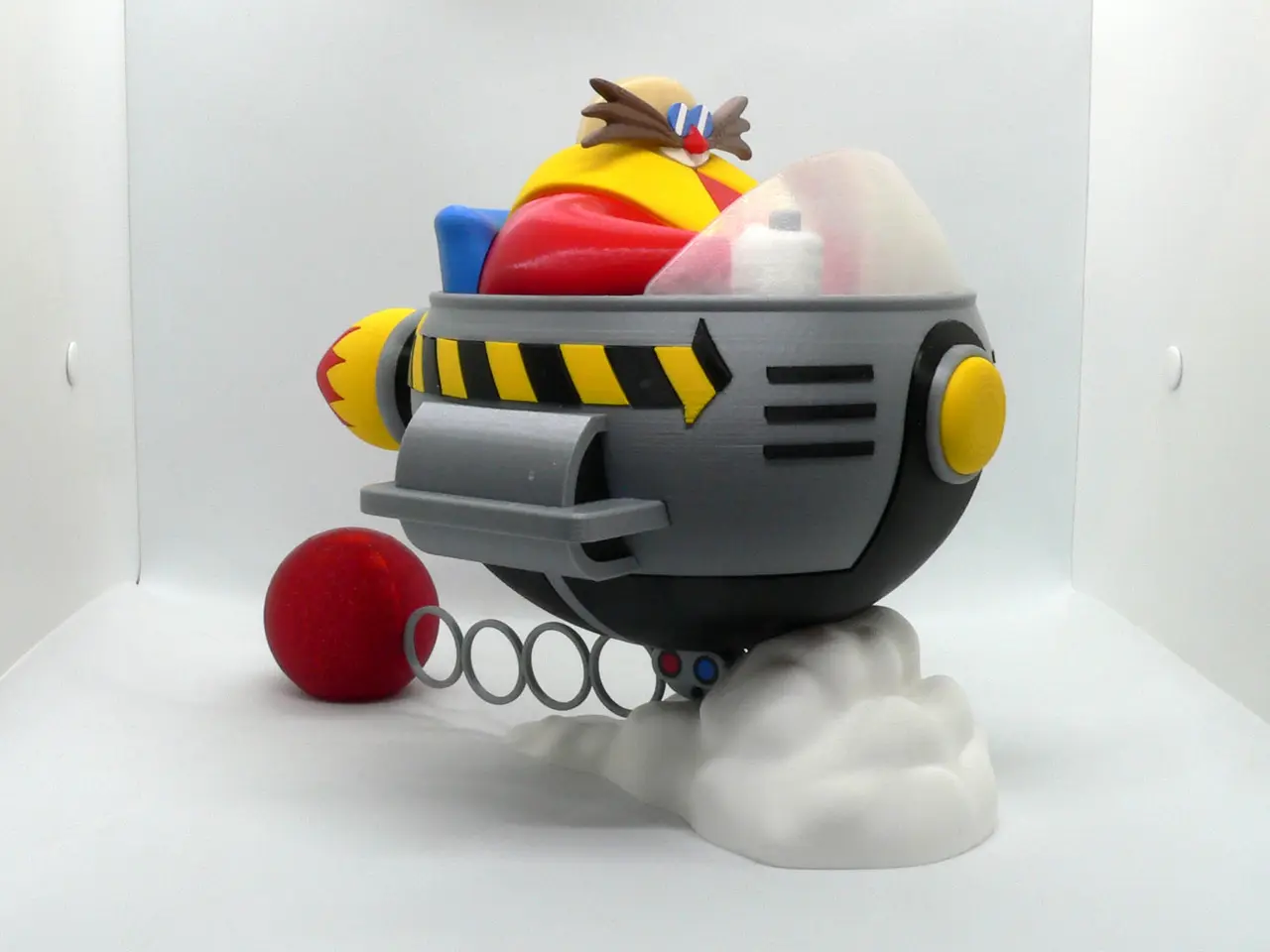

Dr Eggman (Robotnix) - Classic

Dr Eggman, a character from Sega's Sonic the Hedgehog series.

Doctor Ivo "Eggman" Robotnik is the main antagonist of Sega's Sonic the Hedgehog franchise. Eggman is a mad scientist who seeks to steal the mystical Chaos Emeralds, defeat Sonic the Hedgehog, and conquer the world.

I chose to model the earliest classic version of him, as he has changed quite a bit over the years.

No supports are required. See notes for printing considerations, considering that this is larger than my typical model.

If you have the proper filament colors, no painting is needed.

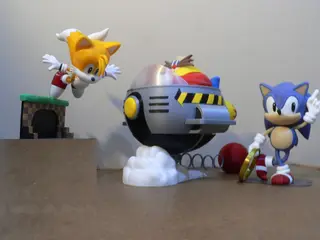

As presented, Dr Eggman is mostly in proportion to my previous Sonic and Tails models.

The assembled model with the base is 270mm long x 225mm tall x 220mm wide. All individual parts fit on smaller print beds, using the Prusa Mini as a guide.

Enjoy!

...........................................................................................................

Special shoutout to maker Benoît Lussier for providing QA printing and quality feedback. Special thanks to Jason McMillan (makerworld ID Gatekeeper) for creating the Bambu Print Profile.

...........................................................................................................

**Print Instructions:** Supports: No Resolution: .2mm (see below for printing tips) Infill: 15%

Notes:**

Refer to the notes below for a few important printing and assembly instructions.

...........................................................................................................

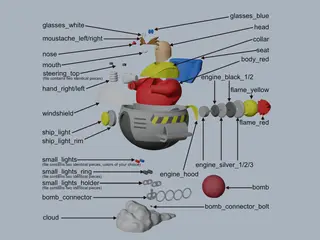

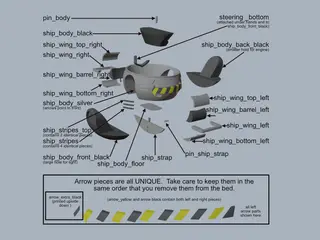

**Building the model**

Colors

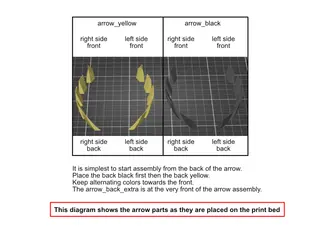

Black: (Devil Designs PLA - Black) ship_body_front_black ship_body_back_black body_black engine_black_1 engine_black_2 ship_wing_barrel_left ship_wing_barrel_right steering_top (contains two identical pieces) steering_bottom small_lights_ring (contains two identical pieces) arrow_black (**contains both left and right parts, all different sizes, see notes) arrow_extra_black (**contains both left and right parts, see notes) bomb_connector_bolt ship_stripes_top (contains two identical pieces) ship_stripes (contains four identical pieces ..

Yellow: (Devil Designs PLA - Bright Yellow) collar flame_yellow arrow_yellow (**contains both left and right parts, all different sizes, see notes) ship_light engine_hood small_lights (only need one of the two identical pieces in the file) ..

Red Sparkle: (Devil Designs PLA - Galaxy Red) bomb ..

Blue: (BambuLabs PLA - Blue) seat glasses_blue small_lights (only need one of the two identical pieces in the file) ..

Red: (Hatchbox PLA - True Red) body_red flame_red nose small_lights (only need one of the two identical pieces in the file) ..

White: (Devil Designs PLA - White) cloud hand_right hand_left mouth glasses_white (contains two identical parts) ..

Aluminum/Silver: (Devil Designs PLA - Aluminum) ship_body_silver engine_silver_1 engine_silver_2 engine_silver_3 ship_light_rim ship_strap bomb_connector small_lights_holder (contains two identical pieces) ship_body_floor ship_wing_right ship_wing_left ship_wing_bottom_right ship_wing_bottom_left ship_wing_top_right ship_wing_top_left

..

Brown: (PolyTerra PLA - Army Brown) moustashe_right moustashe_left ..

Skin: (Paramount3d PLA - Universal Beige) head ..

Transparent: (unknown PLA - clear) windshield ..

Any color (hidden pieces) pin_body pin_ship_strap ..

...........................................................................................................
