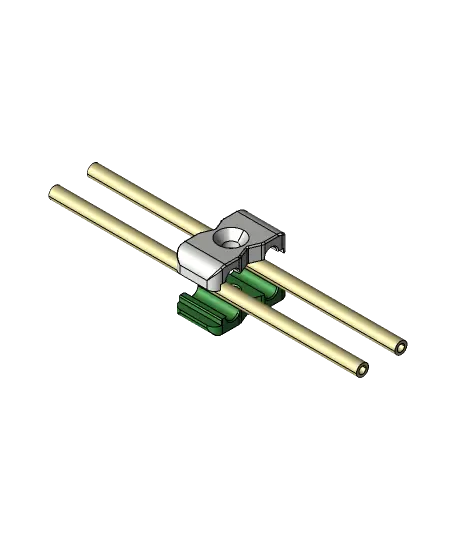

Double Brake Tubing Clamp - .1875" Dual Brake Line Clamps

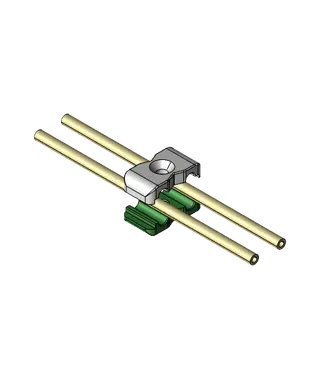

Building a Custom Car or Race Car? Restoring a Classic Car? These clamps are to attach and organize your 3/16" Brake Line Tubing (.1875" / 4.7mm). This design can clamp Two 3/16" Brake Lines together, or attach them to a Frame Rail / Body Panels.

Check out this video to see them in action: https://youtu.be/TBEDVi_e3qg

Uses #10-32 screws to clamp the two halves together while attaching to a Frame Rail or Body Panel. Use with a #10-32 Nut to clamp in thin air (such as coming off a master cylinder).

Recommend PETG, ABS, or ASA filament (or other suitable strength / temperature handling materials.) PLA is NOT Suitable for use in Automotive Applications.

WARNING: Due to variation in the printing process we are Not Resposible for improper use. FOR OFF ROAD USE ONLY. Use at your own risk.

--------------------------------------------------------------- - Necessary Parts (Affiliate Links): - #10-32 Counter Sunk Screws: https://amzn.to/37Sw3eI - #10-32 Nuts: https://amzn.to/3ANJ3Pa

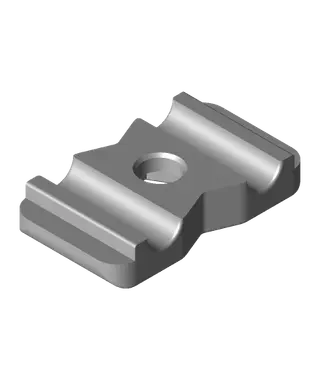

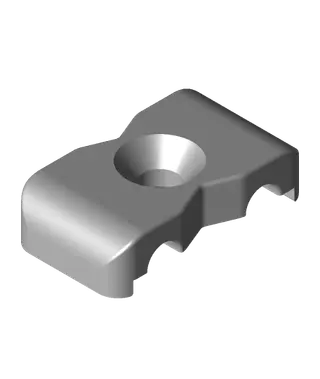

---------------------------------------------------------------- - INCLUDED FILES: - CAD STEP File to learn how I designed these. - Double Tube 3/16" Clamp Top - Double Tube 3/16" Clamp Bottom

---------------------------------------------------------------- - PRINT PARAMETERS: - PETG Minimum (ABS/ASA or other Higher Temp Material Recommended) - Supports required in the Nut Pocket on "Bottom" half. - 4 Perimeters MINIMUM - 40%+ Infill (I used Rectilinear)

Mine were printed in California Filament "Black" PETG.

---------------------------------------------------------------

Want to Support what I do? Check out my social medias please!

Link Tree: http://www.HotRodHippie.com/links

-------------------------------------------------------------- All of my Designs are covered by a Creative Commons Non-Commercial License. Sale of prints using my designs are the sole right of myself, the designer, and those I license to do so. Please understand every design is hours of work and multiple prototype prints to ensure quality. Unauthorized sales will result in new designs not being made public.

WARNING: Due to variation in the printing process we are Not Resposible for improper use. FOR OFF ROAD USE ONLY. Use at your own risk.

PLEASE Credit any and all Remixes of my designs: MandicReally
