Door Jamb Hanger for a 1/2" PVC Rod (snap-fit)
por sina chavoshi en Printables
Stepped, flared snap-fit C-clamps that grip a door jamb and hold a 1/2" PVC pipe rod across the doorway. No screws.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a sina chavoshi.
Archivos (1)
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

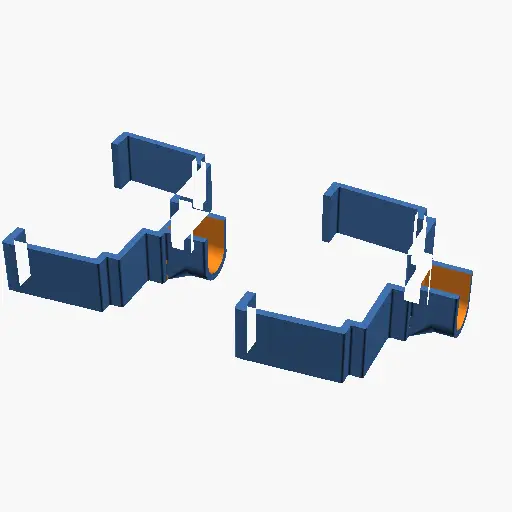

A left and right pair of stepped, flared snap-fit C-clamps that attach to a door jamb without screws. Each has a saddle that holds a horizontal rod such as a 1/2" PVC pipe, for temporary hanging or mounting across a doorway. - Set for a 128 mm door jamb and a 22 mm (1/2" PVC) rod
- Left and right hangers on one plate, 302 × 168 × 40 mm
Customize it in your browser This model is fully parametric. Measure your door and change jamb_width, the trim and stop sizes, and rod_od. Open it in the free OpenSCAD Playground, change the numbers and export your own STL: Open it in OpenSCAD Playground Source The OpenSCAD source and the rest of my models are on GitHub: github.com/SinaChavoshi/3d_printer_agentic_models Designed with AI assistance in OpenSCAD.
Descripción original del autor, publicada en Printables.
