Door catch
por Grant en Printables

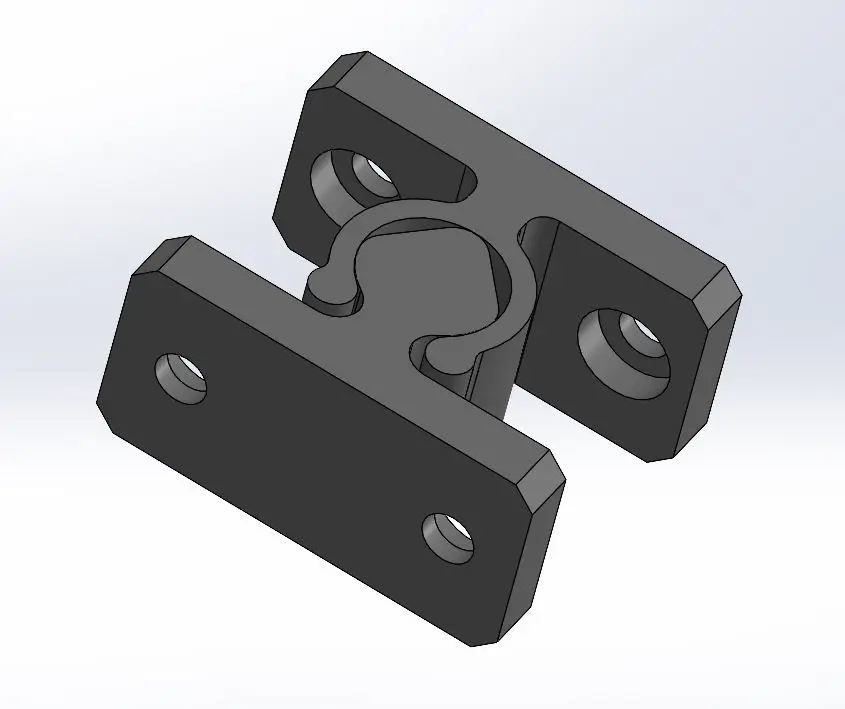

Simple door catch for securing a door or folding shelf.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Grant.
Archivos (9)
- Male catch - large.stl STL · 67 KB
- Female catch -large.stl STL · 93 KB
- Female catch right angle - large.stl STL · 105 KB
- Male catch-medium.stl STL · 68 KB
- Female catch-medium.stl STL · 92 KB
- Female catch right angle-medium.stl STL · 104 KB
- Male catch-small.stl STL · 68 KB
- Female catch-small.stl STL · 84 KB
- Female catch right angle-small.stl STL · 94 KB
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 10,373
- Publicado
Sobre este modelo

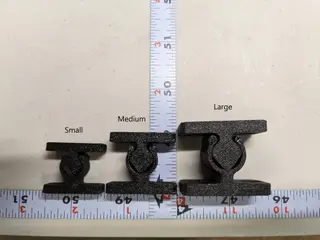

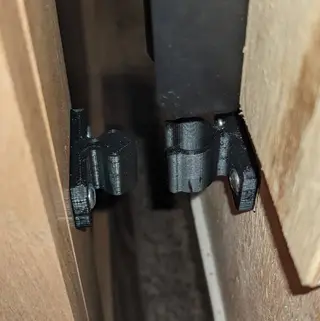

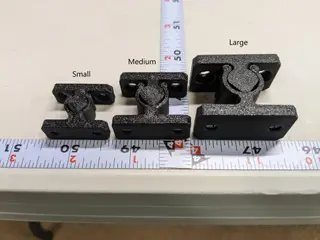

Use: This door catch was designed to secure a folding shelf in a travel trailer during transit. Can be used for other applications like keeping a cabinet door closed or main door open. Design Update: 6/2/2023-Due to how popular this model has been and some good feedback on a need for smaller sizes I made two new smaller designs than the original. The original is now the large and I have added a medium and small version. Large-With PETG material the force to separate the catch is around 12 lbs. Two female versions to account for straight or side mounting. Holes sized for #8 screws. Medium-With PETG material the force to separate the catch is around 6 lbs. Two female versions to account for straight or side mounting. Holes sized for #6 screws. Small-With PETG material the force to separate the catch is around 2 lbs. Two female versions to account for straight or side mounting. Holes sized for #4 screws. Print settings: Material: PETG Supports: No Layer height: .3 Infill: 30%
Descripción original del autor, publicada en Printables.
