Dome Housing for Underwater Pan and Tilt Camera
por Electrosync en Thangs
Model
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesDome Housing for Underwater Pan and Tilt Camera
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Electrosync.
Archivos (1)
- Dome Mount v17.step STEP · 30,7 MB
- Categoría
- Para tu impresora
- Formatos
- STEP
- Descargas
- 115
- Publicado
Sobre este modelo

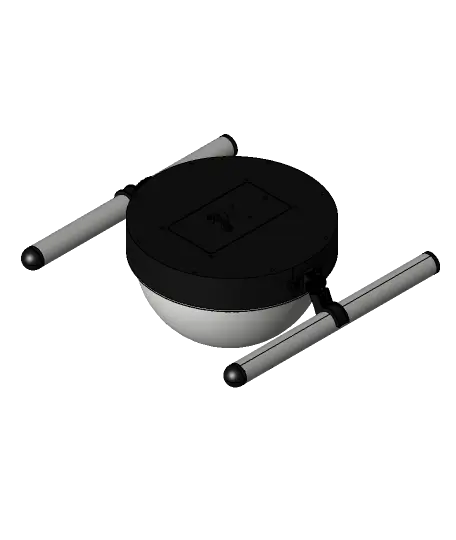

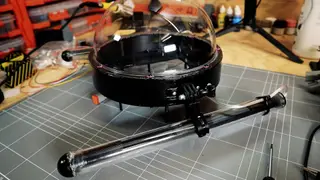

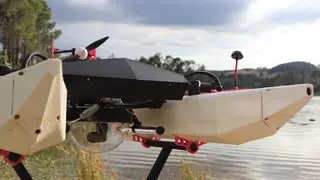

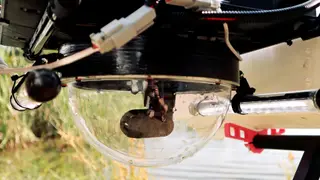

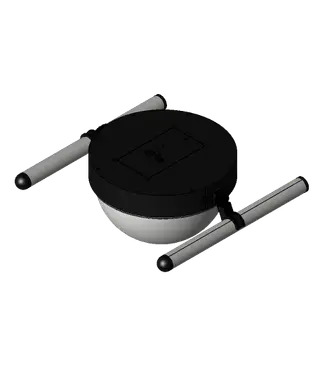

Model This is a model to house a 3 axis pan and tilt kit to suit a 200 mm diameter acrylic dome. Mounts on the side hold 25 mm OD acrylic tubes that house LED strips for underwater lighting. It's designed to mount underneath my 3D printed catamaran utility boat design here (https://thangs.com/electrosync/3D-Printed-RC-Catamaran-Utility-Boat-44098?manualModelView=true).
Build Video (https://youtu.be/SGGKnoSkMQ4)
Print Settings - Large parts – 0.6 mm nozzle, 0.36 mm layer height, no supports - Small parts - 0.4 mm nozzle, 0.2 mm layer height
Hardware Required - 200 mm vacuum formed acrylic dome - 2 x 300 mm x 25 mm OD acrylic tube - 8 x M5 x 70 mm bolts - 8 x M5 nuts - 4 x M3 x 15 screws - 4 x M3 nuts
