DJI Mini 3 Pro Ferma eliche superiore ed inferiore - DJI Mini 3 Pro Propeller holders (up/down) — modelo 3D

DJI Mini 3 Pro Ferma eliche superiore ed inferiore - DJI Mini 3 Pro Propeller holders (up/down)

por Cl@Gr3 en Printables

Ferma eliche per DJI Mini 3 Pro - Propellers holder for DJI Mini 3 Pro

Descargar gratis Ver en Printables

Todos los archivos (4) en un ZIP

Licencia

Solo uso personal

CC BY-NC 4.0 — Atribución, no comercial

Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a Cl@Gr3.

Archivos (4)
Categoría
Miniaturas
Formatos
STL
Descargas
880
Publicado

Sobre este modelo

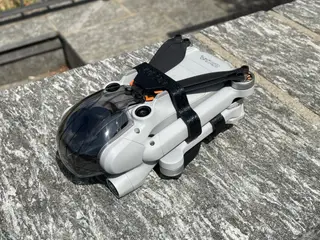

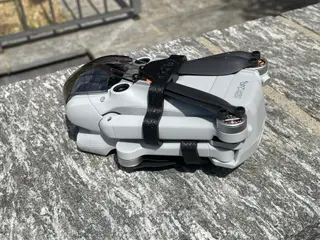

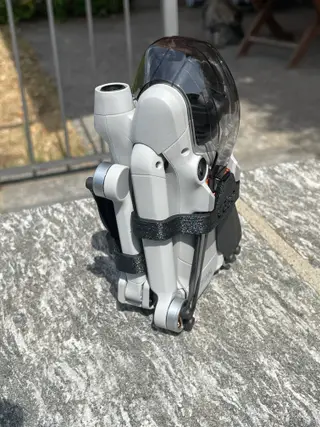

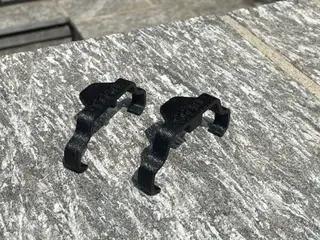

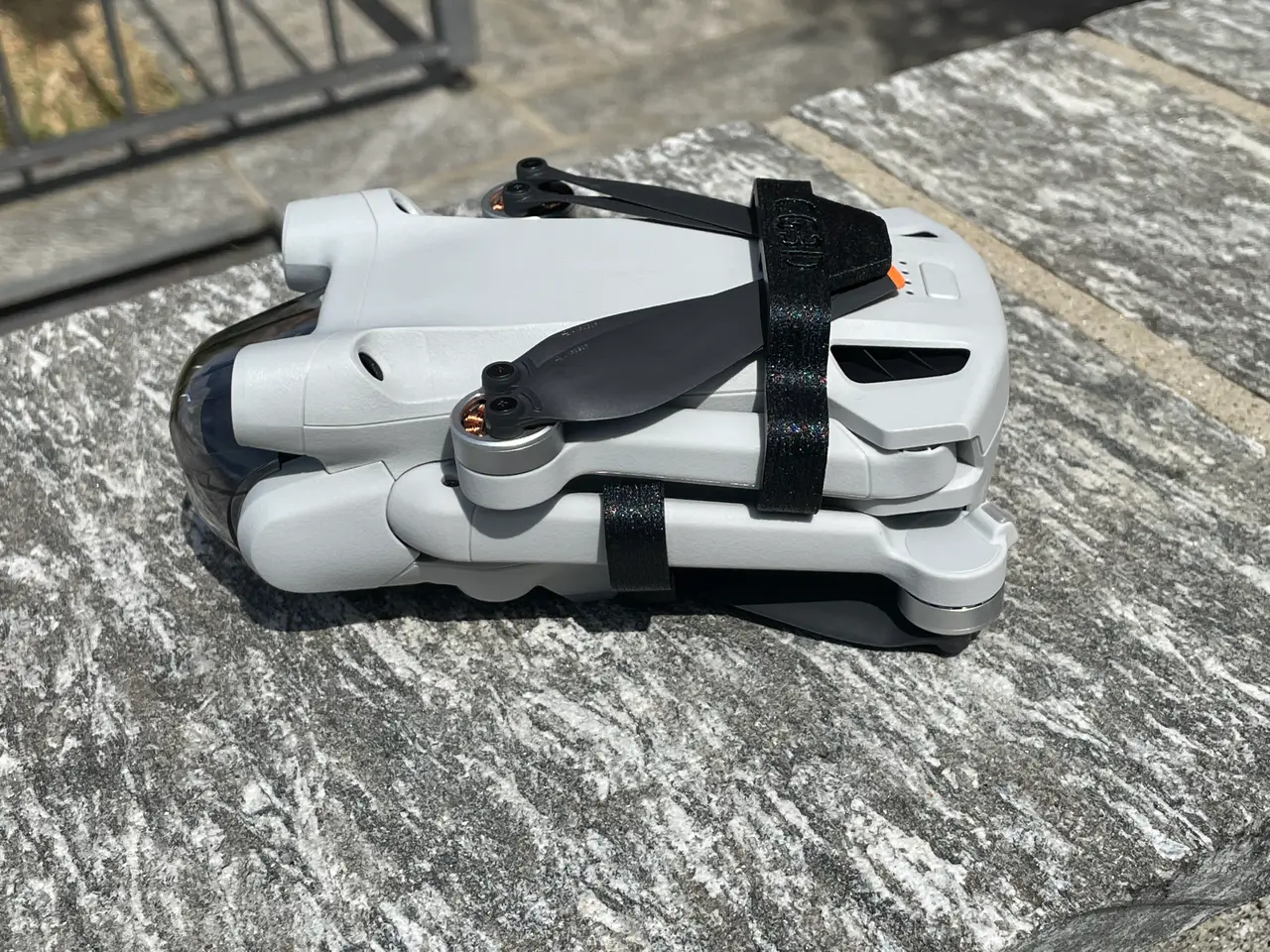

ITALIANO Ho disegnato questi ferma eliche basandomi sul modello di NassosT cambiando alcune misure aggiungendo una parte per proteggere anche l'estremità delle eliche. Ci sono due modelli, uno che riporta il mio logo ed uno neutro senza logo. Stampato in TPU filamento Extrudr Flex Medium (Shore A98) Black con riempimento 100% (2 perimetri, 4 top e bottom). Si aggancia perfettamente ai bracci del drone e protegge efficacemente le eliche. Non aumenta le dimensioni del drone che entra senza sforzo all'interno della borsa DJI Fly More Kit. Si potrebbe stampare anche in PETG calcolando bene perimetri e riempimento per rendere sufficientemente flessibile la stampa. Io personalmente ho preferito il TPU più delicato nel trattenere le eliche e meno aggressivo sui bracci del Mini 3 Pro. Tempi di stampa: 41 minuti la parte superiore 47 minuti la parte inferiore ENGLISH I designed these propellers holders based on the NassosT model by changing some measures by adding a part to protect better the tip of the propellers. There are two models, one with my logo and a neutral one without a logo. Printed in TPU Extrudr Flex Medium (Shore A98) Black filament with 100% filling (2 perimeters, 4 top and bottom). Perfectly attaches to the drone arms and effectively protects the propellers. It does not increase the size of the drone that effortlessly fits inside the DJI Fly More Kit bag. It could also be printed in PETG by calculating well perimeters and infill to make printing flexible enough. I personally preferred TPU because is softer to holding the propellers and less aggressive on the arms of the Mini 3 Pro. Print times: 41 minutes the top propellers holder 47 minutes the bottom propellers holder

Descripción original del autor, publicada en Printables.
