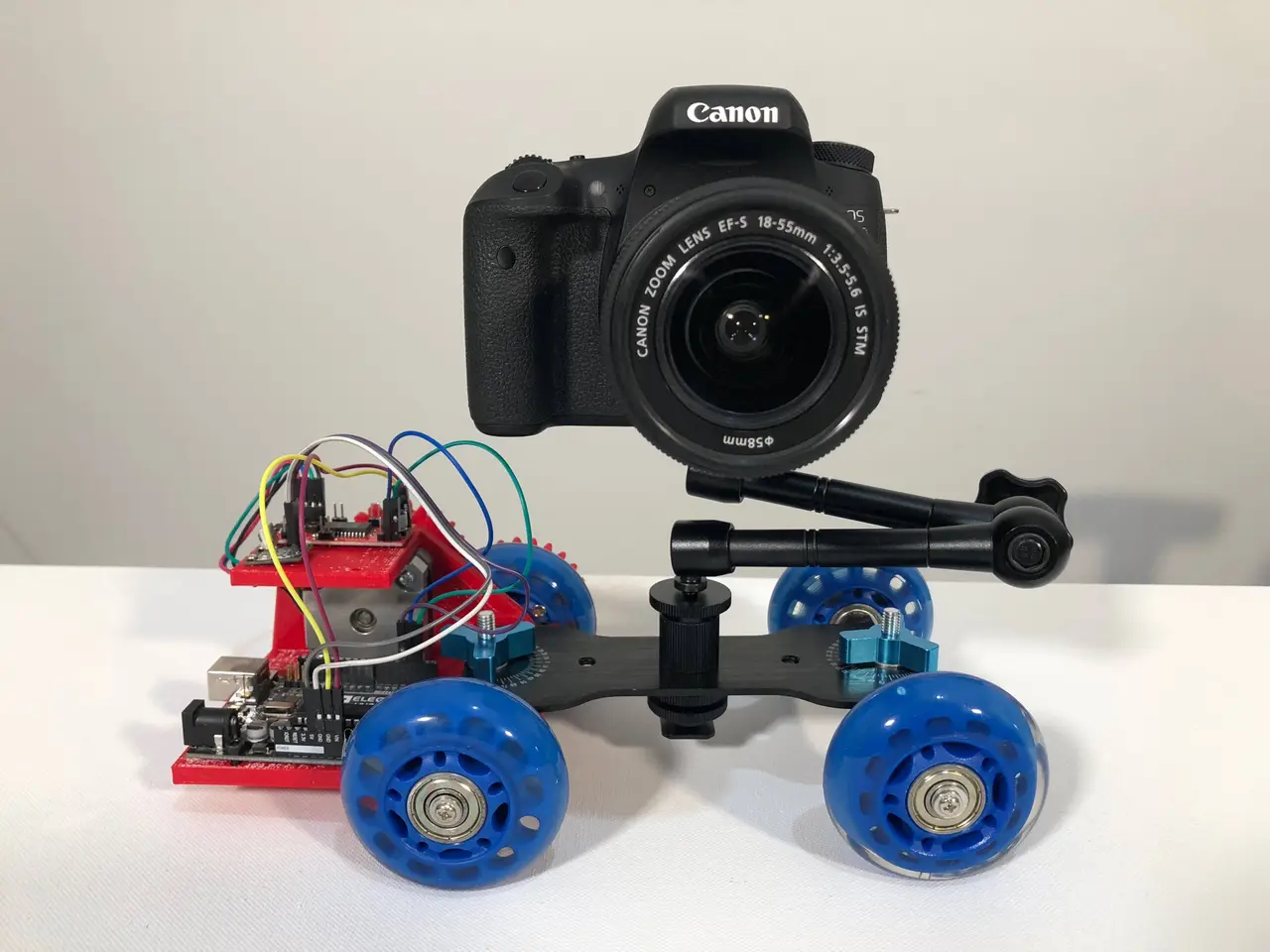

This is the first version of my remote controlled DSLR Dolly.
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMyMiniFactory Exclusive - Credit - Noremix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Joe Casha.
Archivos (3)
- Dolly Caddy V7.Stl STL
- Spur Gear Motor.stl STL
- Spur Gear Wheel.stl STL
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 426
- Publicado
Sobre este modelo
This is the first version of my remote controlled DSLR Dolly.
Very easy to print as it doesn't require support. PLA should work as no strain is put on the parts. You can see the build instructions here: https://www.youtube.com/watch?v=hhJ2yv65Dhg
Thing syou will need: Elegoo Uno or similar: http://geni.us/AmaznUno or http://geni.us/BGUno EasyDriver: http://geni.us/BGEasy or http://geni.us/AmazEasy Ir Remote and Sensor: http://geni.us/BGRemote or http://geni.us/AmazRemote Power Supply: http://geni.us/ArduinoPS or http://geni.us/AmazPSU Pancake Motor: http://geni.us/MotorSlim Dolly: http://geni.us/DSLRDolly
you'll also need some screws and nuts: 2 x M3 nuts 2 x M3x18 (I said M3x12 by mistake in the video) 7 x M3x8 2 x M2x1 3 x M3x28 (flat head)
Sketch and Schematics: http://geni.us/Sketch Sketch to get remote codes: http://www.circuitbasics.com/arduino-ir-remote-receiver-tutorial/
