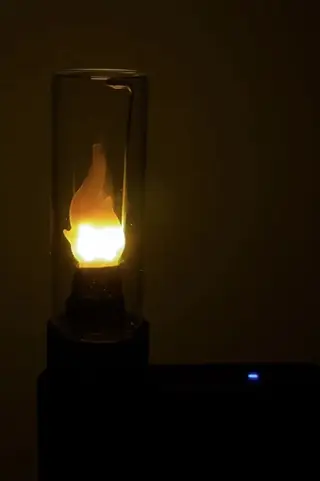

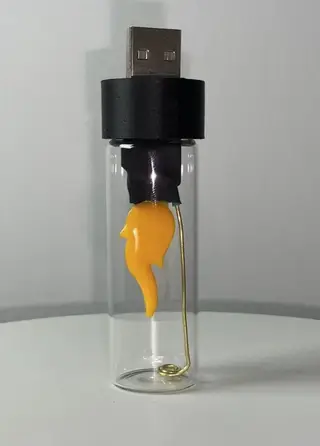

DIY Mini Touch Lamp inside a tiny glass bottle
A tiny USB-powered touch lamp with a realistic flame effect, made using a custom 3D printed cap and simple electronic components.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a bambu 3.
Archivos (2)
- 00 (1).3mf 3MF · 1,7 MB
- obj_1_00.stl STL · 3,2 MB
- Categoría
- Figuras y arte
- Formatos
- 3MF, STL
- Descargas
- 2
- Publicado
Sobre este modelo
A tiny USB-powered touch lamp with a realistic flame effect, made using a custom 3D printed cap and simple electronic components.
🛠 Components used
15ml glass bottle
https://s.click.aliexpress.com/e/_c3M986NX
https://s.click.aliexpress.com/e/_c3kzJRJP

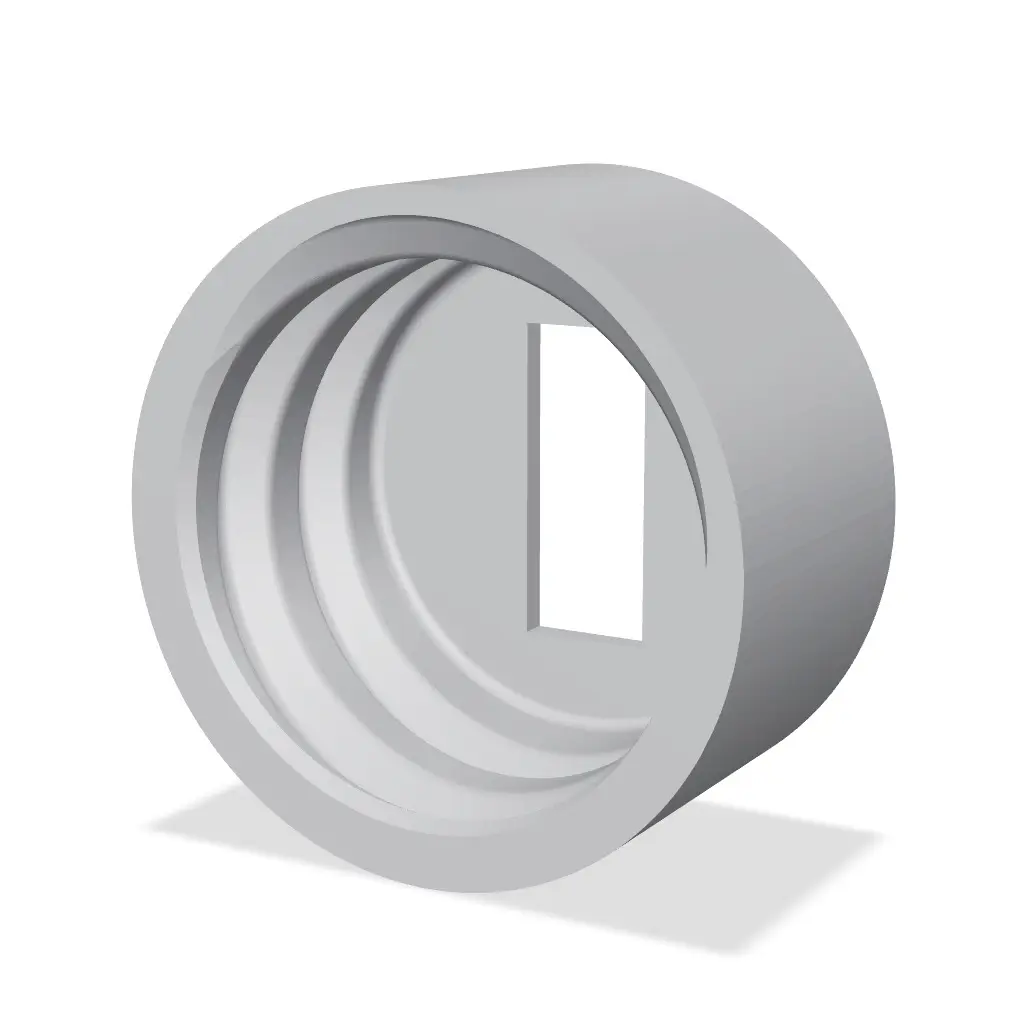

Custom 3D printed screw cap USB 2.0 male breakout board
https://s.click.aliexpress.com/e/_c2RVyQRt
TTP223 touch sensor module
https://s.click.aliexpress.com/e/_c2JlXS2J
https://s.click.aliexpress.com/e/_c4K89O2B
3V flame effect LED
https://s.click.aliexpress.com/e/_c3Yjvj0R
https://s.click.aliexpress.com/e/_c3UZN7Ej
220 ohm resistor
https://s.click.aliexpress.com/e/_c3UHh567
https://s.click.aliexpress.com/e/_c33mjUv9
Thin flexible wires Heat shrink tubing https://s.click.aliexpress.com/e/_c3VT33qL Copper touch wire(.5mm) https://s.click.aliexpress.com/e/_c3BQBZEL Soldering tools 📏 Bottle size Height: 7cm Diameter: 2.2cm 🔩 Thread specifications Outer diameter: 19mm Thread pitch: 5.08mm Designed in SolidWorks ✨ Features Touch control ON/OFF USB powered Realistic flame effect Warm cozy light Minimal compact design Custom 3D printed cap 🎬 Watch The Full Assembly Wiring Mounting And Testing Video In The Link Below https://www.youtube.com/watch?v=qwGiC-_jbZw
