DIY Electric Screwdriver – N20 / 18650 / TP4056
por th.karatsis en Thangs
DIY electric screwdriver enclosure designed around compact and commonly available electronics.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a th.karatsis.
Archivos (1)
- SCREWDRIVER5.stl STL · 438 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 4
- Publicado
Sobre este modelo
DIY electric screwdriver enclosure designed around compact and commonly available electronics.
The enclosure is designed to accommodate: - N20 geared DC motor - HR8833 motor driver - Two push buttons for direction/control - One 18650 lithium-ion cell - TP4056 charging module - USB Type-C charging access

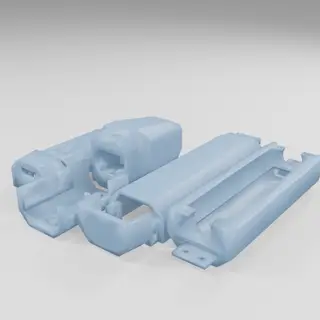

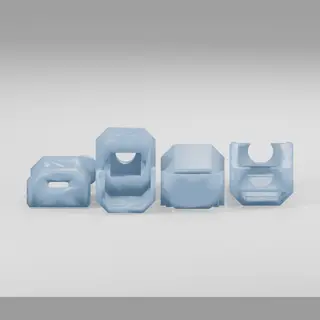

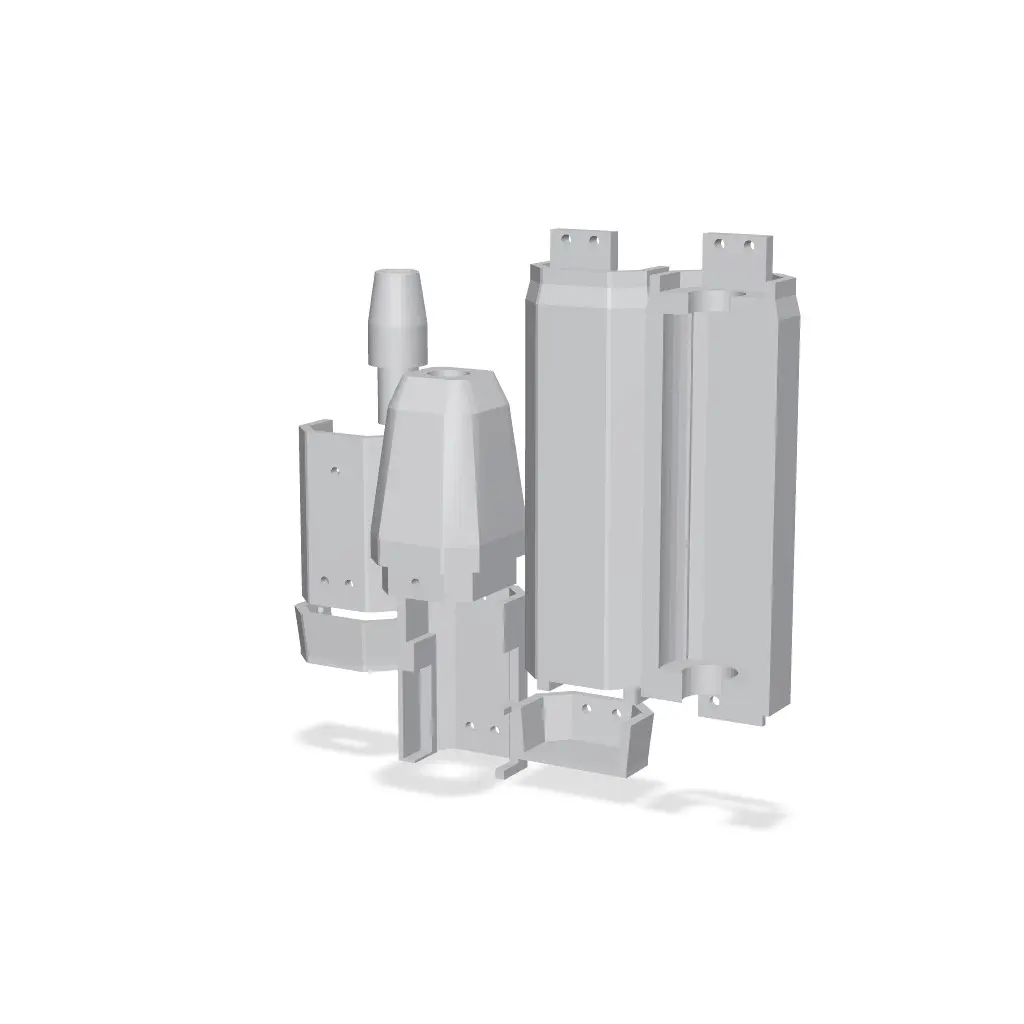

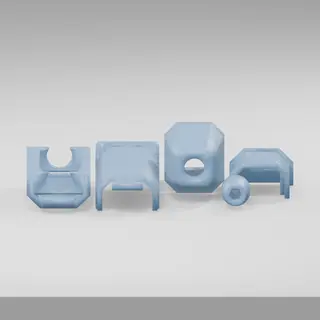

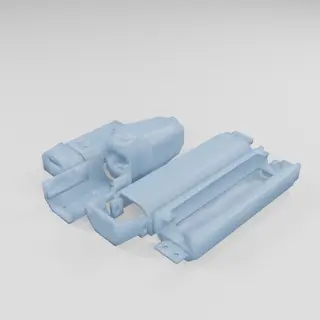

The design includes dedicated internal space for the 18650 battery, mounting/positioning space for the electronics, push-button openings, a motor section for the N20 geared motor, and an external USB Type-C charging opening.
This listing contains the digital 3D model only. Electronics, battery, motor, driver board, switches, charging module, screwdriver bit and other hardware are not included.
Component dimensions can vary between manufacturers, especially TP4056 boards, push buttons and N20 motors. Check the dimensions of your specific components before manufacturing the enclosure.
The design is intended for DIY and hobby use. Lithium-ion cells must be used with appropriate charging/protection circuitry and handled according to the battery manufacturer's safety requirements.
