DIY Dremel CNC
por Nikodem Bartnik en Thingiverse
Simple, inexpensive, and easy to build CNC machine - my main assumptions while designing this project. It turned out great and is very popular (build on 6 continents, still waiting for Antarctica). I am really proud of this one :) If you need more info check out those links: Dremel CNC parts list...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Nikodem Bartnik.
Archivos (23)
- case.stl STL · 396 KB
- case_top.stl STL · 375 KB

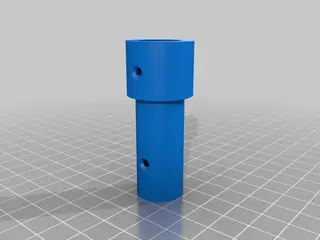

- coupler.stl STL · 690 KB
- corner_connector.stl STL · 395 KB
- y_axis_motor_holder_left.stl STL · 577 KB
- y_axis_rod_holder_left.stl STL · 1005 KB
- y_axis_rod_holder_right.stl STL · 1024 KB
- y_axis_motor_holder_right.stl STL · 607 KB
- x_axis_carriage_right.stl STL · 762 KB
- x_axis_carriage_left.stl STL · 669 KB
- z_axis_carriage.stl STL · 1,5 MB
- spindle_carriage.stl STL · 802 KB
- clamp.stl STL · 426 KB
- TOOL_bed_drill_tool.stl STL · 36 KB
- TOOL_drill_support.stl STL · 211 KB
- TOOL_pencil_holder.stl STL · 333 KB
- TOOL_pen_holder.stl STL · 324 KB
- cnc_v44.f3d F3D · 19,9 MB
- cnc_1_v57.step STEP · 13,1 MB
- cnc_1_v56.iges IGES · 19,6 MB
- everything.zip ZIP · 8,6 MB
- 500w_spindle_power_supply_holder.stl STL · 114 KB

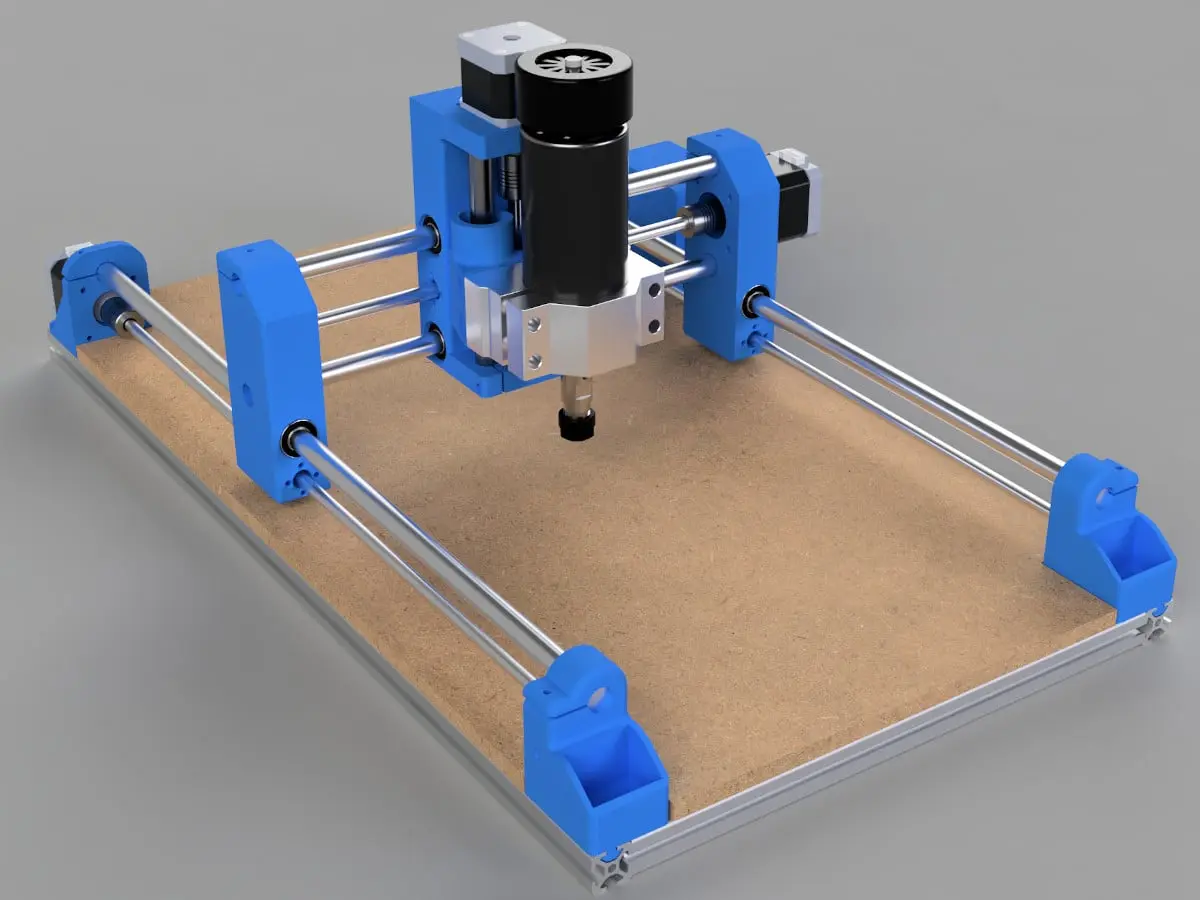

- 500W_spindle_mount.stl STL · 721 KB
- Categoría
- Herramientas
- Formatos
- STL, F3D, STEP, IGES, ZIP
- Descargas
- 210,917
- Publicado
Sobre este modelo
Simple, inexpensive, and easy to build CNC machine - my main assumptions while designing this project. It turned out great and is very popular (build on 6 continents, still waiting for Antarctica). I am really proud of this one :) If you need more info check out those links: Dremel CNC parts list: https://bit.ly/2Hmlbcw New spindle: https://amzn.to/45drKsO Facebook group: https://bit.ly/2JOdv5s Instructables: https://bit.ly/2wvViAF You can also check out my new, bigger CNC project - IndyMillt: https://indystry.cc/indymill/ All of my videos about this project: https://youtu.be/Njs0FU6PfPg https://youtu.be/I7woln6urVY https://youtu.be/GsKiz49x8rI https://youtu.be/xfQ0YosR6us https://youtu.be/239aFAqYBpQ https://youtu.be/TXEHunJmjcg https://youtu.be/Fs9dosQYtGU YouTube: https://goo.gl/x6Y32E Facebook: https://goo.gl/ZAQJXJ Instagram: https://goo.gl/JLFLtf Changes: 16.03.2021: I added the 500W spindle holder and holder for its power supply, looks like I forgot to add it here previously. It's been a long time but maybe someone will find it useful :) 12.02.2019: I changed some STL files, fixed naming of them. x axis carriage right was changed, I made the cavity for stepper smaller so that there is more working area. Small changes to the spindle carriage including smaller holes for bearings so that they are not loose. I also uploaded .step and .iges files. I deleted old STL files from Thingiverse to keep it cleaner. All of the old files can be found in everything.zip
Descripción original del autor, publicada en Thingiverse.
