DIY Adjustable Power Supply Case

por Bambu3Design en MyMiniFactory

I designed this enclosure for a DIY Adjustable Power Supply based on the LM2596 Constant Voltage / Constant Current module.

Descargar en MyMiniFactory

MyMiniFactory entrega los archivos a usuarios con cuenta gratuita

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Bambu3Design.

Archivos (3)
  • obj_1_Part1.STL.stl STL
  • obj_2_Part2.STL.stl STL
  • Part30.3mf 3MF
Categoría
Tecnología
Formatos
STL, 3MF
Descargas (todas las plataformas)
16
Publicado

También en

Sobre este modelo

I designed this enclosure for a DIY Adjustable Power Supply based on the LM2596 Constant Voltage / Constant Current module.

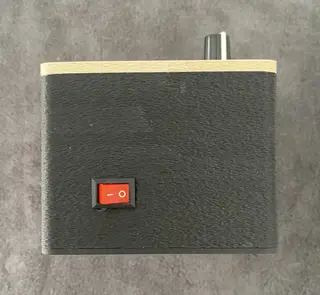

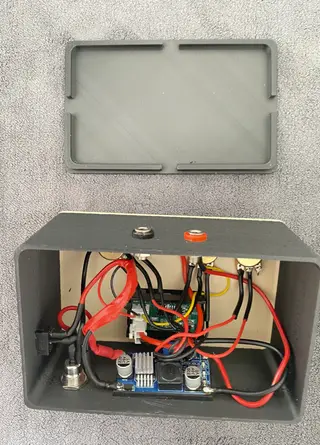

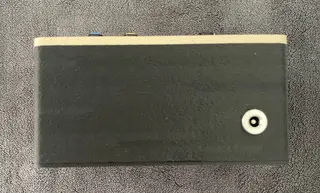

This case is designed to hold all the components including the LM2596 module, voltmeter/ammeter display, potentiometers, switch, banana sockets, and DC input jack.

The enclosure is compact, easy to print, and designed for front panel control of voltage and current.

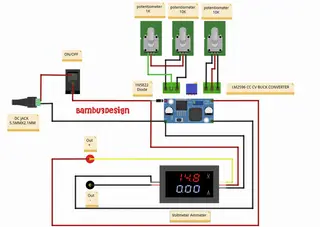

You can watch the full build video and wiring tutorial on my YouTube channel.

Components used in this project:

• LM2596 CC/CV Step-Down Module

https://s.click.aliexpress.com/e/_c4WxW1rL

https://s.click.aliexpress.com/e/_c2u0W8ez

• Digital Voltmeter Ammeter Display

https://s.click.aliexpress.com/e/_c40uTpRT

https://s.click.aliexpress.com/e/_c4O3jRRx

• 10K Potentiometer (Current Control) (Voltage Control)

https://s.click.aliexpress.com/e/_c2xGGMad

https://s.click.aliexpress.com/e/_c4sZfcKz

• 1K Potentiometer (Fine Voltage Control)

https://s.click.aliexpress.com/e/_c3Jy3mz7

https://s.click.aliexpress.com/e/_c3KRWX6D

• Protection Diode(1N5822)

https://s.click.aliexpress.com/e/_c4LQrzmp

https://s.click.aliexpress.com/e/_c3A8PNhJ

• Power Switch

https://s.click.aliexpress.com/e/_c3y67ksZ

https://s.click.aliexpress.com/e/_c3CipEVL

• DC Input Jack

https://s.click.aliexpress.com/e/_c3UQ1hzf

https://s.click.aliexpress.com/e/_c4CE9gmH

• Banana Sockets (Output)

https://s.click.aliexpress.com/e/_c4LbZWjJ

https://s.click.aliexpress.com/e/_c3J0oMW9

• Wires (18 SWG OR 16 SWG)

Descripción original del autor, publicada en MyMiniFactory.
