Dishwasher Dirty/Clean Automatic Sign

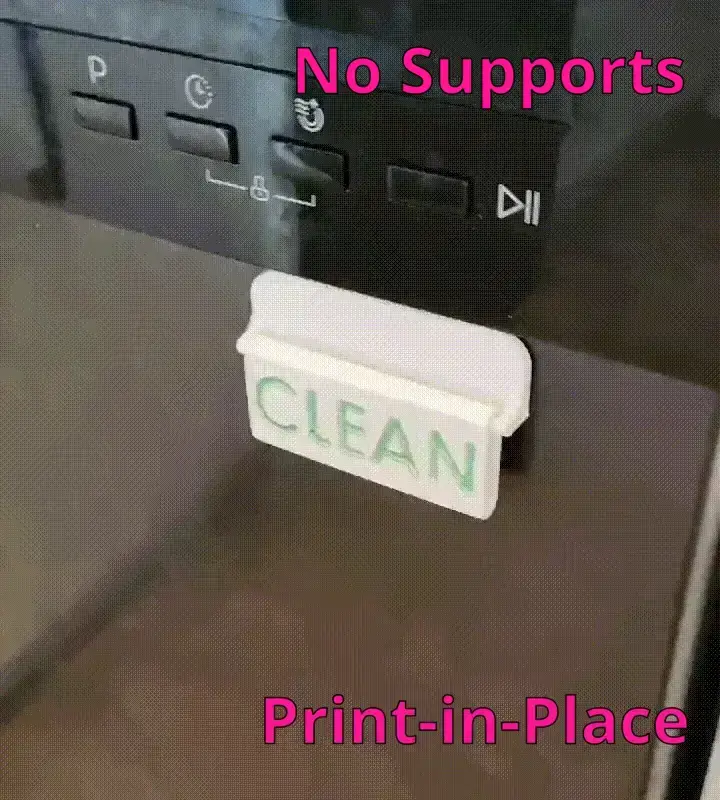

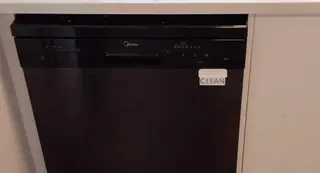

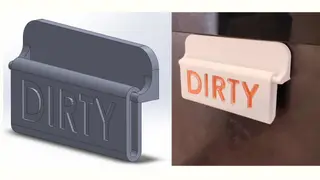

Magnetic flip sign for a dishwasher to show if clean or dirty dishes are inside. (made by a human not ai)

UPDATES:

Update 4: Released standard files Version 2 (V2) no longer needs support. Update 3: Released Print in Place (PIP) files NOTE: PIP and standard files are incompatible with each other

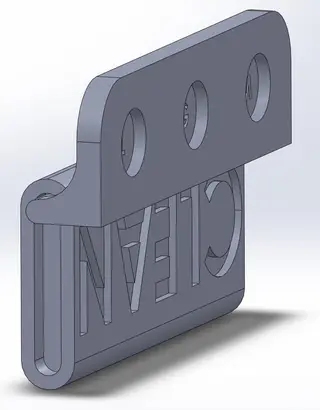

Update 2: Removed v3 needs a TINY adjustment Update 1: Added v3. (v3 at end of file name) files. This has the sign printing vertical on one of the edges and will need zero support material. Also the hanger is now double cammed to allow for TRULY automated movement of the sign (this may not be everyone's preference).

INSTRUCTIONS:

Print-In-Place - layer height 0.2mm (or less). Print flat side down and enjoy. Only takes 1hr45min. Standard files - layer height 0.2mm (or less). Share the build plate or print 1 after the other. Text should be printed vertically. Snap in place. Magnets are 9.4mmx1.9mm. Holes are 9.7mmx1.8mm (glue needed.) (third magnet may not be necessary to hold it securely but i have kids so thought extra holding power would be good.)

If you'd like to print each piece separately or with color use the standard V2 files.

COMPATIBILITY:

v1 and v2 are backwards and forwards compatible. Print-In-Place is a different design and is not compatible with other designs (Also you are unable to separate PIP file for a snap fit, Not sure why you would want this anyway)

Inspired by AlexY (@AYMakes) on printables but the design is 100% my own from scratch
