Differential Gear W/Drive Shaft
por Lawrence Glauberman en Thingiverse
This is an educational working model of a differential gear, frequently used in an automotive drivetrain. It's a lot of parts, so a lot of pieces to print. Provided are hi resolution STEP and STL files. (23) #6 x 5/8" metal screws and (1) #8 x 1" metal screw are required for assembly. The motor...
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a Lawrence Glauberman.
Archivos (38)

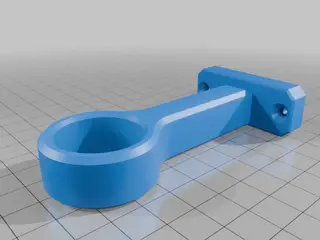

- Differential_-_Axle_Support.stl STL · 4,2 MB
- Differential_-_Axle.stl STL · 39,9 MB
- Differential_-_Base.stl STL · 34,4 MB
- Differential_-_Housing_-_Rear.stl STL · 63,3 MB
- Differential_-_Motor_Mount.stl STL · 12,7 MB
- Differential_-_Motor_Shaft_Joint.stl STL · 22,4 MB
- Differential_-_Pinion_Gear_Lock.stl STL · 3,4 MB
- Differential_-_Ring_Gear_-_DS.stl STL · 185,7 MB
- Differential_-_U_Joint_Bearing.stl STL · 171 KB
- Differential_-_Wheel.stl STL · 14,2 MB
- Differential_-_Housing_-_DS.stl STL · 76,6 MB
- Differential_-_Housing_-_Front.stl STL · 233,1 MB
- Differential_-_Housing_-_PS.stl STL · 78,7 MB
- Differential_-_Motor_Yoke.stl STL · 77,0 MB
- Differential_-_Pinion_Gear.stl STL · 152,5 MB
- Differential_-_Pinion_Housing.stl STL · 240,2 MB
- Differential_-_Ring_Gear_-_PS.stl STL · 190,0 MB
- Differential_-_Drive_Gear_Yoke.stl STL · 114,6 MB
- Differential_-_Drive_Gear.stl STL · 148,8 MB
- Differential_-_Axle_Support.STEP STEP · 94 KB
- Differential_-_Axle.STEP STEP · 446 KB
- Differential_-_Base.STEP STEP · 1,2 MB
- Differential_-_Drive_Gear_Yoke.STEP STEP · 1,2 MB
- Differential_-_Drive_Gear.STEP STEP · 4,8 MB
- Differential_-_Housing_-_DS.STEP STEP · 1,3 MB
- Differential_-_Housing_-_Front.STEP STEP · 2,5 MB
- Differential_-_Housing_-_PS.STEP STEP · 1,3 MB
- Differential_-_Housing_-_Rear.STEP STEP · 1,1 MB
- Differential_-_Motor_Mount.STEP STEP · 132 KB
- Differential_-_Motor_Shaft_Joint.STEP STEP · 7,4 MB
- Differential_-_Motor_Yoke.STEP STEP · 767 KB
- Differential_-_Pinion_Gear_Lock.STEP STEP · 135 KB
- Differential_-_Pinion_Gear.STEP STEP · 2,6 MB
- Differential_-_Pinion_Housing.STEP STEP · 17,0 MB
- Differential_-_Ring_Gear_-_DS.STEP STEP · 8,9 MB
- Differential_-_Ring_Gear_-_PS.STEP STEP · 7,8 MB
- Differential_-_U_Joint_Bearing.STEP STEP · 33 KB
- Differential_-_Wheel.STEP STEP · 43 KB
- Categoría
- Repuestos
- Formatos
- STL, STEP
- Descargas (todas las plataformas)
- 948
- Publicado
También en
Sobre este modelo

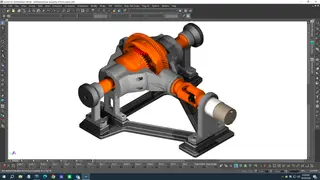

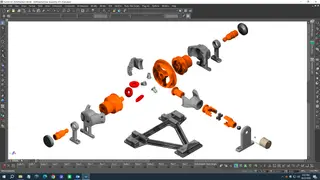

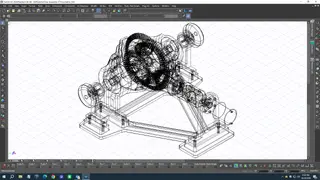

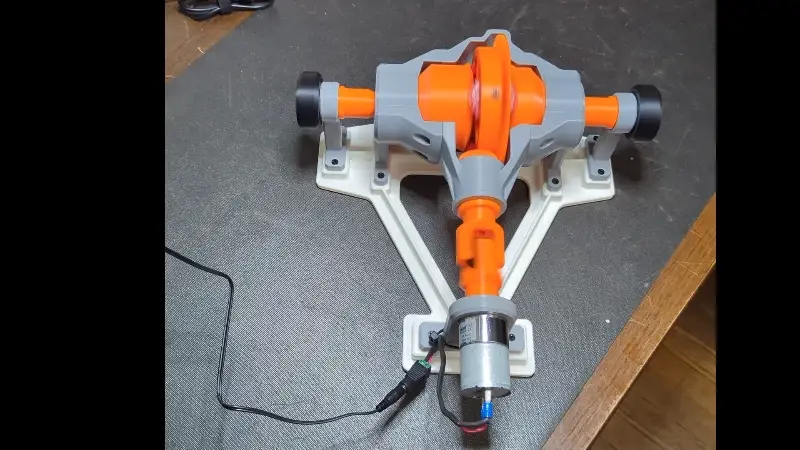

This is an educational working model of a differential gear, frequently used in an automotive drivetrain. It's a lot of parts, so a lot of pieces to print. Provided are hi resolution STEP and STL files. (23) #6 x 5/8" metal screws and (1) #8 x 1" metal screw are required for assembly. The motor used in the demonstration is from Amazon found here: https://www.amazon.com/dp/B072R5G5GR Do not scale down or the model will most likely not be functional. A demonstration video for assembly can be found here: https://www.ligcomputer.com/downloads/DifferentialV7.mp4 The model shown was printed out of ABS with a .16 layer height and 5 wall loops. Please like and upload a make!
