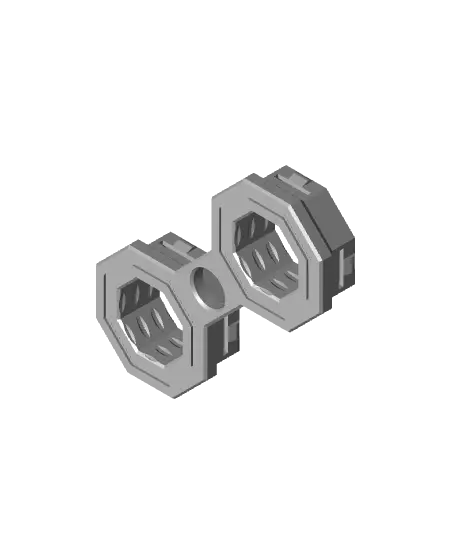

Diagonal Raised Snap
por Jonathan K en Thangs

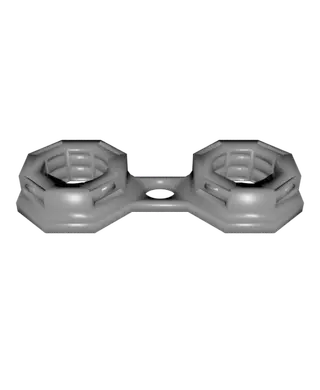

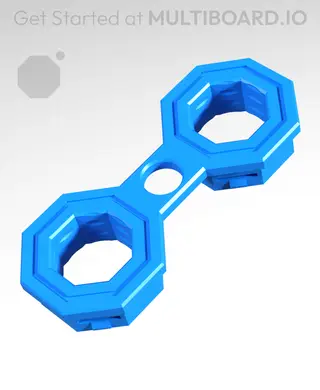

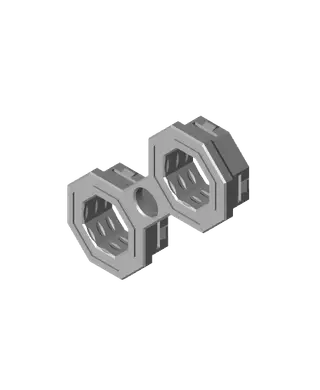

The “diagonal snap connector” is used to connect two tiles together by linking two diagonal snaps. You can attach it to the wall using a 4.5 mm screw-in fastener or with a screw through the pegboard hole in the center.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- Diagonal Snap Connector.stl STL · 463 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 3,948
- Publicado
Sobre este modelo
The “diagonal snap connector” is used to connect two tiles together by linking two diagonal snaps. You can attach it to the wall using a 4.5 mm screw-in fastener or with a screw through the pegboard hole in the center.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
Descripción original del autor, publicada en Thangs.
