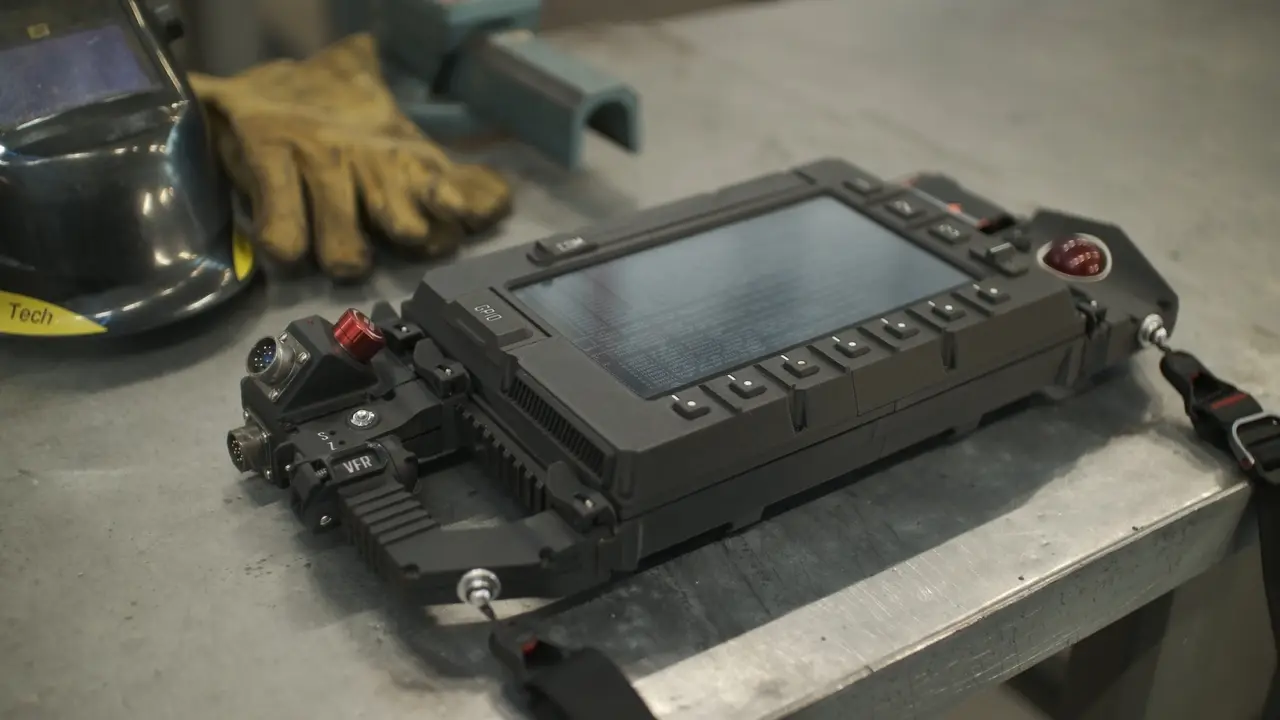

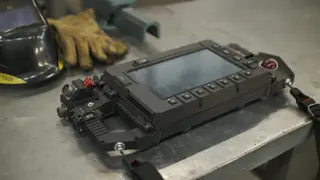

DFCD Cyberdeck

what does it do? It runs freecad of course :) i developed it mostly to be able to open and modify CAD files while in the workshop, but i also use it to browse the web, opening PDF's and genral computing. It has a keyboard hidden under the sliding screen, as i rarley use a keyboard, but i did want to have a full depth mechanical keyboard whenever i actually use one. The machine is modular so that one can build modules that fits your personal needs. I hope people migth feel inspired to make their own expansion-modules. ramework cyberdeck BOM Note! For the 3mm woodscrew assembling most plastic parts, I recommend buying a box of 100pcs 25mm long ones, and just snip them to the right length where needed. 01 Chassis -3mm x 25mm countersunk woodscrew x21 -3mm x 12mm countersunk woodscrew x2 -3mm x 10mm countersunk woodscrew x2 -M3 x 13 countersunk x 6 -M6 x 10 low head unbrako x6 -LM8LUULinear Ball Bearings 8 x 15 mm x 2 -4mm spring x4 -Rasberry pi 5 -NOS 450 TKL keyboard -LEMO 0b 4pin x4 -Small 4 port usb hub -Micro HDMI to HDMI adapter -Micro HDMi to ribbon connector 90 degree / HDMI ribbon cable 50 cm / Ribbon cable to HDMI male plug -joy it PiEnergy-Mini powersupply x1 02 Screen -M3 nuts x 8 -M3 x8 flathead x 8 -Ø8 L221 rods -3mm x 10mm countersunk woodscrew x10 -3mm x 18mm countersunk woodscrew x4 -3mm x 9mm countersunk woodscrew x15 11x 12x10 tactile buttons -10.1 inch IPS touch LCD screen -M3x47 cap head 03 External connection module -3mm x 16mm countersunk woodscrew x4 -3mm x 14mm countersunk woodscrewx2 -M3x10 flat head x8 -16 mm emergency stop button panel mounted -3mm LED x 1 -M3x40 cap head x 1 -LEMO 0b 4pin -2x Y2M 8 pin panel mount connector. -RPI pico 04 Handle module -6mm threaded toggle switch -7mm threaded encoder -10mm button -Switch omron d2fc-f-7n -3mm LED x 2 -3mm x 17mm countersunk woodscrew x5 -M3x10 flat head x 2 -M3 x 22 flat head -M3 locknut -M3x8 countersunk x 4 -M3x40 cap head x 2 -6mm spring -RPI pico -LEMO 0b 4pin 05 Trackball module -16mm button x2 -10mm button -6mm threaded toggle switch -3mm LED x 1 -3mm x 20mm countersunk woodscrew x4 -3mm x 18mm countersunk woodscrew x2 -M3x40 cap head x 2 -LEMO 0b 4pin -Logitech trackman marble 06 Battery Module -16mm button -LEMO 0b 4pin -3mm x 20mm countersunk woodscrew x6 -M3x40 cap head x 2 -3mm LED x 5 -4mm spring from ball pen -3mm pogo pin solder type x2
