Desktop Truss Rig modules 1/3rd scale
por IonNight en Printables
Desktop modular truss rig to make you space into an auto show stand etc
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a IonNight.
Archivos (22)
- Truss_3rd_scale_project_P1S.3mf 3MF · 32,8 MB
- Truss_connecting_pieces_9_sets_v2.3mf 3MF · 632 KB
- Truss_3rd_Module_table_base_large.stl STL · 3,0 MB
- Truss_3rd_Module_table_base_simple.stl STL · 2,7 MB
- Truss_3rd_Module_h100.stl STL · 9,7 MB
- Truss_3rd_Module_h150.stl STL · 11,1 MB
- Truss_3rd_Module_h200.stl STL · 9,5 MB
- Truss_3rd_Module_3way_corner_left.stl STL · 17,5 MB
- Truss_3rd_Module_3way_corner_right.stl STL · 17,5 MB
- Truss_3rd_Module_t-connector.stl STL · 18,8 MB
- Truss_3rd_Module_double_t-connector.stl STL · 21,5 MB
- Truss_3rd_Module_4-way.stl STL · 20,9 MB
- Truss_3rd_Module_2-way_90_degree_A.stl STL · 35,2 MB
- Truss_3rd_Module_2-way_90_degree_B.stl STL · 35,2 MB
- Truss_3rd_Module_2-way_90_degree_C.stl STL · 35,2 MB
- Truss_3rd_Module_VESA_mount_adapter.stl STL · 5,7 MB
- Truss_3rd_Module_VESA_Mount_Part1.stl STL · 582 KB
- Truss_3rd_Module_VESA_Mount_Part2.stl STL · 170 KB
- Truss_3rd_Module_VESA_Mount_Part3.stl STL · 166 KB
- Truss_3rd_Module_VESA_Mount_Part4.stl STL · 629 KB
- Truss_3rd_Module_pin.stl STL · 833 KB
- Truss_3rd_Module_clip.stl STL · 304 KB
- Categoría
- Hogar
- Formatos
- 3MF, STL
- Descargas
- 817
- Publicado
Sobre este modelo

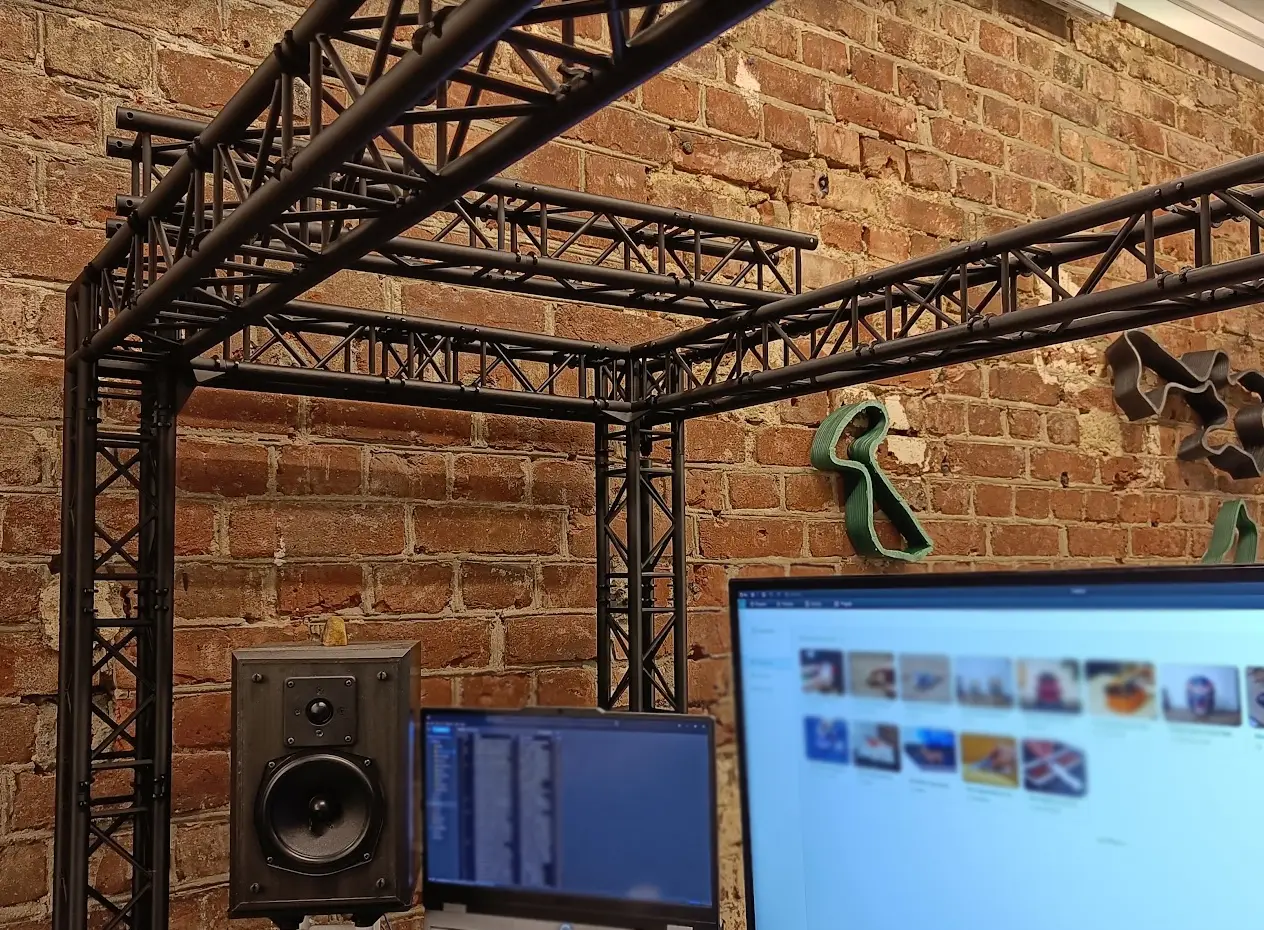

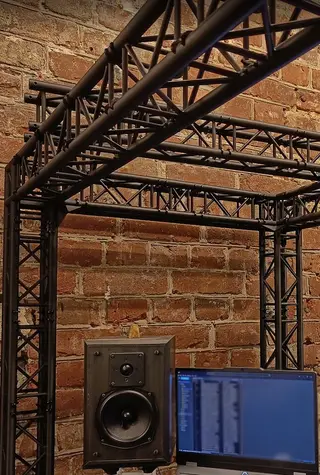

I wanted to make a scaled down version of truss rig like they use on auto show stands etc and so I did.

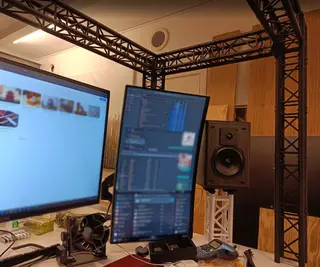

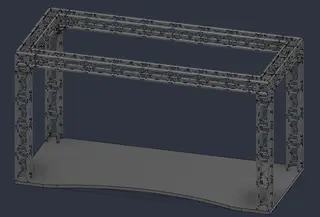

Instagram reel of the monitor mount and part of the rig https://www.instagram.com/reel/DdrCQFrMHen/ This takes a lot of time and filament to print, be sure to use 3dlac/hairspray on your bed if you're printing PLA The 3mf called Truss_3rd_scale_project_P1S takes over 3 days to print with my "safe settings". I have move speed set to 250mm/s because I have gotten step loss earlier The image of the assembly in Fusion takes about 250h to print and are about 6kg PLA for the trusses and 2kg of PETG for the pins and clips Strength: It has some, but dont expect a lot. I printed my modules with 2 walls and 10% gyroid infill, but 3 walls might be better if you're gonna mount heavy stuff to it
The pin and clip are printed in PETG
UPDATES 15.10.2026 - Added 2-way 90 degree corners. Remember to check the version A, B or C. B can be mirrored.
Descripción original del autor, publicada en Printables.
