Desk cable holder / cable organizer with clamp
por mgm86 en MakerWorld

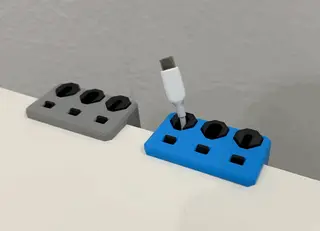

This desk cable holder keeps your cables organized and always within reach. Simply place your cable into one of the octagonal tubes and slide the tube into the holder — it automatically locks in place with a built-in spring mechanism.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a mgm86.
Archivos (22)
- Screw plus 30mm.stl STL · 1,6 MB
- Screw plus 20mm.stl STL · 1,6 MB
- Screw plus 10mm.stl STL · 1,6 MB
- Screw standard.stl STL · 849 KB
- Screw -10mm.stl STL · 855 KB
- Screw -15mm.stl STL · 854 KB
- Main - 1 Tube - 30mm variant.stl STL · 642 KB
- Main - 3 Tubes - 30mm variant.stl STL · 964 KB
- Main - 5 Tubes - 30mm variant.stl STL · 907 KB
- Main - 1 Tube - 50mm variant.stl STL · 637 KB
- Main - 3 Tubes - 50mm variant.stl STL · 681 KB
- Main - 5 Tubes - 50mm variant.stl STL · 884 KB
- Lid - 1 Tube.stl STL · 162 KB
- Lid - 3 Tubes.stl STL · 355 KB
- Lid - 5 Tubes.stl STL · 548 KB
- Tube - 3,5mm - 30mm.stl STL · 10 KB
- Tube - 5,5mm - 30mm.stl STL · 10 KB
- Tube - 7,5mm - 30mm.stl STL · 11 KB
- Tube - 3,5mm - 50mm.stl STL · 10 KB
- Tube - 5,5mm - 50mm.stl STL · 10 KB
- Tube - 7,5mm - 50mm.stl STL · 11 KB
- Spring slider.stl STL · 353 KB
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 26,656
- Publicado
Sobre este modelo

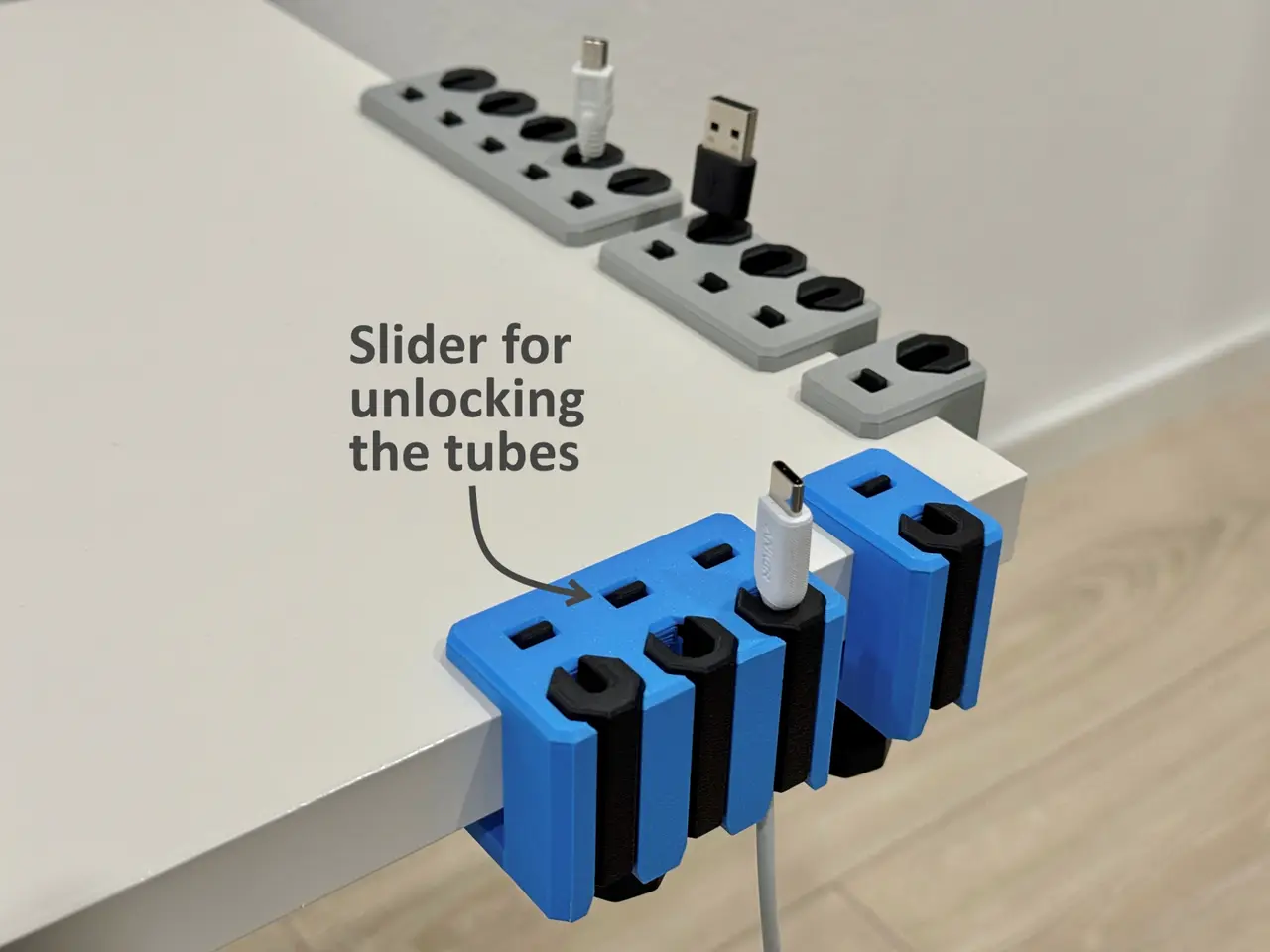

This desk cable holder keeps your cables organized and always within reach. Simply place your cable into one of the octagonal tubes and slide the tube into the holder — it automatically locks in place with a built-in spring mechanism. To remove a cable, just pull the small slider, allowing you to take out the tube together with the cable. The holder can be securely clamped to the table using a screw, making it easy to attach without any adhesives. A clean, practical, and modular solution for any workspace.
Variants:

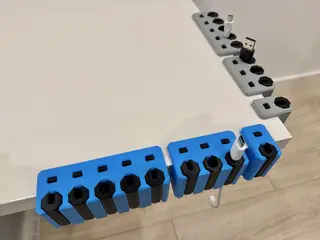

There are 6 variants:
- 1 cable (table top max. thickness: 30mm)
- 3 cables (table top max. thickness: 30mm)
- 5 cables (table top max. thickness: 30mm)
- 1 cable (table top max. thickness: 50mm)
- 3 cables (table top max. thickness: 50mm)
- 5 cables (table top max. thickness: 50mm)
Tubes:

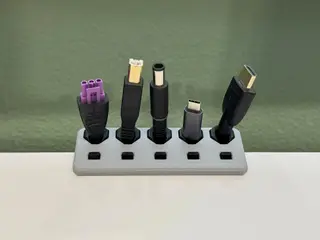

There are 3 variants for different cable diameter:
- cable diameter max: Ø3,5mm
- cable diameter max: Ø5,5mm
- cable diameter max: Ø7,5mm
Filament:
- Spring slider: It is tested with PLA Basic. PETG should work also fine. It is possible that softer materials such as PLA Matt or PLA Silk do not provide sufficient springiness.
- Main body: Tested also with PLA Basic. Be carefull with softer material like PLA matt or PLA silk. The main body can break with softer materials when you tightening the screw too much. If you choose a soft material, you could increase the walls and infill. However, I recommend PLA Basic, PETG, etc.
Assembly:
Overview:
Remove the supports and the small brim from the main part. Make sure that the area around the supports (red marked) is smooth so that no cables can be damaged. If not, smooth it down with a knife or fingernail.

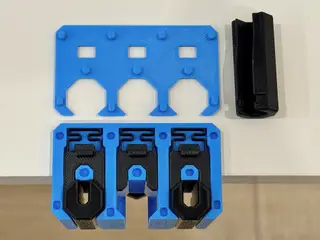

Insert the spring elements into the base body.
Press the cover onto it. Use superglue if necessary. However, the tolerances are designed so that it should work without glue.
Insert the tubes. The spring elements should lock automatically.
Add the screw.
Printing profiles:
The following print plates are available:
- Main body with cover
- Spring elements + screw
- Tube for max. 3.5 mm cable
- Tube for max. 5.5 mm cable
Descripción original del autor, publicada en MakerWorld.
