Definitive Collection of Battery Holders (Gridfinity, Stackable & Labelled)

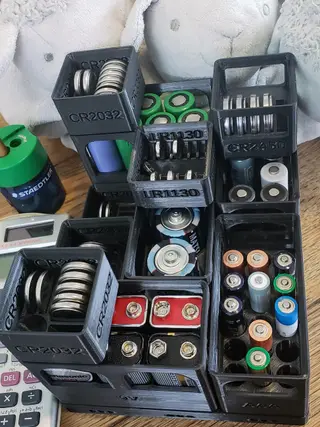

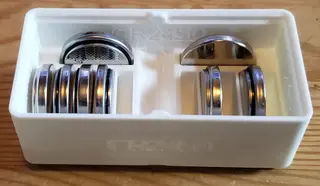

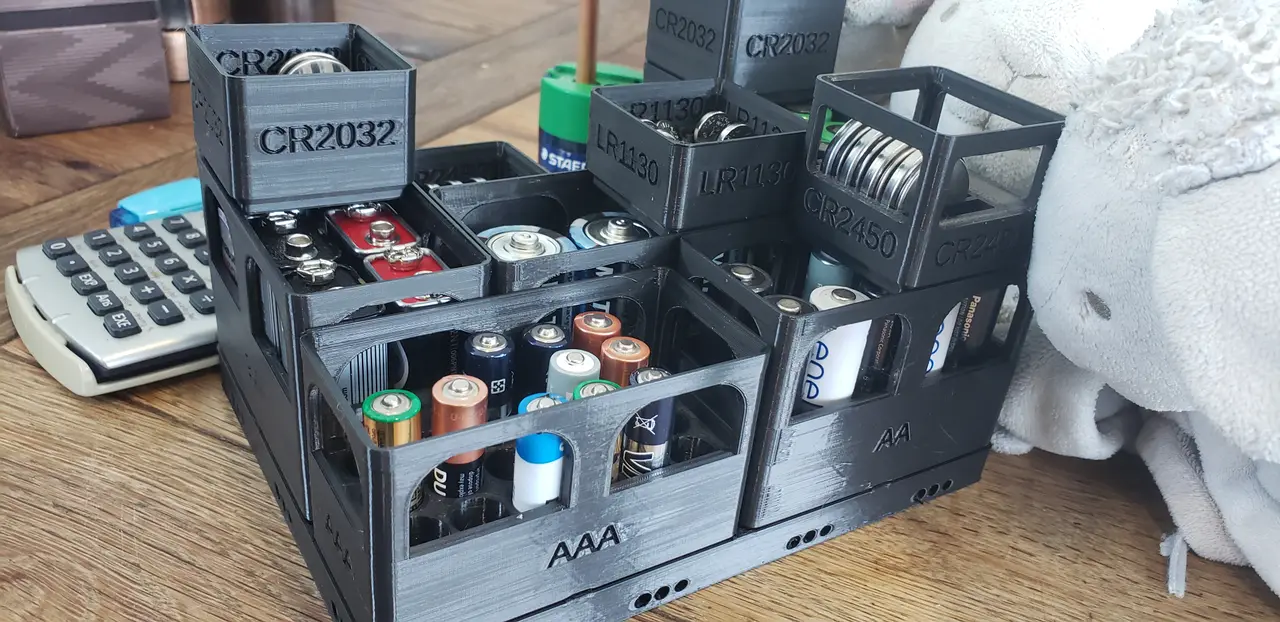

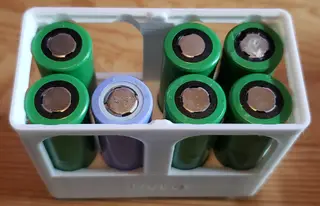

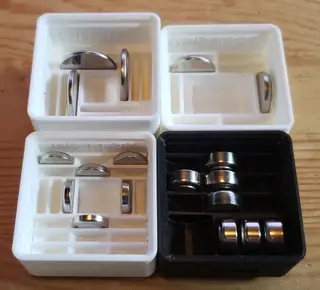

The containers are designed to be used independently or with Gridfinity baseplates. The bottom has magnet holes for magnetized Gridfinity baseplates. The containers when fully loaded are stackable. The battery model number is printed on the outsides and the insides whenever feasible. The design tries to find the best trade-off between container's capacity, usability, stackability and robustness. Gridfinity specifies container sizes with atomic increments of 42mm for the width (X) and the depth (Y), of 7mm for height (Z). For instance, a 1x2x4 Gridfinity container has sizes of 42mm x 84mm x 28mm. For large batteries, the following dimensions are available (1x1, 2x1 and 2x2). When the battery is too tall, there is also a low clearance version. This is intended to fit in shallow drawers. 1x1 and 2x1 containers can stack on top of most 2x2 containers. If that is not the case, you may use these stackable baseplates by Akio (thanks @avx for suggesting the idea). For cell batteries, there are 2 container sizes: 1x1 and 2x1. Let me know: - if you cannot find a container for your battery type, - if you encounter a fitting or usability problem, - if you have any suggestions.

List of containers Meaning of filename: ModelName - xNN - grid XYZ - vR.r where: - NN is the capacity - X is the X width gridfinity block count (multiply it by 42mm to get the size) - Y is the Y width gridfinity block count (multiply it by 42mm to get the size) - Z is the height grdifinity block count (multiply it by 7mm to get the size) - R.r is the version number

Battery TypeCapacityGridfinity Size 14250 aka CR14250 & ER14250 51x1x5 102x1x5 242x2x5 1850041x1x8 82x1x8 162x2x8 1865022x1x4 41x1x10 42x2x4 82x1x10 162x2x10 2170021x1x10 32x2x4 42x1x11 92x2x11 ½AA41x1x5 102x1x5 242x2x5 9V21x1x8 52x2x5 62x1x8 122x2x8 A23 aka 1181A, 144, 23A, 23AE, 3LR50, 8F10R, 8LR23, 8LR932, A23S, CA20, EL12, E23A, GP12A, GP23, GP23A, K23A, L1028, LR23A, LRV08, MN21, MN23, MS21, P23GA, RVO8, VR22, V23GA 91x1x5 212x1x5 482x2x5 A27 aka GP27A, MN27, L828, 27A, V27A, A27BP, G27A, 8LR732 161x1x5 362x1x5 802x2x5 AA51x1x8 102x1x8 242x2x8 AAA91x1x7 212x1x7 362x2x7 AAAA161x1x7 322x1x7 642x2x7 B12x1x4 21x1x10 32x2x4 42x1x10 122x2x10 C11x1x8 32x1x8 42x2x5 82x2x8 CR2 aka 15270, 15266, CR15H270, 5046LC 51x1x5 102x1x5 192x2x5 CR123A aka CR123, 123, 123A, 16340, 17345, 2/3A, BR2/3A, CR17345, CR23, DL123A, EL123A, K123LA, L123A, SF123A, VL123A 41x1x6 82x1x6 162x2x6 D11x1x10 12x1x6 22x1x10 22x2x6 52x2x10 N aka LR1, MN9100, AM5, GP910A 91x1x3 182x1x3 362x2x3

For CRxxxx, AGx and LRxx button cell holders, please go to these posts: CRxxxx Button Cell Battery Holders (Gridfinity, Stackable, Labelled) AGx Button Cell Battery Holders (Gridfinity, Stackable, Labelled) LRxx Button Cell Battery Holders (Gridfinity, Stackable, Labelled)

Credits: These works were based upon: Zach Freedman's initial designs of Gridfinity. "Gridfinity: Your Ultimate Modular Workshop is FREE!" Gridfinity Unofficial Community Overkill Gridfinity Baseplate by Kyle Warren

These works are written using: OpenScad Gridfinity OpenScad Model by Jamie Write.scad by Harlan Martin
