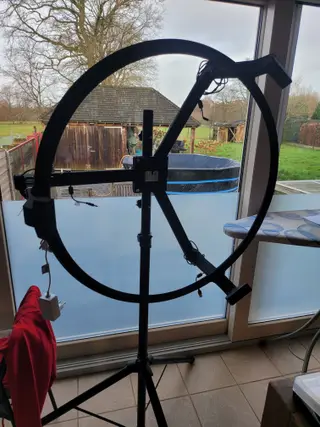

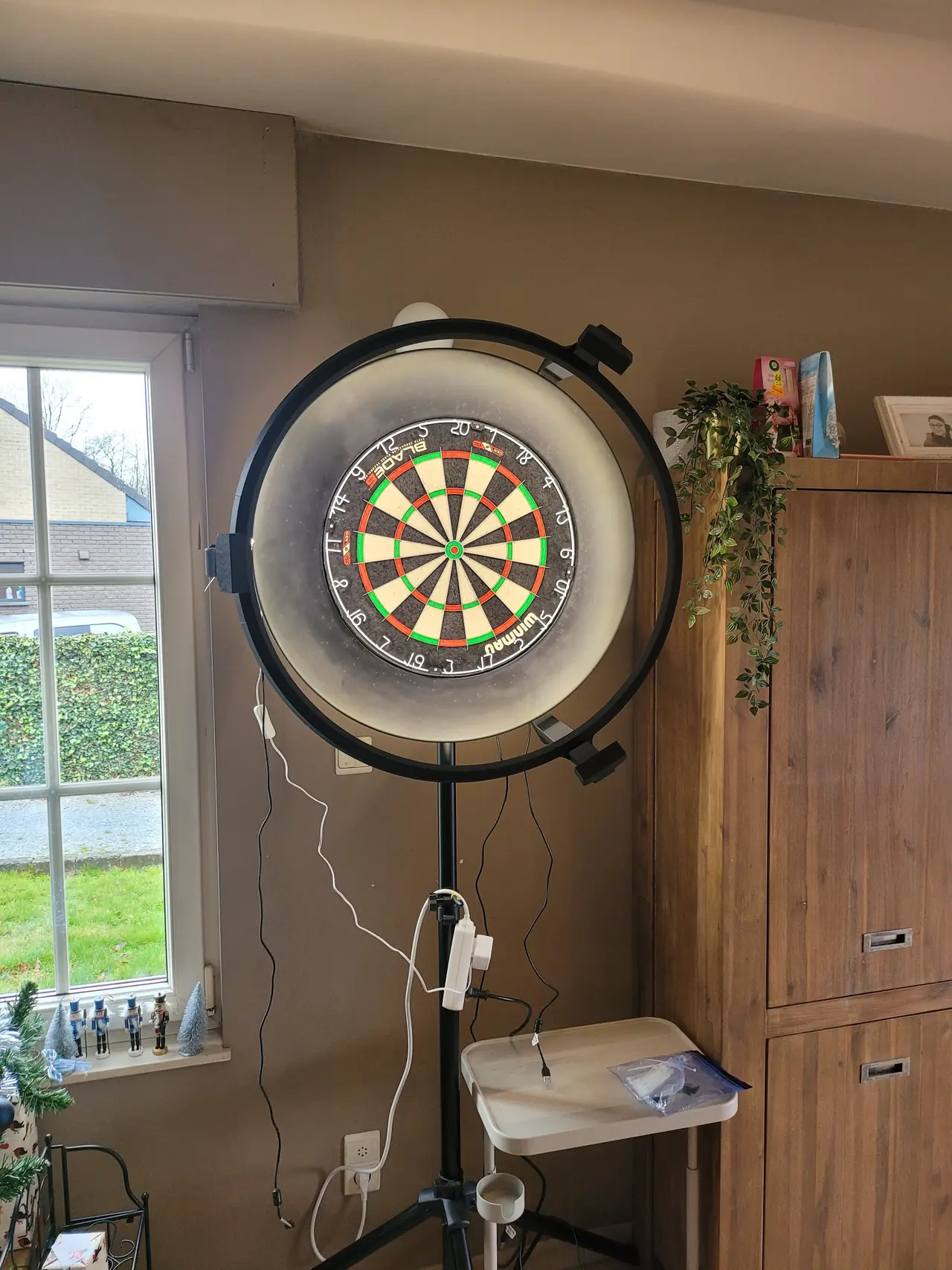

This is a mount for a darts system, it can be mounted on a tripod or against a wall.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Ben Engelen.
Archivos (7)
- Categoría
- Jardín
- Formatos
- STL, STEP
- Descargas
- 793
- Publicado
Sobre este modelo
This is a mount for the Autodarts scoring system by ROBBEL90.
https://cults3d.com/en/3d-model/gadget/steeldart-score-system-wie-autodarts
It has the exact dimensions so aligning everything is fairly easy. Can be printed on a 220x220 bed, supports are needed (but not much).

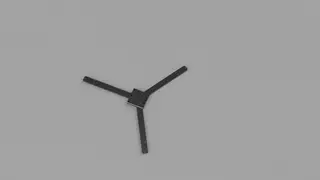

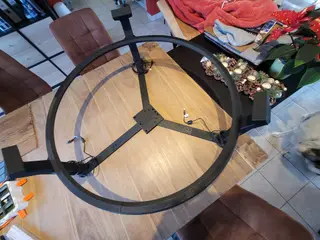

Printed parts: - 1 x BasePlate - 3 x ArmPart1 - 3 x ArmPart2

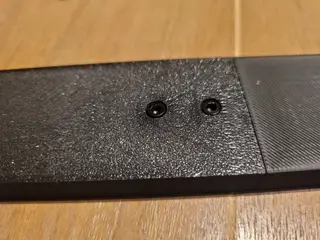

Other Parts needed: - 15 x Heatinsert M4x8.1 - 6 x Heatinsert M3x5 - 6 x M4x10 Screw - 9 x M4x12 Screw - 6 x M3x6 Screw\
UPDATE: - Added step file for easier remix
- Extra version of baseplate added : BasePlate_for_adapter
This one has holes to mount the dartboard adapter: https://www.thingiverse.com/thing:5751643 - Extra version of Armparts with extra holes for wall fixation : ArmPart1_extra_holes & ArmPart2_extra_holes
