CyberDeck V2
Welcome, to version 2 of my cyberdeck! This was designed to fit the generic 7" Raspberry Pi screen sold under many different brand names. I will link to the specific ones that I purchased.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesPersonal Use Eridani Industries
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Eridani I.
Archivos (8)

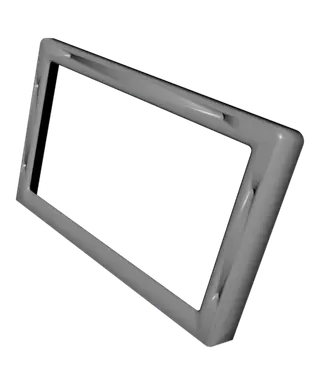

- frame_v2.stl STL · 129 KB
- lid_v2.stl STL · 257 KB
- logo_v2.stl STL · 595 KB
- main_body_v2.stl STL · 613 KB
- rear_panel_v2.stl STL · 282 KB
- acc_plate_v2.stl STL · 141 KB
- battery_mount_01.stl STL · 1,6 MB
- cyberdeckV2.obj OBJ · 5,5 MB
- Categoría
- Tecnología
- Formatos
- STL, OBJ
- Descargas
- 172
- Publicado
Sobre este modelo

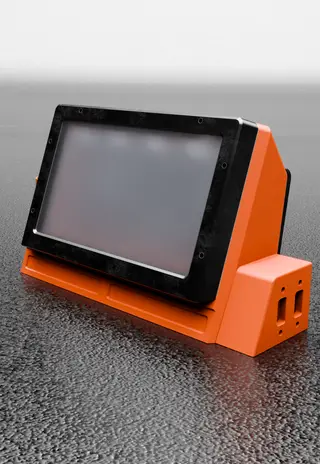

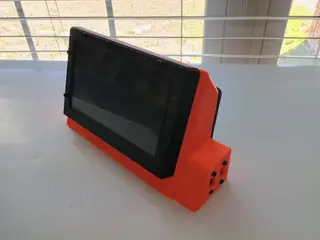

Welcome, to version 2 of my cyberdeck! This was designed to fit the generic 7" Raspberry Pi screen sold under many different brand names. I will link to the specific ones that I purchased.

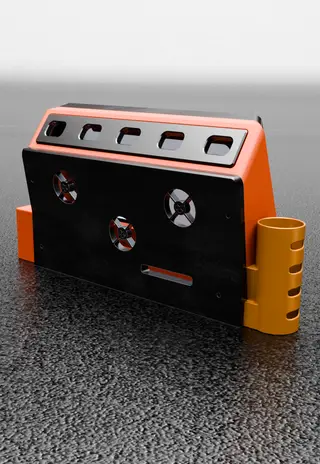

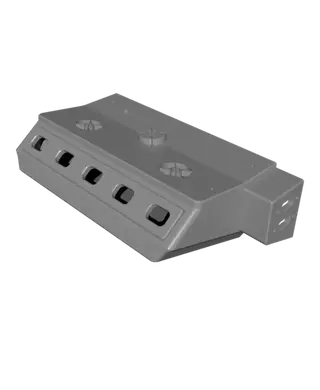

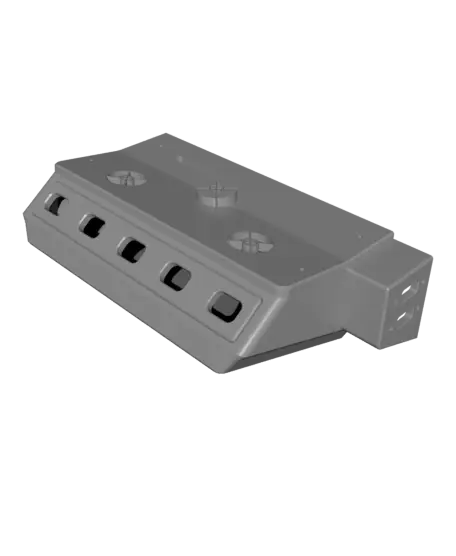

The top accessory plate snaps into place and is made to be swappable with different versions for specific surface mount attachments. I may make these if specific requests are made by the users. Examples of possible surface mount plugs for the raspberry pi include HDMI, audiojack, or more USB extensions.
All hardware consists of M3 screws. The sides have ports for 2x surface mount USB extensions.
Screen: Hosyond 7 inch ISP DSI https://www.amazon.com/dp/B0D3QB7X4Z?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
USB Ext: https://www.amazon.com/dp/B07C87FYLY?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
Battery: (I used double-sided tape to keep it secure inside the holder.) https://www.amazon.com/dp/B09Z6T7FQ8?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1
Raspberry Pi 4B fan: https://www.amazon.com/dp/B091L1XKL6?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1
Descripción original del autor, publicada en Thangs.
