Cyberbrick Siege Tank

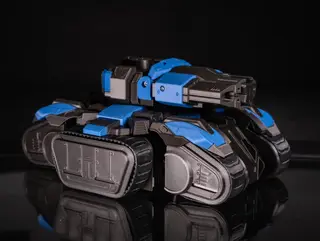

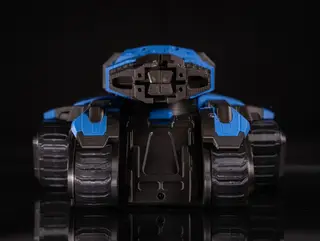

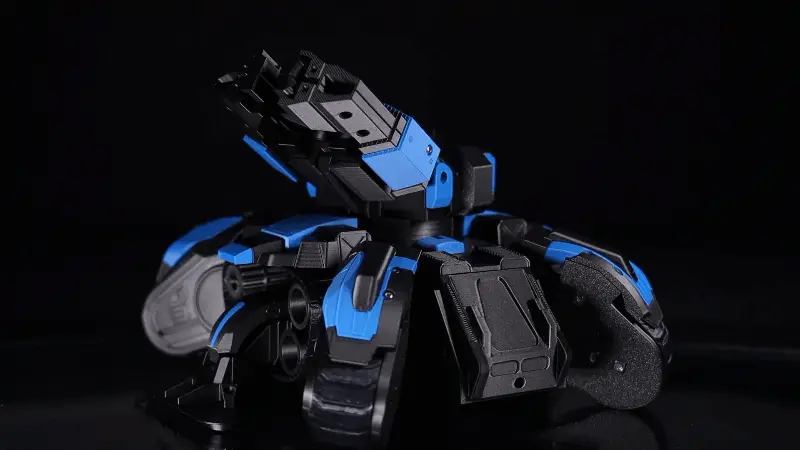

Cyberbrick Siege Tank Based on the Siege Tank from Starcraft and Starcraft II. Comes with driving, steering, pan and tilt of the turret, and its famouse Siege Mode! This is a very advanced model with a total of 128 separate printed parts and requires printing with TPU 85A or TPU 90A. Please only attempt to print and build this is you are prepared for a challenge. It take up to 72 hours to print and an estimated 3-5 hours to build.

To print this model, print the following: - One of each buildplate in the PLA profile except for only one of the two Side Track Options - If you go with the TPU Side Tracks, the Side Tracks from the TPU profile that fits you the most. - The Middle Tracks from the same profile No AMS needed.

This design comes with a build option for the Side Tracks. The options are either PLA printed immovable tracks which leads to improved driving and steering due to less friction towards the surface it is driving on and few parts needed or a TPU tracks option with rolling Side Tracks, which still hovers a slight distance above the driving surface as the tank would not be able to rotate if they were touching the ground. The main thing you get from the TPU tracks is the identical surface look between all tracks.

Both options have the printed parts added in the uploaded print profiles, aswell as separate build steps in the assembly guide.

Please decide on the build option before ordering parts.

Please refer to the table which items are required for your planned build option. All of these items and their maximum amount used at once are added to this models Bill of Materials.

Maker's Supply Items:TPU Side Tracks + Controller PLA Side Tracks + Controller TPU Side Tracks, No Controller PLA Side Tracks, No Controller

Cyberbrick Beginner Hardware Kit - ZK004 (1 Vehicle 1 Remote)1 1 - -

CyberBrick Standard Car Kit - ZK006 (1 Vehicle)- - 1 1

Extra Rechargeable Battery Upgrade Kit - ZL0031 1 - -

9g Continuous Rotation Digital Servo-360° (1PCS) - PG0023 3 3 3

N20 M3x25 Threaded Shaft 400rpm (1PCS) - LA0052 2 2 2

Micro Steel Deep Groove Ball Bearings 623ZZ (6PCS) - EA0086 2 6 2

M3 Carbon Steel Square Nut (20PCS) - AB0151 1 1 1

M3x23 SHCS Machine Screw (10PCS) -AA0032 2 2 2

M3x4x25 (5PCS) - AA1261 1 1 1

M2.5x6 BHCS Machine Screw (20PCS) - AA0131 1 1 1

D4x2 mm Round Magnet (20PCS) - CA0011 1 - -

Controls:
