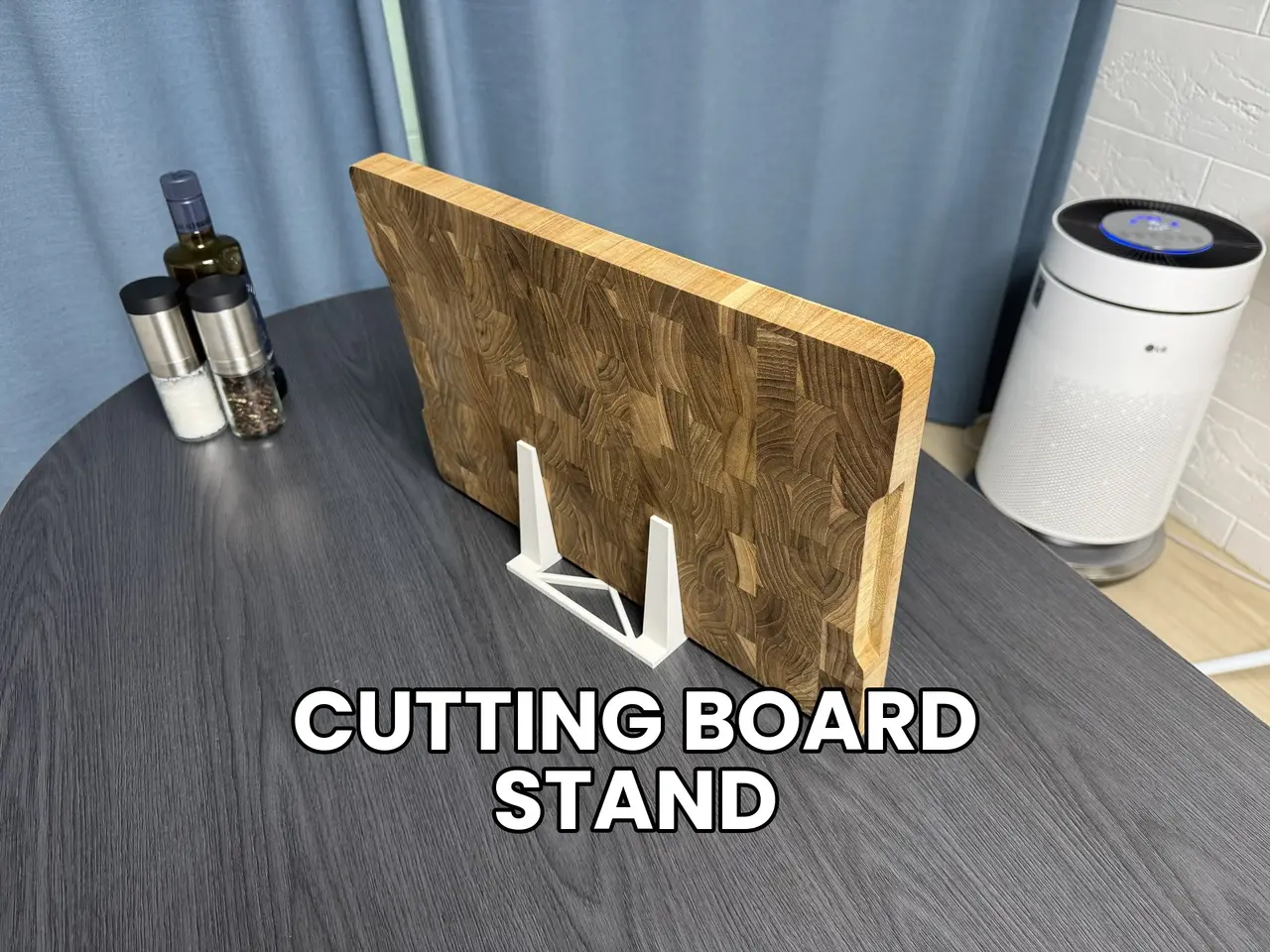

Cutting Board Stand

A bracket stand that holds a thick end-grain cutting board upright on the counter, instead of lying flat where moisture gets trapped underneath.

WHAT YOU GET - Two-pillar cradle with a taller rear pillar, so the board leans back at a stable angle - Notched pillars cradle the board's bottom edge so it cannot slide off - Triangulated open base keeps the print light while still resisting tipping - Base 160.1 x 78.8 mm, 115.7 mm tall at the rear pillar - One printed part, no fasteners

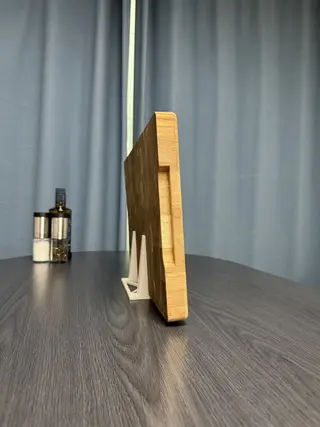

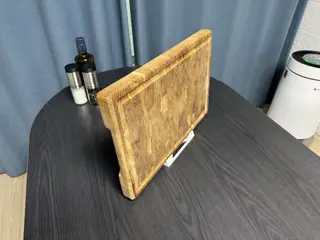

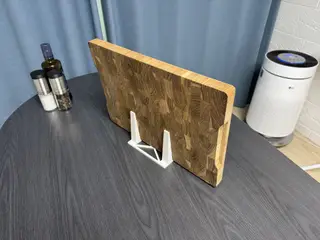

FIT CHECK - Boards around 30 mm thick (tested at 32 mm) - Any board light enough for PLA to carry - tested with a real end-grain board, see the photos - Set it on a flat, dry counter

PRINT SETTINGS

Bambu Lab P1S, stock 0.20mm Standard profile. - PLA (Bambu PLA Matte on the test print) - 0.20 mm layers / 2 walls / 15% infill / no supports - Fits a 256 x 256 mm bed; Bambu Studio project file included

SUPPORT ME

If this design was useful to you, you can buy me a coffee: https://buymeacoffee.com/seewaderu

NEED A DIFFERENT SIZE?

STEP file is included, so you can adjust the notch depth for a different board thickness. The full Onshape source is public too: https://cad.onshape.com/documents/3caf8b862f4c0e54fd8a4905/w/cc53c3cdd616637fb4c3d544/e/f66333a602394d6fe1b2f5f2

LICENSE: CC BY-NC
